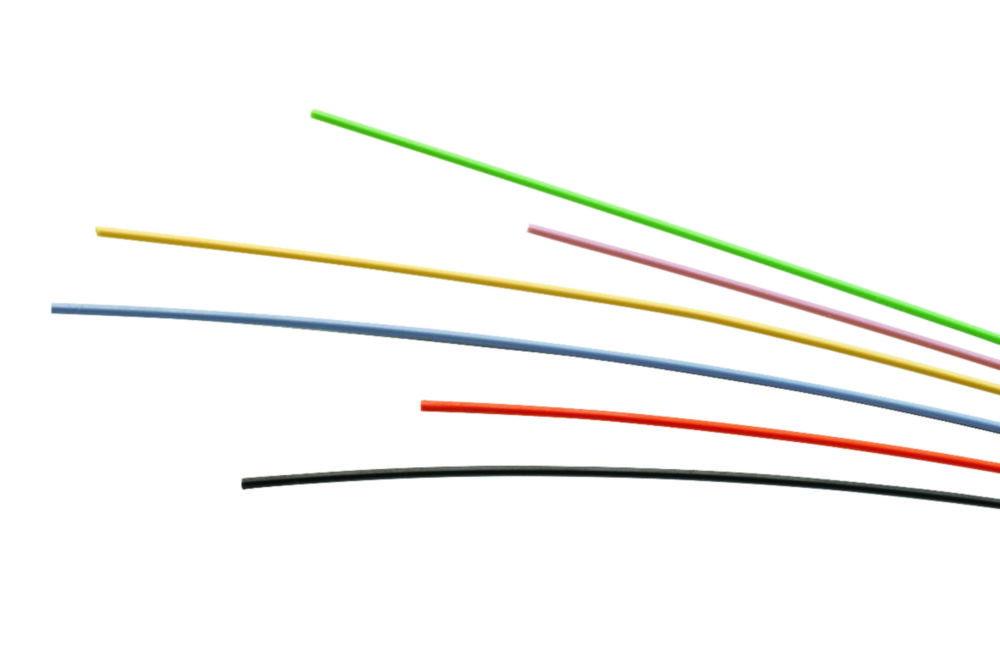

Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length
Product overview
The Trajan Scientific PEEK Tubing in yellow, measuring 360 µm OD x 150 µm (0.006") ID x 10' length, is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
Key Features:
- Brand: Trajan Scientific
- Material: PEEK (Polyether Ether Ketone)
- Outer Diameter: 360 µm
- Inner Diameter: 150 µm (0.006")
- Length: 10 feet (3 meters)
- Color: Yellow
- Maximum Pressure: 2000 psi (138 bar)
- pH Range: 2 to 14
- Maximum Operating Temperature: 100°C
- Applications: Suitable for HPLC, LCMS, and automation systems
This tubing is designed to ensure reproducibility in chromatographic flow rates and results, thanks to its smooth internal surface and tight tolerances. Its bio-inert and bio-compatible nature makes it suitable for a wide range of analytical applications.
Frequently Asked Questions
1. What is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length used for?
It is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
2. Is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length suitable for HPLC, LCMS, and automation systems?
Yes. It is designed for HPLC, LCMS, and automation systems, and offers an outer diameter of 360 µm and an inner diameter of 150 µm (0.006") to support this kind of work.
3. What outer diameter and inner diameter does the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length have?
It has an outer diameter of 360 µm, an inner diameter of 150 µm (0.006") and a length of 10 feet (3 meters), and is supplied under manufacturer part number 1304006002-10F.
4. What is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length made from and what features does it include?
It is made from PEEK (Polyether Ether Ketone). It also offers yellow and tube length 3 m.
5. How does the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length compare with the SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m)?
For tubing applications, the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length is differentiated by material PEEK (Polyether Ether Ketone) and outer diameter 360 µm. The SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m) from SCAT is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
Product Specifications
- HS Code #39173200
- ColourYellow
- Ext. Ø0.36 mm
- Int. Ø0.15 mm
- Length3 m
- MaterialPEEK
- Max. temp. resistance100 °C
- Operating pressure138 bar
- Temperature resistance100 °C
- UNSPSC41105108
Products related to this item (26)
product | Mfr # | Part # | Product name | Temperature
resistance | Material | Price | Availability | |
1302005001-10F | 4.662 785 | Trajan Scientific PEEK Tubing, Red 1.6 mm OD x 127 µm ID x 304.8 cm | 100 °C | PEEK | 4,732 | |||
1302007002-10F | 4.662 786 | Trajan Scientific PEEK Tubing, Yellow 1.6mm OD x 178µ ID x 304.8 cm | 100 °C | PEEK | 4,732 | |||
1302010003-10F | 4.662 787 | Trajan Scientific PEEK Tubing, Blue 1.6mm OD x 254µ ID x 304.8 cm | 100 °C | PEEK | 3,431 | |||
1302030005-10F | 7.911 249 | Trajan Scientific PEEK Tubing, Green 1/16 x 0.030 x 10' | 100 °C | PEEK | 3,431 | |||
1301015008-10F | 4.682 128 | Trajan Scientific PEEK Tubing Grey 1/32" OD x 0.015" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1301015000-10F | 4.682 141 | Trajan Scientific PEEK Tubing Natural 1/32" OD x 0.015" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1304004001-10F | 4.682 132 | Trajan Scientific PEEK Tubing Red, 360 µm OD x 100 µm (0.004") ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1304002000-10F | 4.682 130 | Trajan Peek-Tubing, Natural 360 µm OD x 50 µm (0.002") ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1303062000-10F | 4.682 135 | Trajan Scientific PEEK Tubing Natural 1/8" OD x 0.062" ID x 10' Length | 100 °C | PEEK | 7,007 | |||
1302002500-10F | 4.682 137 | Trajan Scientific PEEK Tubing Natural 1/16" OD x 0.0025" ID x 10' Length | 100 °C | PEEK | 4,732 | |||
1302040000-10F | 4.682 124 | Trajan Scientific PEEK Tubing Natural 1/16" OD x 0.040" ID x 10' Length | 100 °C | PEEK | 3,431 | |||
1304005005-10F | 4.682 133 | Trajan Scientific PEEK Tubing Green, 360 µm OD x 125 µm (0.005") ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1301004006-10F | 4.682 140 | Trajan Scientific PEEK Tubing, Black 1/32" OD x 0.004" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1302020004-10F | 7.983 379 | Trajan Scientific PEEK Tubing, Orange 1/16" OD x 0.020" ID x 10' Length | 100 °C | PEEK | 3,431 | |||
1303080000-10F | 4.682 136 | Trajan Scientific PEEK Tubing, Natural 1/8" OD x 0.080" ID x 10' Length | 100 °C | PEEK | 7,007 | |||
1302004006-10F | 4.682 120 | Trajan Scientific PEEK Tubing, Black 1/16" OD x 0.004" ID x 10' Length | 100 °C | PEEK | 4,732 | |||
1304003006-10F | 4.682 131 | Trajan Scientific PEEK Tubing, Black 360 µm OD x 75 µm (0.003") ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1302030001-10F | 4.682 123 | Trajan Scientific PEEK Tubing, Red 1/16" OD x 0.030" ID x 10' Length | 100 °C | PEEK | 3,431 | |||
1301020004-10F | 4.682 129 | Trajan Scientific PEEK Tubing, Orange 1/32" OD x 0.020" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1302013004-10F | 4.682 121 | Trajan Scientific PEEK Tubing Orange 1/16 Inch OD | 100 °C | PEEK | 3,431 | |||
1301007002-10F | 4.682 126 | Trajan Scientific PEEK Tubing, Yellow 1/32" OD x 0.007" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1301010003-10F | 4.682 127 | Trajan Scientific PEEK Tubing, Blue 1/32" OD x 0.010" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1302015000-10F | 4.682 138 | Trajan Scientific PEEK Tubing, Natural 1/16" OD x 0.015" ID x 10' Length | 100 °C | PEEK | 3,431 | |||
1301002500-10F | 4.682 139 | Trajan Scientific PEEK Tubing, Natural 1/32" OD x 0.0025" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1301005001-10F | 4.682 125 | Trajan Scientific PEEK Tubing, Red 1/32" OD x 0.005" ID x 10' Length | 100 °C | PEEK | 4,876 | |||
1302015008-10F | 4.682 122 | Trajan Scientific PEEK Tubing, Grey 1/16" OD x 0.015" ID x 10' Length | 100 °C | PEEK | 3,431 |
