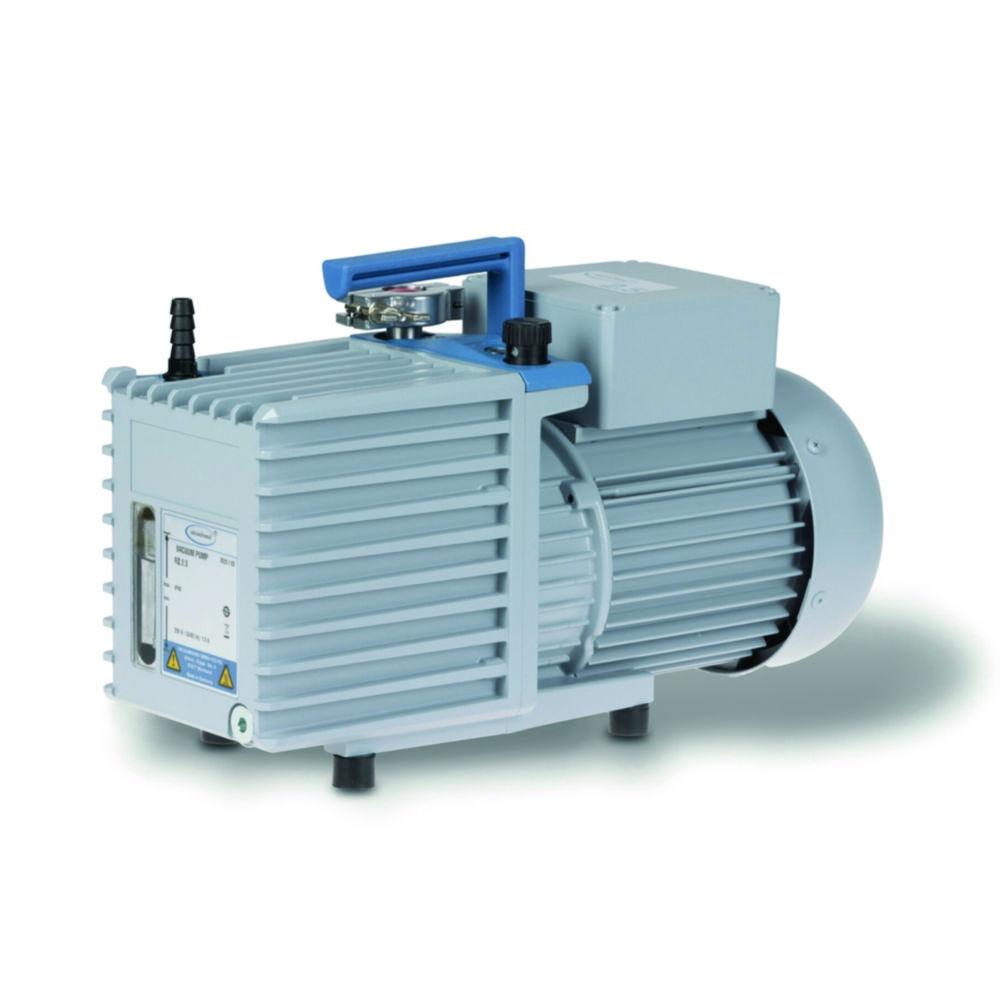

Vacuubrand Rotary Vane Pump RZ 2.5 Two-Stage, Small Flange with Hose Nozzle DN 10 mm for Inlet, 230 V / 50-60 Hz, UK/IN Mains Cable
Product overview
The Vacuubrand Rotary Vane Pump RZ 2.5 Two-Stage is designed for high-efficiency vacuum applications in laboratory environments. Featuring a two-stage configuration, this pump offers deep vacuum performance and reliability. The small flange with hose nozzle DN 10 mm allows easy integration with laboratory systems, while the UK/IN mains cable ensures safe and compatible power connection for 230 V / 50-60 Hz systems.
Key Features:
- Brand: Vacuubrand
- Model: Rotary Vane Pump RZ 2.5 Two-Stage
- Stages: Two-stage design for improved vacuum depth
- Flange: Small flange with hose nozzle DN 10 mm for easy connection
- Voltage: 230 V / 50-60 Hz
- Power Cable: UK/IN mains cable for safe connection
- Application: Suitable for laboratory vacuum tasks requiring high efficiency
Scope of Supply:
- Rotary vane pump
- manual
This Vacuubrand rotary vane pump is the ideal solution for laboratories requiring reliable, deep vacuum performance with easy integration into existing systems.
Frequently Asked Questions
1. What is the Vacuubrand Rotary Vane Pump RZ 2.5 Two-Stage, Small Flange with Hose Nozzle DN 10 mm for Inlet, 230 V / 50-60 Hz, UK/IN Mains Cable used for?
It is designed for high-efficiency vacuum applications in laboratory environments. Featuring a two-stage configuration, this pump offers deep vacuum performance and reliability. The small flange with hose nozzle DN 10 mm allows easy integration with laboratory systems, while the UK/IN mains cable ensures safe and compatible power connection for 230 V / 50-60 Hz systems.
2. Is this product suitable for laboratory vacuum tasks requiring high efficiency?
Yes. It is designed for laboratory vacuum tasks requiring high efficiency, and offers a voltage of 230 V / 50-60 Hz to support this kind of work.
3. What voltage does this product have?
It has a voltage of 230 V / 50-60 Hz.
4. What stages and flange does this product offer?
It offers two-stage design for improved vacuum depth, small flange with hose nozzle DN 10 mm for easy connection, UK/IN mains cable for safe connection and rotary vane pump.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth390 mm
- Dimensions (WxDxH)156 x 390 x 240 mm
- Flow rate38.33 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level48 db(A)
- Plug typeUK
- Power supply230 V, 50/60 Hz
- Rated capacity100 W
- TypeRZ 2.5
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight14.2 kg
- Width156 mm
Products related to this item (3)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
20798120 | 4.691 570 | Vacuubrand Rotary Vane Pump RZ 2.5 Two Stage 230V / 50-60Hz, CEE Mains Cable | EU | RZ 2.5 | €3272.85 | |||
20798121 | 4.691 571 | Vacuubrand Rotary Vane Pump RZ 2.5 Two Stage 230V / 50-60Hz, CH Mains Cable | CH | RZ 2.5 | €3272.85 | |||
20798126 | 4.691 577 | VACUUBRAND Rotary Vane Pump RZ 2.5, Two Stage, Inlet KF DN 16 / Hose Nozzle DN 10 mm, 220 to 230 V/50 to 60 Hz, 100 to 115 V/50 to 60 Hz, 120 V/60 Hz, US Mains Cable | US | RZ 2.5 | €3552.15 |
