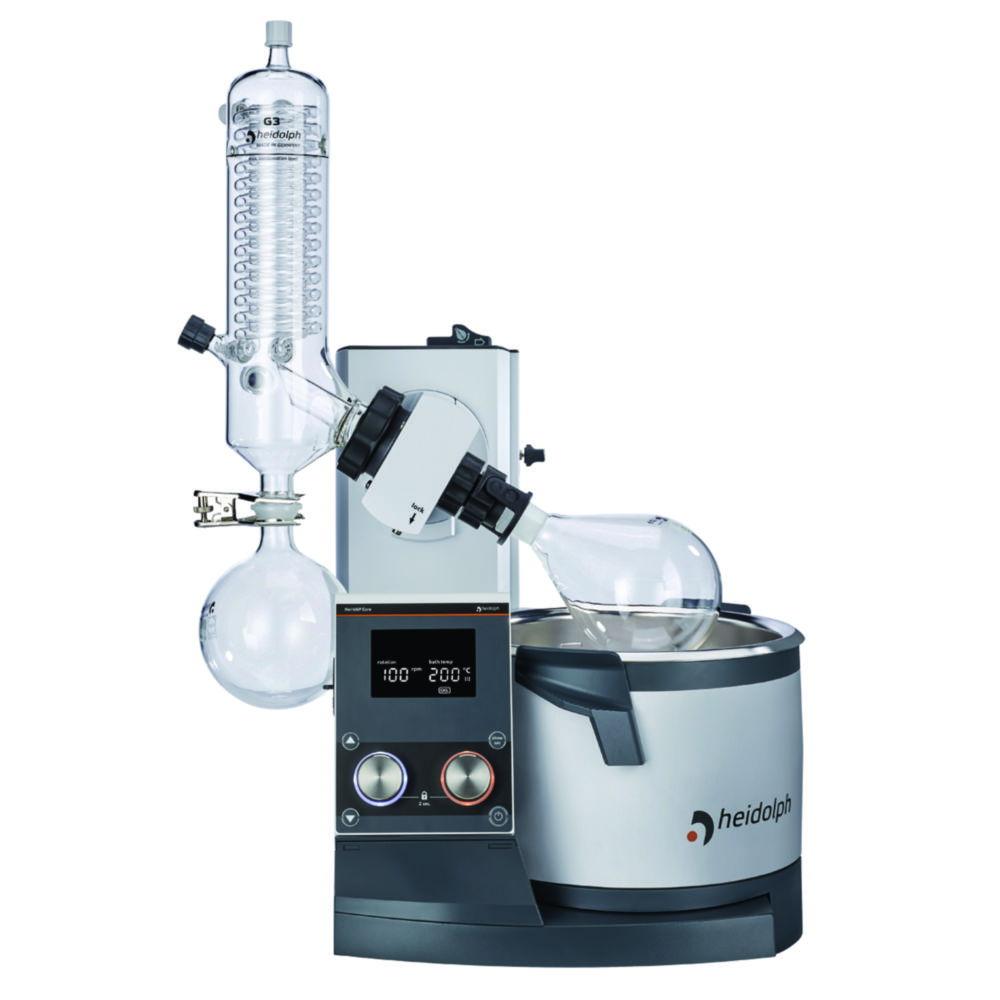

Heidolph Rotary Evaporator Hei-VAP Core ML G3B-CH Motor Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Depth
432 mm
Dimensions (WxDxH)
739 x 432 x 845 mm
Glassware
Coated
Height
845 mm
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l

NTD 225,497

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3B-CH Motor Lift (CH-Plug) is a high-performance system designed for efficient solvent evaporation in laboratory environments. Featuring advanced motor lift technology, this evaporator ensures precise control and reliable operation for a variety of applications, from distillation to concentration. Ideal for research and industrial laboratories that require consistent, reproducible results.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3B-CH with motor lift (CH-Plug)
  • Application: Solvent evaporation, distillation, and concentration in laboratories
  • Compatibility: Suitable for various laboratory distillation setups
  • Precision: Provides precise motor lift for accurate control during evaporation
  • Display: Clear digital display for monitoring current values, with a separate button to view set values
  • Controls: Two knobs for adjusting rotation speed and heating temperature, with LED ring light system for activity indication
  • Safety: Lock feature prevents inadvertent adjustments; residual heat indicator activates when temperature exceeds 50 °C
  • Standby Function: Halts all operations and lifts the evaporator flask from the heating bath (motor lift models only)
  • Ergonomics: Ergonomically optimized heating bath handles provide a secure and comfortable grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation with advanced sealing technology
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable control panel for operation outside fume hoods; optional cable extension available

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is a crucial tool for laboratories that require efficient and precise solvent evaporation, ensuring high-quality results in every process.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NTD 67,581
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223NTD 8,380
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NTD 5,274
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NTD 5,779
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949NTD 22,647
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NTD 4,840
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NTD 7,766
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B-CH Motor Lift (CH-Plug)

NTD 225,497

Inc. VAT

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL, Motor Lift (EU-Plug)

NTD 230,554

Inc. VAT

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3, Motor Lift (EU-Plug)

NTD 216,359

Inc. VAT

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B, Motor Lift (EU-Plug)

NTD 225,497

Inc. VAT

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL, Motor Lift (EU-Plug)

NTD 239,728

Inc. VAT

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3-UK, Motor Lift (UK-Plug)

NTD 216,359

Inc. VAT

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

NTD 230,554

Inc. VAT

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL-CH Motor Lift (CH-Plug)

NTD 230,554

Inc. VAT

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B-UK Motor Lift (UK-Plug)

NTD 225,497

Inc. VAT

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3-CH Motor Lift (CH-Plug)

NTD 216,359

Inc. VAT

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-CH Motor Lift (CH-Plug)

NTD 239,728

Inc. VAT

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-UK Motor Lift (UK-Plug)

NTD 239,728

Inc. VAT

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
