Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
2200 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
UK

NTD 230,554

Inc. VAT

Available soon

Product description

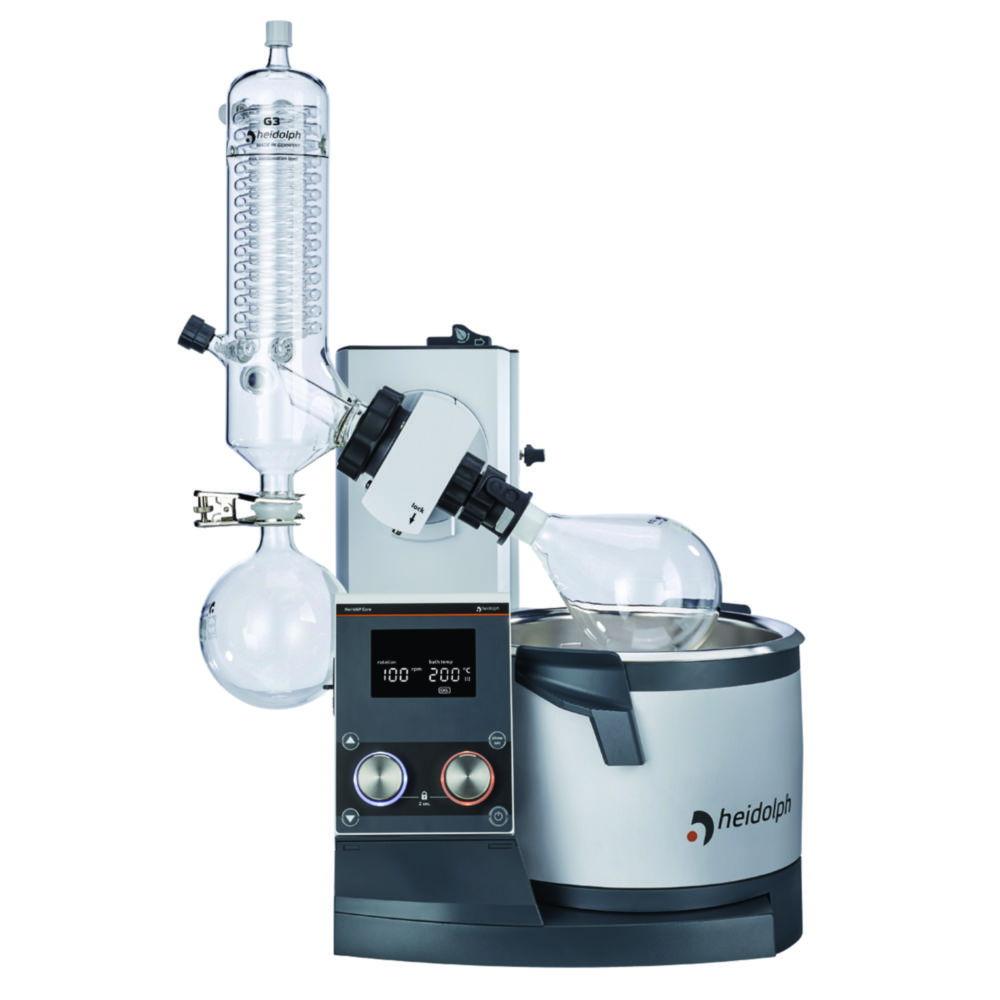

The Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug) is a high-performance rotary evaporator designed for efficient and reliable distillation in laboratory environments. Featuring a motorized lift and G3 XL vertical condenser with a large 2200 cm² cooling surface, this unit delivers enhanced evaporation rates and user-friendly operation.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3 XL-UK with motor lift
  • Condenser: G3 XL vertical condenser with 2200 cm² cooling surface
  • Display: Clear digital display showing actual and set values
  • Controls: Two separate knobs for rotation speed and heating bath temperature with LED ring light indication
  • Safety: Lock function to prevent accidental adjustments; residual heat warning above 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath
  • Design: Ergonomically optimized heating bath handles for secure handling; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Plug Type: UK
  • Optional Accessories: Cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, supplied condenser as indicated.

This rotary evaporator is ideal for laboratories seeking a reliable, efficient, and safe solution for solvent distillation and evaporation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675NTD 67,581
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
2000 ml41104800514-75000-007.047 223NTD 8,380
250 ml41104800514-72000-007.047 221NTD 5,274
500 ml41104800514-73000-007.047 222NTD 5,779
5000 ml41104800514-78000-007.626 949NTD 22,647
100 ml41104800514-71000-007.047 220NTD 4,840
50 ml41104800514-70000-006.206 660NTD 7,766
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

NTD 230,554

Inc. VAT

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
