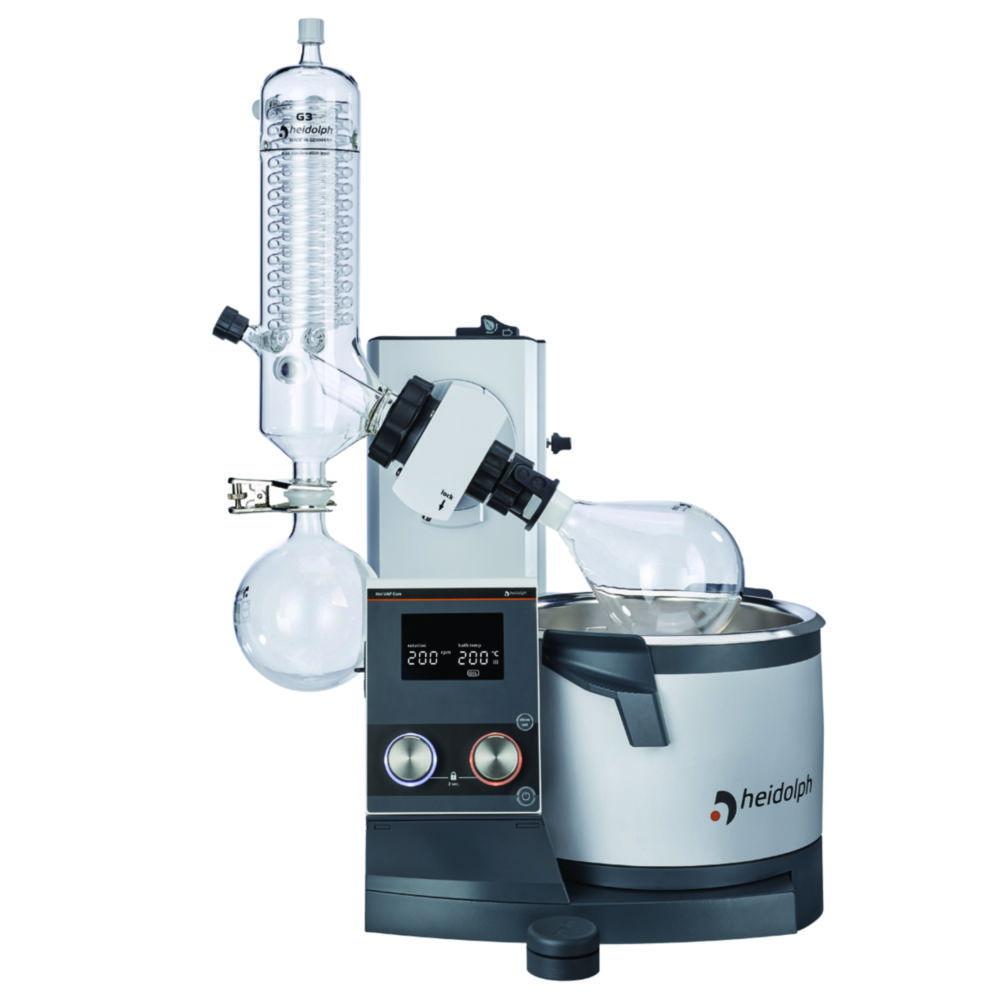

Representative Image

Heidolph Rotary Evaporator Hei-VAP Core HL G3 Hand Lift (EU-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

NTD 204,511

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3 Hand Lift (EU-Plug) is designed to offer reliable and precise solvent evaporation for laboratory applications. With a manual hand lift mechanism and EU-Plug compatibility, this model is ideal for distillation, concentration, and solvent recovery processes. It provides efficient performance while ensuring easy height adjustments and reliable operation in laboratory settings.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3 with hand lift (EU-Plug)
  • Application: Perfect for solvent evaporation, distillation, and concentration tasks
  • Lift Mechanism: Manual hand lift for precise height control
  • Compatibility: EU-Plug for European electrical systems
  • Display: Clear digital display for monitoring current values with a separate button for set values
  • Controls: Two separate knobs for rotation speed and heating temperature, featuring LED ring light indicators
  • Safety: Activated lock function prevents unintended adjustments; residual heat warning when temperature exceeds 50 °C
  • Ergonomics: Optimized heating bath handles for secure and comfortable grip
  • Adjustability: Immersion depth up to 155 mm and tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation with advanced sealing technology
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
  • Optional Features: Cable extension and detachable operating panel for use outside fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph rotary evaporator is an excellent choice for laboratories that need consistent performance, safety features, and manual control for everyday solvent evaporation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675NTD 67,581
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
2000 ml41104800514-75000-007.047 223NTD 8,380
250 ml41104800514-72000-007.047 221NTD 5,274
500 ml41104800514-73000-007.047 222NTD 5,779
5000 ml41104800514-78000-007.626 949NTD 22,647
100 ml41104800514-71000-007.047 220NTD 4,840
50 ml41104800514-70000-006.206 660NTD 7,766
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core HL G3 hand lift (EU-Plug)

Manufacturer P/N

571-01300-00

Part Number

4.666 086

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL hand lift (EU-Plug)

Manufacturer P/N

571-01305-00

Part Number

4.666 087

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B hand lift (EU-Plug)

Manufacturer P/N

571-01310-00

Part Number

4.666 091

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01310-03

Part Number

4.666 113

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL hand lift (EU-Plug)

Manufacturer P/N

571-01315-00

Part Number

4.666 092

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3-UK hand lift (UK-Plug)

Manufacturer P/N

571-01300-03

Part Number

4.666 108

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3-CH hand lift (CH-Plug)

Manufacturer P/N

571-01300-04

Part Number

4.666 128

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01315-03

Part Number

4.666 114

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01310-04

Part Number

4.666 133

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01305-04

Part Number

4.666 129

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01315-04

Part Number

4.666 134

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01305-03

Part Number

4.666 109

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-US hand lift (US-Plug) 115V 50/60Hz

Manufacturer P/N

571-01310-01

Part Number

6.492 697

Manufacturer

Heidolph

Cooling surface

1400 cm²
