Representative Image

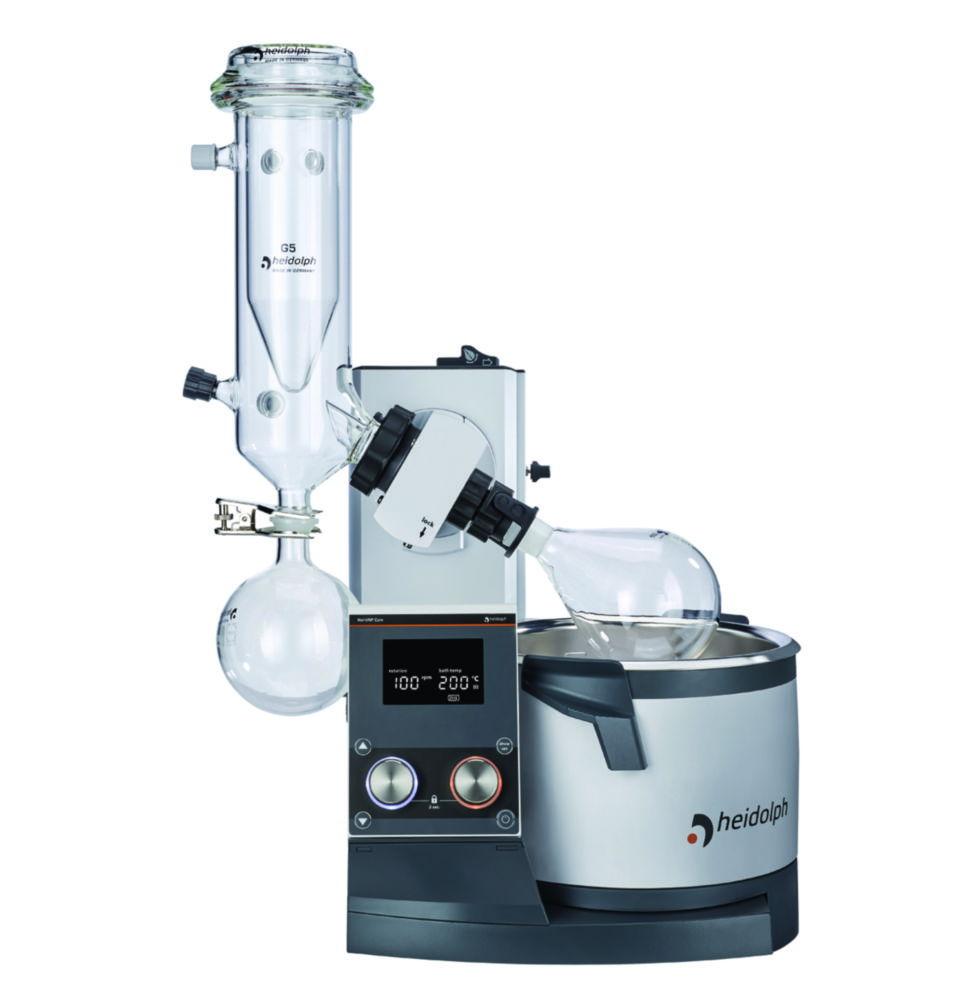

Heidolph Rotary Evaporator Hei-VAP Core ML G5B, Motor Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
EU

NTD 268,913

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G5B with motor lift is engineered for efficient and safe distillation processes. Equipped with a G5B glassware set and a smooth-operating motorized lift, it is ideal for routine applications in chemical, biological, and pharmaceutical labs.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G5B
  • Lift Mechanism: Motor lift for user convenience and consistent positioning
  • Glassware Configuration: G5B set designed for high-efficiency condensation
  • Plug Type: EU plug
  • Usage: Suitable for solvent recovery and concentration in laboratory workflows
  • Display: Clear digital display for monitoring current values, with separate button to display set values
  • Controls: Two separate operating knobs for adjusting rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Button to stop all functions and lift the evaporator flask out of the heating bath (motor lift models only)
  • Ergonomics: Heating bath with ergonomically optimized handles for secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation enabled by innovative sealing technology
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable operating panel for use outside closed fume hoods; optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

Built to Heidolph’s high-quality standards, the Hei-VAP Core ML G5B ensures reliability, user safety, and precise evaporation performance.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675NTD 67,581
20 l+90 °C569-00610-009.812 665NTD 58,623

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
2000 ml41104800514-75000-007.047 223NTD 8,380
250 ml41104800514-72000-007.047 221NTD 5,274
500 ml41104800514-73000-007.047 222NTD 5,779
5000 ml41104800514-78000-007.626 949NTD 22,647
100 ml41104800514-71000-007.047 220NTD 4,840
50 ml41104800514-70000-006.206 660NTD 7,766
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core ML G5B motor lift (EU-Plug)

Manufacturer P/N

572-01510-00

Part Number

4.666 103

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5 motor lift (EU-Plug)

Manufacturer P/N

572-01500-00

Part Number

4.666 098

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5-UK motor lift (UK-Plug)

Manufacturer P/N

572-01500-03

Part Number

4.666 120

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01510-03

Part Number

4.666 125

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5B-CH Motor lift (CH-Plug)

Manufacturer P/N

572-01510-04

Part Number

4.666 145

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5-CH motor lift (CH-Plug)

Manufacturer P/N

572-01500-04

Part Number

4.666 140

Manufacturer

Heidolph

Glassware

Without coating

More items to explore

Rotary Evaporators Hei-VAP Core, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B571-01510-004.666 093NTD 256,994
UKG5B571-01510-034.666 115NTD 256,994
UKG5571-01500-034.666 110NTD 236,983
CHG5571-01500-044.666 130NTD 236,983
CHG5B571-01510-044.666 135NTD 256,994
EUG5571-01500-004.666 088NTD 236,983

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUHei-VAP Core Basic571-34300-004.669 055NTD 328,042
CHHei-VAP Core Basic571-34300-044.703 311NTD 328,042
UKHei-VAP Core Basic571-34300-034.703 310NTD 328,042

Frequently asked questions

It is engineered for efficient and safe distillation processes. Equipped with a G5B glassware set and a smooth-operating motorized lift, it is ideal for routine applications in chemical, biological, and pharmaceutical labs.
