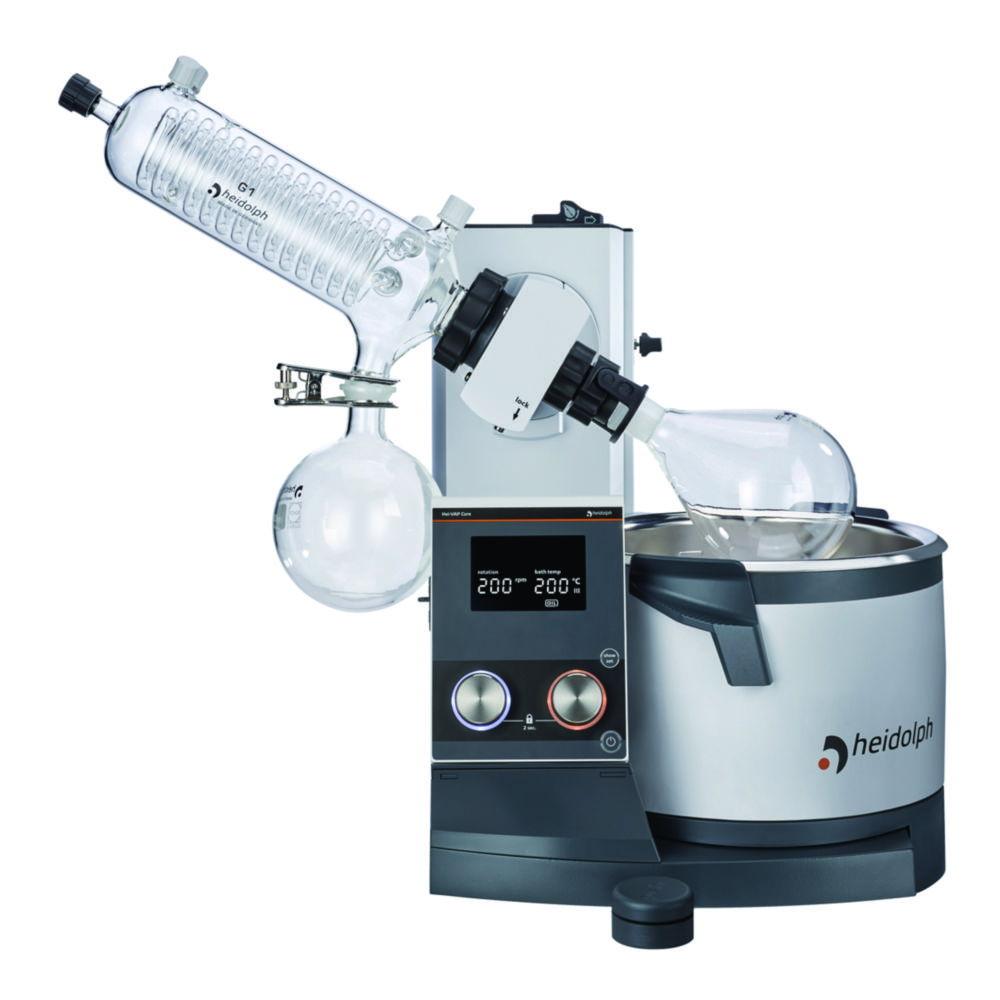

Heidolph Rotary Evaporator Hei-VAP Core HL G1B-CH Hand Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NTD 205,884

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G1B-CH Hand Lift (CH-Plug) is designed for efficient and reliable solvent evaporation in laboratory applications. Featuring a manual hand lift mechanism and CH-Plug compatibility, this model is ideal for distillation, concentration, and solvent recovery. With its precise manual control and robust Heidolph engineering, this evaporator is perfect for routine laboratory tasks that require dependable performance.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G1B-CH with hand lift (CH-Plug)
  • Application: Suitable for solvent evaporation, distillation, and concentration tasks
  • Lift Mechanism: Manual hand lift for precise and controlled height adjustment
  • Compatibility: CH-Plug for Swiss-compliant electrical systems
  • Display: Clear digital display for monitoring current values with separate button to show set values
  • Controls: Two separate knobs for adjusting rotation speed and heating temperature, with LED ring light indicators for visual feedback
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat warning when temperature exceeds 50 °C
  • Ergonomics: Optimized heating bath handles designed for comfort and safety
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation using advanced sealing technology
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
  • Optional Features: Cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator offers reliable and manual operation, making it a trusted choice for laboratories requiring precise evaporation and distillation processes.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675NTD 67,581
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223NTD 8,380
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221NTD 5,274
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222NTD 5,779
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949NTD 22,647
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220NTD 4,840
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660NTD 7,766
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core HL G1B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-CH Hand Lift (CH-Plug)

NTD 205,884

Inc. VAT

Manufacturer P/N

571-01110-04

Part Number

4.666 132

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1 hand lift with G1 diagonal cooler G1 (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1, Hand Lift, with G1 Diagonal Cooler G1 (EU-Plug)

NTD 196,059

Inc. VAT

Manufacturer P/N

571-01100-00

Part Number

4.666 085

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B, Hand Lift (EU-Plug)

NTD 205,884

Inc. VAT

Manufacturer P/N

571-01110-00

Part Number

4.666 090

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-CH Hand Lift (CH-Plug)

NTD 196,059

Inc. VAT

Manufacturer P/N

571-01100-04

Part Number

4.666 127

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift (UK-Plug)

NTD 205,884

Inc. VAT

Manufacturer P/N

571-01110-03

Part Number

4.666 112

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-UK Hand Lift (UK-Plug)

NTD 196,059

Inc. VAT

Manufacturer P/N

571-01100-03

Part Number

4.666 107

Manufacturer

Heidolph

Glassware

Without coating

Frequently asked questions

It is designed for efficient and reliable solvent evaporation in laboratory applications. Featuring a manual hand lift mechanism and CH-Plug compatibility, this model is ideal for distillation, concentration, and solvent recovery. With its precise manual control and robust Heidolph engineering, this evaporator is perfect for routine laboratory tasks that require dependable performance.
