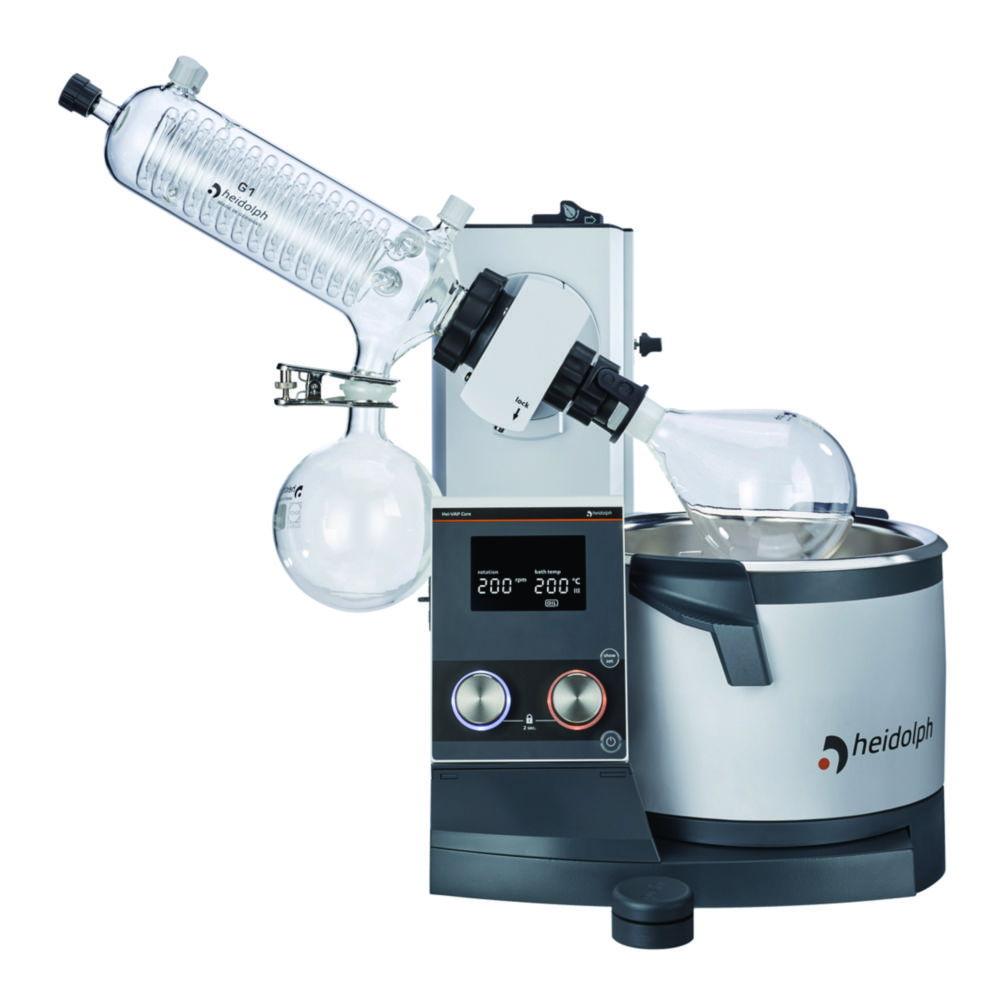

Heidolph Rotary Evaporator Hei-VAP Core HL G1 Hand Lift with G1 Diagonal Cooler G1 (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G1 with hand lift and G1 diagonal cooler is an excellent choice for laboratories requiring efficient solvent evaporation with precise temperature control. The hand lift feature provides ease of operation, while the G1 diagonal cooler ensures optimal cooling performance during distillation. The EU-plug version is ideal for European electrical systems, ensuring compatibility across labs in Europe. This high-performance system is perfect for both small and medium-scale laboratory applications.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G1
• Lift Mechanism: Hand lift for manual flask positioning and flexibility
• Cooling System: G1 diagonal cooler for efficient temperature control
• Plug Type: EU plug for European electrical systems
• Display & Controls: Clear digital display for monitoring current values and separate button to show set values
• Operation: Two separate knobs to adjust rotation speed and heating temperature with LED ring light indicators
• Safety & Convenience: Activated lock feature to prevent inadvertent changes; residual heat indicator (>50 °C)
• Ergonomics: Heating bath handles optimized for secure grip
• Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt angle adjustable from 20° to 80°
• Sealing Technology: Grease-free operation with innovative sealing
• Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
• Additional Features: Standby button stops all functions and lifts flask on motor lift models; optional cable extension with detachable operating panel for use outside fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

Heidolph's Hei-VAP Core HL G1 rotary evaporator offers precise control, effective cooling, and ease of use, making it a top choice for advanced laboratory distillation tasks.
