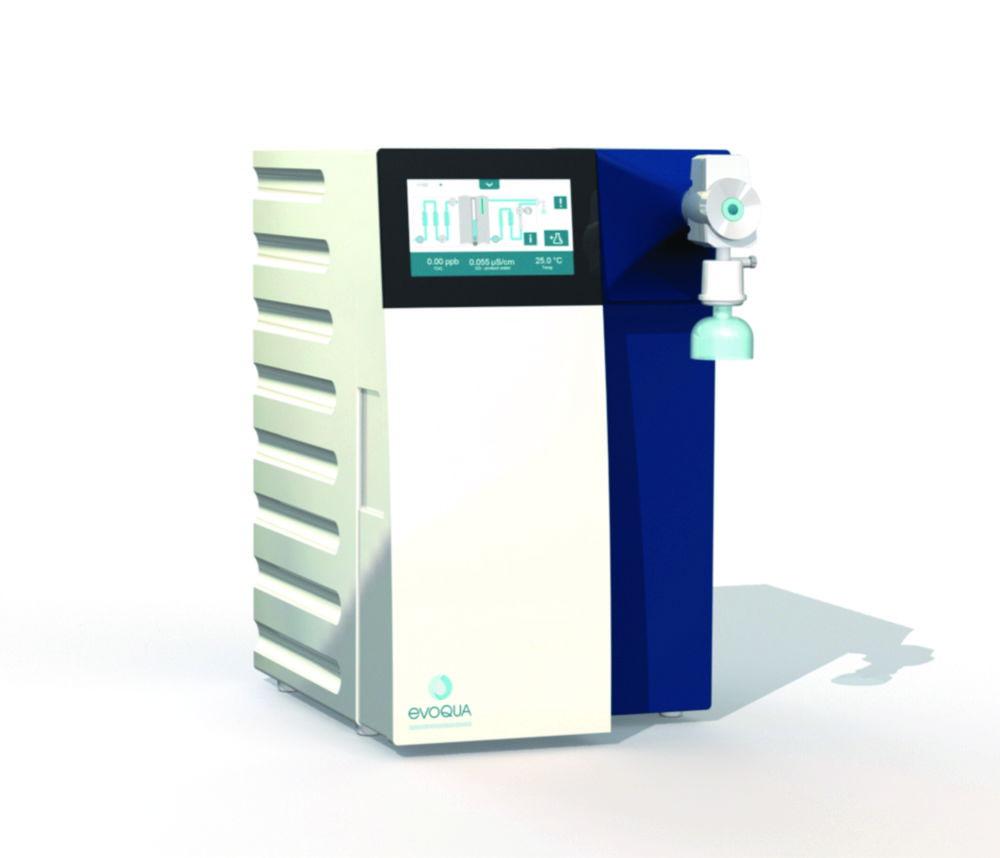

Evoqua Ultra Clear™ TP ED UV UF TM

The Evoqua Ultra Clear™ TP ED UV UF TM is an advanced ultrapure water purification system designed for laboratories requiring Type I water from deionized water sources. This system integrates ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring to ensure consistent high-quality water output. It is optimized for deionised water feed with conductivity less than 20 µS/cm and delivers up to 2 L/min of ultrapure water. The system includes user-guided, integrated disinfection and energy-saving modes, with temperature compensation that can be switched off. Wall mounting capability allows flexible installation.

Key Features:

• Brand: Evoqua
• Model: Ultra Clear™ TP ED UV UF TM
• Part Number: W3T276074
• Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
• TOC Level: < 3 ppb
• Endotoxin Content: < 0.001 EU/ml
• Flow Rate: Up to 2 L/min for ultrapure water
• Display: 7" multi-color touch screen for intuitive operation
• Connectivity: USB, SD card, printer, and Modbus interface
• Dimensions (W x D x H): 340 x 550 x 535 mm
• Weight: 23 kg
• Power Supply: 100–240 V, 50/60 Hz
• Additional Features: Integrated disinfection mode, energy-saving mode, temperature compensation can be switched off, wall mounting possible

Scope of Supply:

• Ultrapure water system
• 1 set of modules and filters

This system is ideal for applications requiring high-purity water, such as molecular biology, analytical chemistry, and microbiology, ensuring reliable and efficient performance.
