Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS

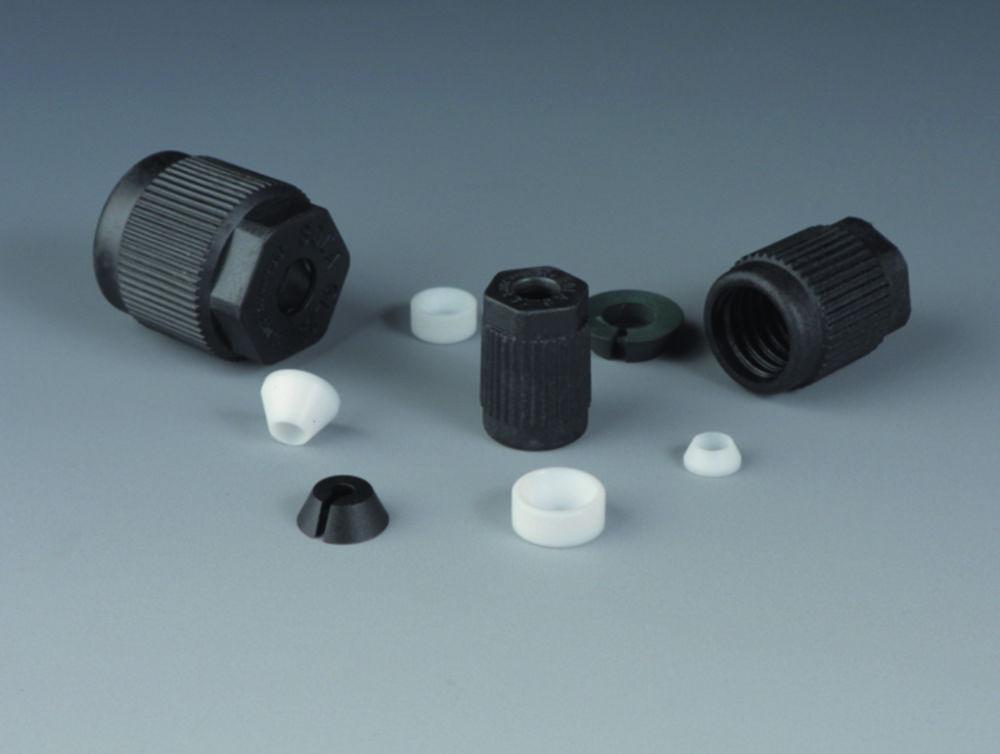

The Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS is designed for secure and reliable connections in laboratory setups. Featuring a black screw cap made of PPS and inner components including a clamping ring (PPS), sealing wedge, and sealing plate (both PTFE), along with an additional O-ring (FKM), this screw joint ensures excellent chemical resistance. The medium contacts only PTFE, making it ideal for applications requiring high purity and resistance to aggressive substances.

Key Features:

• Brand: Bohlender
• Thread Size: GL 14
• Outer Tubing Diameter: 8.0 mm
• Wrench Size (SW): 17 mm
• Material: PPS cap with PTFE sealing components
• Temperature Resistance: -50°C to +250°C
• Pressure Resistance: Up to 10 bar
• Applications: Suitable for connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels

This screw joint is an essential component for laboratories requiring durable and chemically resistant connections in various analytical and research applications.

Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS used for?

It is designed for secure and reliable connections in laboratory setups. Featuring a black screw cap made of PPS and inner components including a clamping ring (PPS), sealing wedge, and sealing plate (both PTFE), along with an additional O-ring (FKM), this screw joint ensures excellent chemical resistance. The medium contacts only PTFE, making it ideal for applications requiring high purity and resistance to aggressive substances.

2. Is the Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS suitable for connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels?

Yes. It is designed for connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels, and offers an outer tubing diameter of 8.0 mm and a wrench size (SW) of 17 mm to support this kind of work.

3. What outer tubing diameter and wrench size (SW) does the Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS have?

It has an outer tubing diameter of 8.0 mm, a wrench size (SW) of 17 mm and a pressure resistance of up to 10 bar, and is supplied under manufacturer part number D 628-82.

4. What is the Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS made from and what features does it include?

It is made from PPS cap with PTFE sealing components. It also offers GL 14 and -50°C to +250°C.

5. How does the Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS compare with the VITLAB Screw Joint GL 18 PP from VITLAB?

For connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels, the Bohlender model is the better choice, offering an outer tubing diameter of 8.0 mm, a wrench size (SW) of 17 mm and a pressure resistance of up to 10 bar. The VITLAB model offers GL 18, secure screw joint for laboratory applications and excellent resistance to various chemicals as an alternative, while the Bohlender model's GL 14 and -50°C to +250°C help make it a strong fit for connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels.
