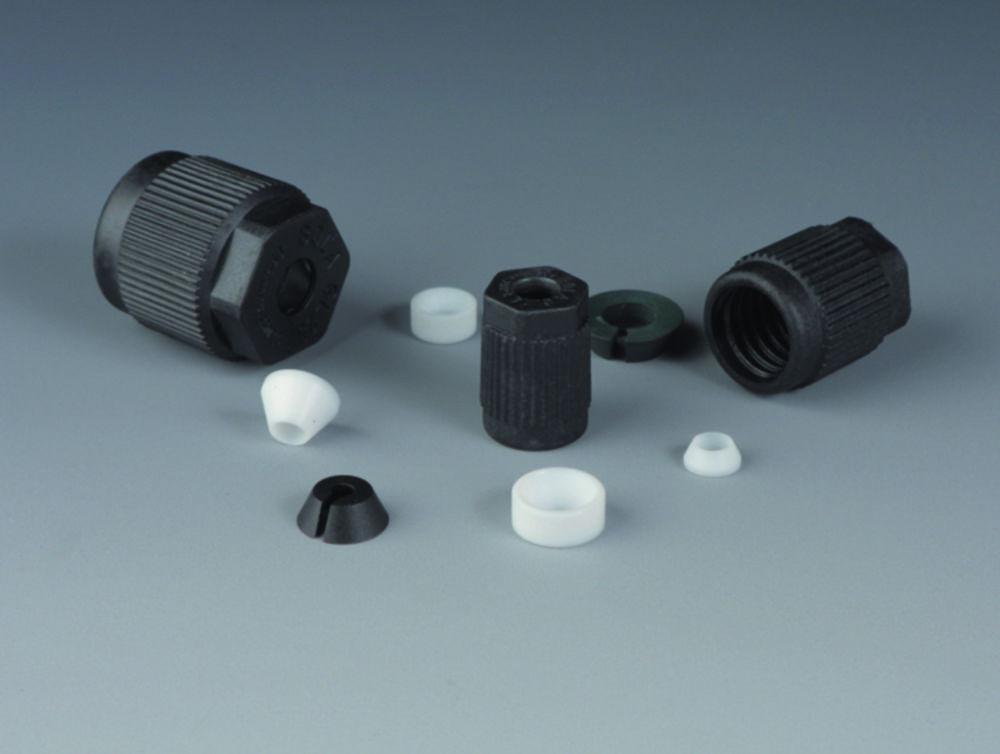

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS

The Bohlender HT Laboratory Screw Joint GL 14 is designed for high-temperature applications in laboratory environments. It provides a secure and chemically resistant connection for tubing and equipment. Featuring a GL 14 thread, this screw joint accommodates tubing with an outer diameter of 6.0mm and a wrench size (SW) of 17mm.

Key Features:

• Brand: Bohlender
• Thread Size: GL 14
• Compatible Tubing Outer Diameter: 6.0mm
• Wrench Size (SW): 17mm
• Material: Glass-fiber reinforced PPS (Polyphenylene Sulfide)
• Temperature Resistance: -50°C to +250°C
• Pressure Resistance: Up to approximately 10 bar at room temperature
• Application: Ideal for connecting glass tubes with PTFE tubing, plastic, glass, and metal tubes

The Bohlender HT Laboratory Screw Joint GL 14 is an essential component for laboratories requiring secure and high-temperature resistant connections.

Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS used for?

It is designed for high-temperature applications in laboratory environments. It provides a secure and chemically resistant connection for tubing and equipment. Featuring a GL 14 thread, this screw joint accommodates tubing with an outer diameter of 6.0mm and a wrench size (SW) of 17mm.

2. Is the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS suitable for connecting glass tubes with PTFE tubing, plastic, glass, and metal tubes?

Yes. It is designed for connecting glass tubes with PTFE tubing, plastic, glass, and metal tubes, and offers a compatible tubing outer diameter of 6.0mm and a wrench size (SW) of 17mm to support this kind of work.

3. What compatible tubing outer diameter and wrench size (SW) does the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS have?

It has a compatible tubing outer diameter of 6.0mm and a wrench size (SW) of 17mm, and is supplied under manufacturer part number D 628-74.

4. What is the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS made from and what features does it include?

It is made from glass-fiber reinforced PPS (Polyphenylene Sulfide). It also offers GL 14, -50°C to +250°C and up to approximately 10 bar at room temperature.

5. How does the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS compare with the Schuett-Biotec Threaded Test Tubes 150x16 mm with Plastic Screw Cap (Pack of 100)?

For tube applications, the Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS is differentiated by thread size GL 14 and compatible tubing outer diameter 6.0mm. The Schuett-Biotec Threaded Test Tubes 150x16 mm with Plastic Screw Cap (Pack of 100) from Schuett-Biotec is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
