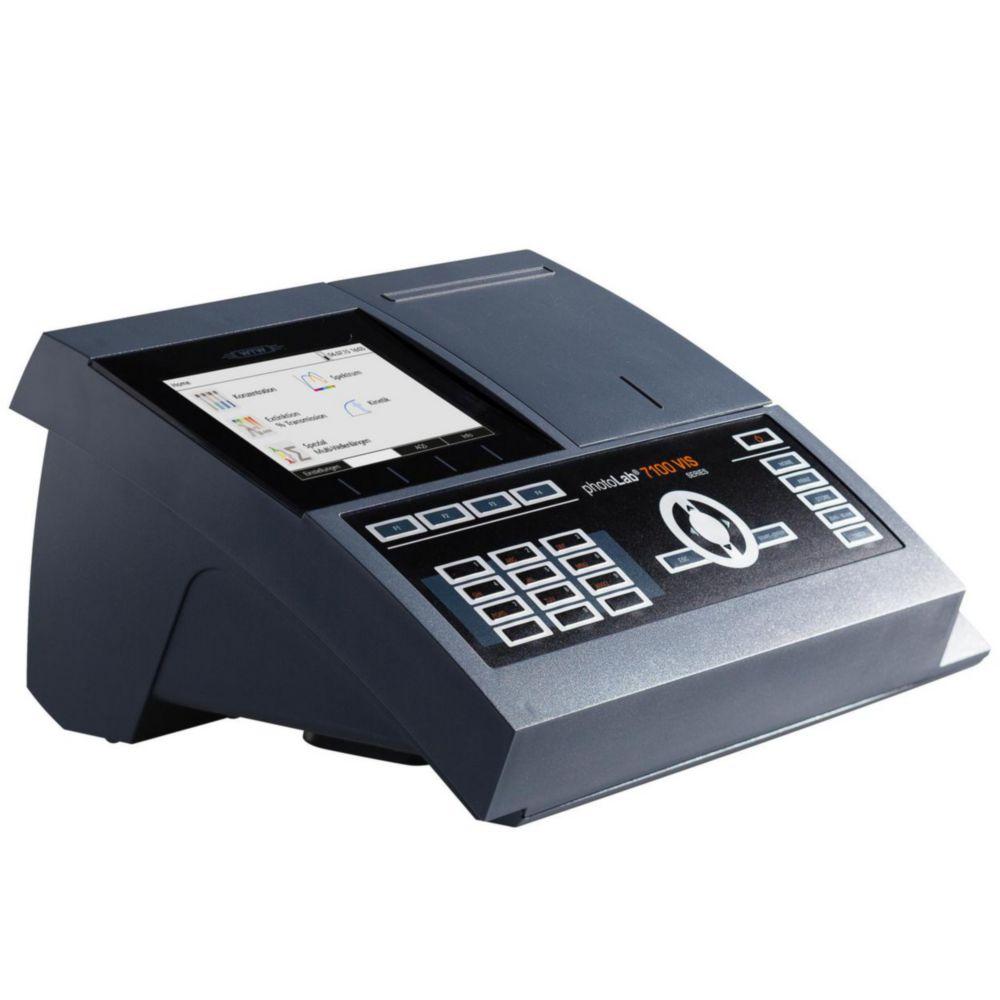

Xylem WTW Spectral Photometer PhotoLab 7100 VIS
Sold by: LabFriend Taiwan
Available Soon
Part #: 6.268 619Manufacturer #: 250203
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Xylem WTW Spectral Photometer PhotoLab 7100 VIS is a high-performance VIS photometer designed for routine and advanced water analysis. With a wavelength range of 320–1100 nm, it delivers precise and reliable results for a wide variety of applications in environmental, industrial, and research laboratories. Its intuitive user interface, built-in barcoded test recognition, and advanced data management capabilities streamline operations and enhance productivity.
Key Features:
- Brand: Xylem WTW
- Measurement Range: 320–1100 nm (VIS spectrum)
- Barcode Function: Automatic test recognition with barcoded cuvette tests
- User-Friendly Interface: Intuitive navigation with clear, high-resolution display
- Data Management: USB and SD card support for efficient data export
- Applications: Ideal for wastewater, drinking water, industrial process analysis
The PhotoLab 7100 VIS offers excellent precision and functionality, making it a trusted tool for reliable photometric measurements.
Product Specifications
- HS Code #90273000
- Accuracy±1 nm
- Accuracy1 nm
- Depth314 mm
- Dimensions (WxDxH)404 x 314 x 197 mm
- Power supply frequency50/60 Hz
- Height197 mm
- IlluminantsTungsten-halogen
- InterfacesUSB-A, USB-B, Ethernet
- IP codeIP 30
- Max. voltage240 V
- Measuring methodVIS
- Min. voltage100 V
- Optical systemSplit Beam
- Power supply100 ... 240 V, 50/60 Hz
- Scattered light<0.1 %T (340/408 nm)
- Spectral bandwidth4 nm
- TypephotoLab® 7100 VIS
- Type of auxiliary energyMains connection
- UNSPSC41115406
- Wavelength320 ... 1100 nm
- Weight4.5 kg
- Width404 mm
Downloads
- LabFriend 6.268 619 WTW photolab 7000 Series Software Brochure.pdfDownload
- LabFriend 6.268 619 WTW photolab 7000 Series Spectrophotometer Brochure.pdfDownload
- LabFriend 6.268 619 WTW photolab 7100 VIS Instruction Manual.pdfDownload
- LabFriend 6.268 619 WTW photolab 7600 Optical Reagent-Free (OPTRF) Methods.pdfDownload
- LabFriend 6.268 619 WTW photolab 7600 UV-VIS Instruction Manual.pdfDownload
- LabFriend 6.268 619 WTW photolab 7600_7100_6600_6100 Tests.pdfDownload
- LabFriend 6.268 619 WTW photolab color Software Instruction Manual.pdfDownload
- LabFriend 6.268 619 WTW photolab Data spectral Software Instruction Manual.pdfDownload
