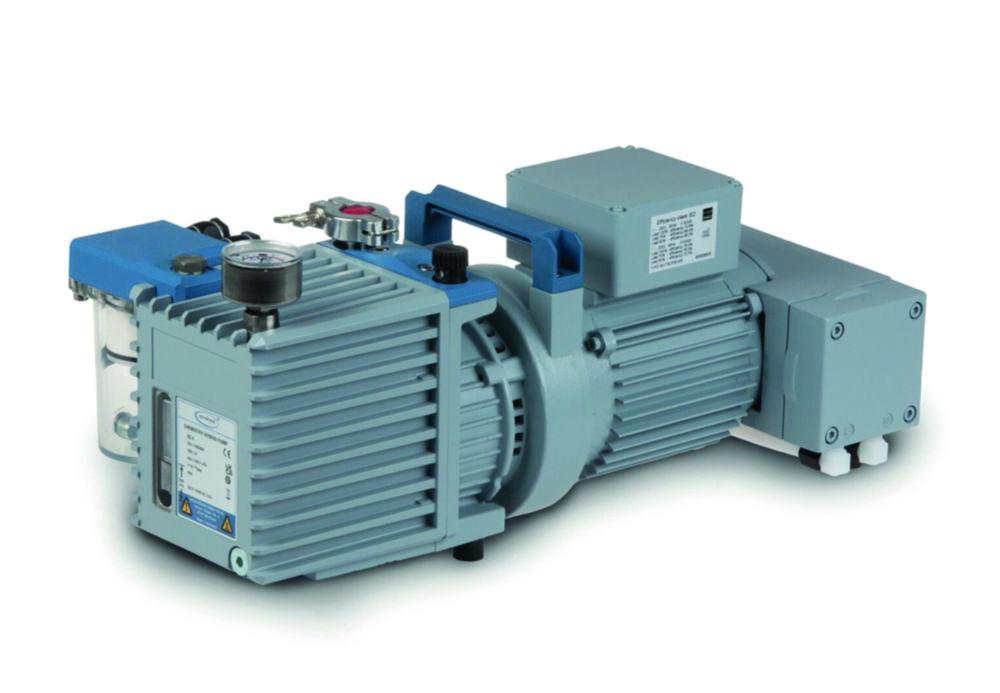

Vacuubrand Chemistry HYBRID Pump RC 6 230 V / 50-60 Hz, CH/CN Mains Cable

Max. voltage

Plug type

Power supply

Specifications

Compare models
Connection pressure side
DN 8-10 mm
Connection suction side
KF DN 16
Depth
302 mm
Dimensions (WxDxH)
526 x 302 x 226 mm
Flow rate
5.9 m³/h
Power supply frequency
50/60 Hz
Height
226 mm
IP code
IP 40
Max. oil filling
500 ml
Max. voltage
230 V

NTD 278,413

Inc. VAT

Available soon

Product description

The Vacuubrand Chemistry HYBRID Pump RC 6 230 V / 50-60 Hz, CH/CN Mains Cable is an advanced vacuum pump designed for high-performance applications in laboratory chemistry. Offering precise control and superior reliability, this pump is ideal for processes that require consistent vacuum levels. With a CH/CN mains cable, it ensures easy integration into laboratory setups with 230 V power supply, supporting efficient and smooth operations in various chemical processes.

Key Features:

  • Brand: Vacuubrand
  • Model: Chemistry HYBRID Pump RC 6
  • Voltage: 230 V / 50-60 Hz
  • Cable: CH/CN mains cable for easy connection
  • Application: Ideal for chemistry and laboratory vacuum applications
  • Performance: Two-stage rotary-vane pump with two-stage chemistry diaphragm for optimized corrosion resistance
  • Vacuum Range: Ultimate vacuum in the 10⁻³ mbar range
  • Maintenance: Low-maintenance design suitable for freeze-drying and other demanding processes

Scope of Supply:

  • Pump
  • Overload circuit breaker and mains cable (2 m)
  • Centering and clamping ring for inlet
  • Particulate filter
  • Operating instructions
  • Oil (bottle of 500 ml)

This Vacuubrand vacuum pump provides a reliable solution for chemistry laboratories requiring precise and stable vacuum performance across various applications.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081NTD 3,973
PVC34.9 mm206860634.714 084NTD 10,114
PVC38.1 mm206860654.714 085NTD 11,811
PVC15.9 mm206860614.714 082NTD 4,659
PVC22.3 mm206860624.714 083NTD 5,526

Compare similar models

Chemistry HYBRID pump RC 6 230 V / 50-60 Hz, CH/CN mains cable

Manufacturer P/N

20798561

Part Number

4.687 930

Manufacturer

VACUUBRAND​

Max. voltage

230 V

Chemistry HYBRID pump RC 6 230 V / 50-60 Hz, UK/IN

Manufacturer P/N

20798562

Part Number

4.670 386

Manufacturer

VACUUBRAND​

Max. voltage

230 V

Chemistry HYBRID pump RC 6 230 V / 50-60 Hz, CEE mains cable

Manufacturer P/N

20798560

Part Number

4.687 929

Manufacturer

VACUUBRAND​

Max. voltage

230 V

Chemical HYBRID pump RC 6 100-120 V / 50-60 Hz, US plug

Manufacturer P/N

20798563

Part Number

4.701 132

Manufacturer

VACUUBRAND​

Max. voltage

120 V
