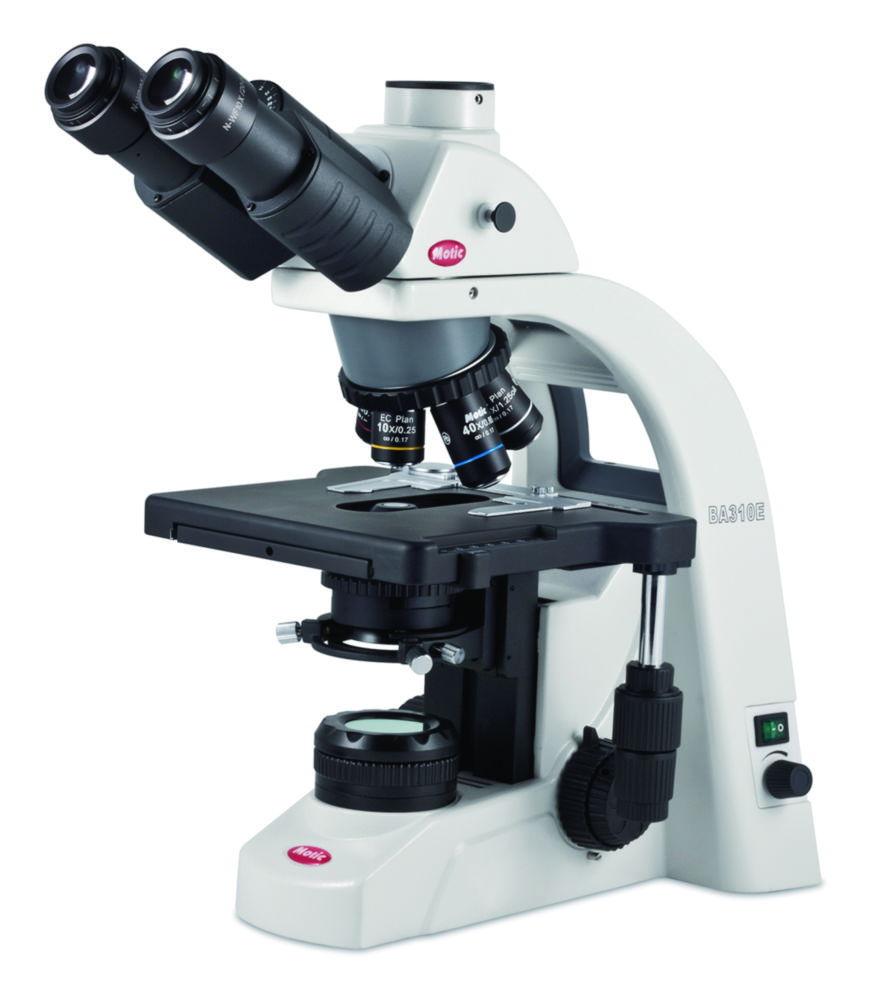

MOTIC Microscope BA310E Trinocular N-WF10X/20mm, Trinocular Tubus, Type Siedentopf

Brand:Motic

Tube

Specifications

Compare models
HS Code #
90118000
Condenser
Abbe 0.90 /1.25
Depth
400 mm
Dimensions (WxDxH)
220 x 400 x 400 mm
Height
400 mm
Inclination angle tube
30°
Interpupillary distance
48 ... 75 mm
Light type
LED
Magnification objectives
4x, 10x, 40x, 100x
Max. interpupillary distance
75 mm
Max. voltage
240 V

NTD 76,683

Inc. VAT

Available soon

Product description

The MOTIC Microscope BA310E Trinocular is a high-performance microscope designed for advanced laboratory use and educational environments. It features a trinocular tubus with the Siedentopf design, providing comfortable viewing and easy adjustment for various users. Equipped with N-WF10X/20mm eyepieces, this microscope delivers excellent image clarity and resolution, making it ideal for routine and specialized applications. The trinocular setup allows for simultaneous viewing and photomicrography, enhancing research capabilities.

Key Features:

  • Brand: MOTIC
  • Optical System: Infinity Optics [CCIS]
  • Observation Tube: Siedentopf Type, Binocular with Phototube 30°, F.N. 20
  • Interpupillary Distance: 48-75 mm
  • Eyepiece Design: High-Eyepoint N-WF 10x/20 mm eyepieces with dioptre adjustment on both eyepieces and rubber eyecups
  • Nosepiece: Reversed quintuple revolving nosepiece
  • Objectives: CCIS EC Plan 4x, 10x, 40x-S, 100x-S-Oil
  • Mechanical Stage: Built-in low position coaxial, rackless mechanical stage (right hand control)
  • Condenser: Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
  • Optical Control: Koehler illumination 3 W LED with intensity control
  • Power: Universal power supply 100-240 V
  • Compatibility: Suitable for daily routine use in universities, clinics, and laboratories

Scope of Supply:

  • Immersion oil (5 ml)
  • Power cord
  • Allen hexagonal key
  • Thumb screw
  • Vinyl dust cover

With the MOTIC Microscope BA310E Trinocular, you can enjoy enhanced viewing comfort and high-quality optics, making it an ideal choice for detailed laboratory work and scientific research.

Downloads

Compare similar models

Microscop BA310E trinocular N-WF10X/20mm, trinocular tubus, type Siedentopf

Manufacturer P/N

1100100402443

Part Number

7.659 854

Manufacturer

Motic

Tube

Trinocular

Microscop BA310E binocular N-WF10X/20mm, binocular tubus, type Siedentopf

Manufacturer P/N

1100100402433

Part Number

6.262 306

Manufacturer

Motic

Tube

Binocular

Frequently asked questions

It is a high-performance microscope designed for advanced laboratory use and educational environments. It features a trinocular tubus with the Siedentopf design, providing comfortable viewing and easy adjustment for various users. Equipped with N-WF10X/20mm eyepieces, this microscope delivers excellent image clarity and resolution, making it ideal for routine and specialized applications. The trinocular setup allows for simultaneous viewing and photomicrography, enhancing research capabilities.
