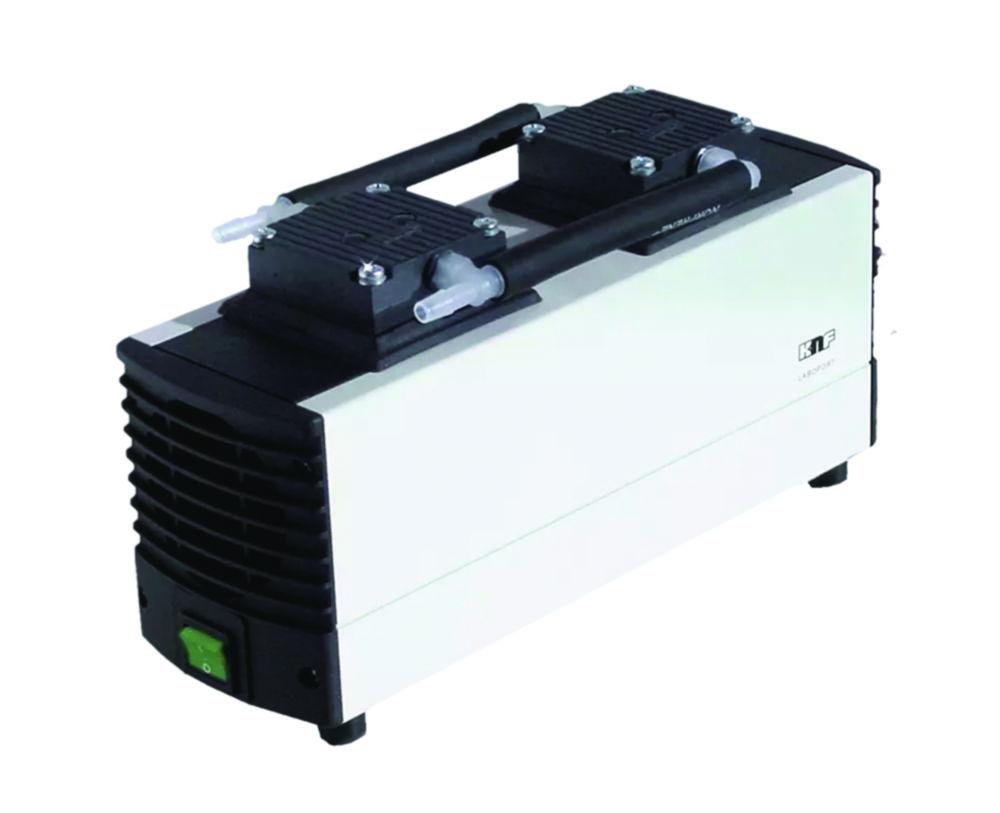

LABOPORT® Diaphragm Vacuum Pump U N816.1.2KT.18 US-Plug - 115V/60HZ
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.686 730Manufacturer #: U057017/055162
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
For filtration, desiccation, fluid aspiration.
- Suitable for handling wet vapours
- PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors
- Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)
Product Specifications
- HS Code #84141089
- Connection pressure sideID 6 mm
- Connection suction sideID 6 mm
- Flow rate30 l/min
- Power supply frequency60 Hz
- Material media contactPPS/PTFE-coated/FFPM
- Max. overpressure0.5 bar
- Max. voltage115 V
- Plug typeUS
- Power supply115 V, 60 Hz
- TypeU N 816.1.2 KT.18
- Type of auxiliary energyMains connection
- Ultimate vacuum160 mbar
- UNSPSC40151502
