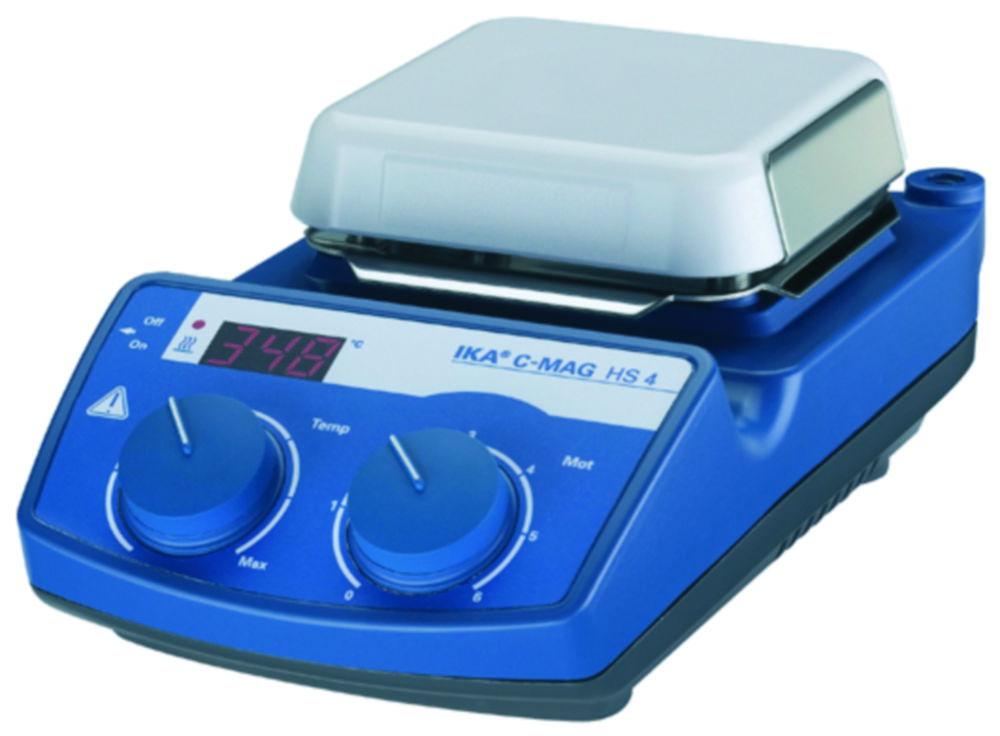

IKA Magnetic Stirrer C-MAG HS 4 S 3 with Heating, Glass Ceramics Heating Plate with Swiss Plug
Product overview
The IKA Magnetic Stirrer C-MAG HS 4 S 3 with heating features a glass ceramics heating plate, providing efficient and reliable mixing and heating in laboratory applications. Designed for precision, this stirrer includes a Swiss plug for high-quality power connections, ensuring safety and ease of use. It’s ideal for laboratories requiring consistent, controlled heating and stirring for various chemical and biological processes.
Key Features:
- Brand: IKA
- Model: C-MAG HS 4 S 3
- Heating Plate: Glass ceramics for even heating
- Swiss Plug: High-quality power connection for safety and reliability
- Application: Perfect for laboratories requiring precise stirring and heating
The IKA Magnetic Stirrer C-MAG HS 4 S 3 is designed to offer both heating and stirring capabilities, making it an essential tool for a wide range of laboratory tasks.
Frequently Asked Questions
1. What is the IKA Magnetic Stirrer C-MAG HS 4 S 3 with Heating, Glass Ceramics Heating Plate with Swiss Plug used for?
It features a glass ceramics heating plate, providing efficient and reliable mixing and heating in laboratory applications. Designed for precision, this stirrer includes a Swiss plug for high-quality power connections, ensuring safety and ease of use. It’s ideal for laboratories requiring consistent, controlled heating and stirring for various chemical and biological processes.
2. Is this product suitable for Perfect for laboratories requiring precise stirring and heating?
Yes. It is designed for Perfect for laboratories requiring precise stirring and heating, and offers glass ceramics for even heating and high-quality power connection for safety and reliability to support this kind of work.
3. What heating plate and swiss plug does this product have?
It has glass ceramics for even heating and high-quality power connection for safety and reliability.
4. What are the key features of this product?
It offers the following key features: Glass ceramics for even heating; High-quality power connection for safety and reliability; Perfect for laboratories requiring precise stirring and heating.
Product Specifications
- HS Code #84798200
- Colour housingBlue
- Depth260 mm
- Depth working area100 mm
- Dimensions (WxDxH)150 x 260 x 105 mm
- DisplayAnalogue/digital
- Power supply frequency50/60 Hz
- Heating capacity250 W
- Heating temperature50 ... 500 °C
- Height105 mm
- IP codeIP 21
- Material stirring surfaceGlass ceramic
- Max. heating rate2.5 °C/min
- Max. heating temperature500 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. safety temperature550 °C
- Max. speed1500 1/min
- Max. stirring capacity5 l
- Max. voltage230 V
- Min. heating temperature50 °C
- Min. permitted ambient temperature5 °C
- Min. speed100 1/min
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Rated capacity270 W
- Safety temperature550 °C
- Speed100 ... 1,500 1/min
- TypeC-MAG HS 4
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Weight3 kg
- Width150 mm
- Width working area100 mm
- With connection ext. temperature sensorNo
- With timerNo
- Working area (WxD)100 x 100 mm
Downloads
- LabFriend 4.008 088 20000005327f_3582800_C-MAG HS_HP_MS_072024_web.pdfDownload
- LabFriend 4.008 088 201910_Integrated Safety_6 Page Flyer_EN_web_single_update_final.pdfDownload
- LabFriend 4.008 088 20230808_IWB_Questionnaire_Form_EN_final_edited.pdfDownload
- LabFriend 4.008 088 Data_Sheet_C-MAG_HS_4.pdfDownload
- LabFriend 4.008 088 IKA_CE-Declaration_Magnetic_stirring_C-MAG_HP_HS_MS-Series_(D).pdfDownload
