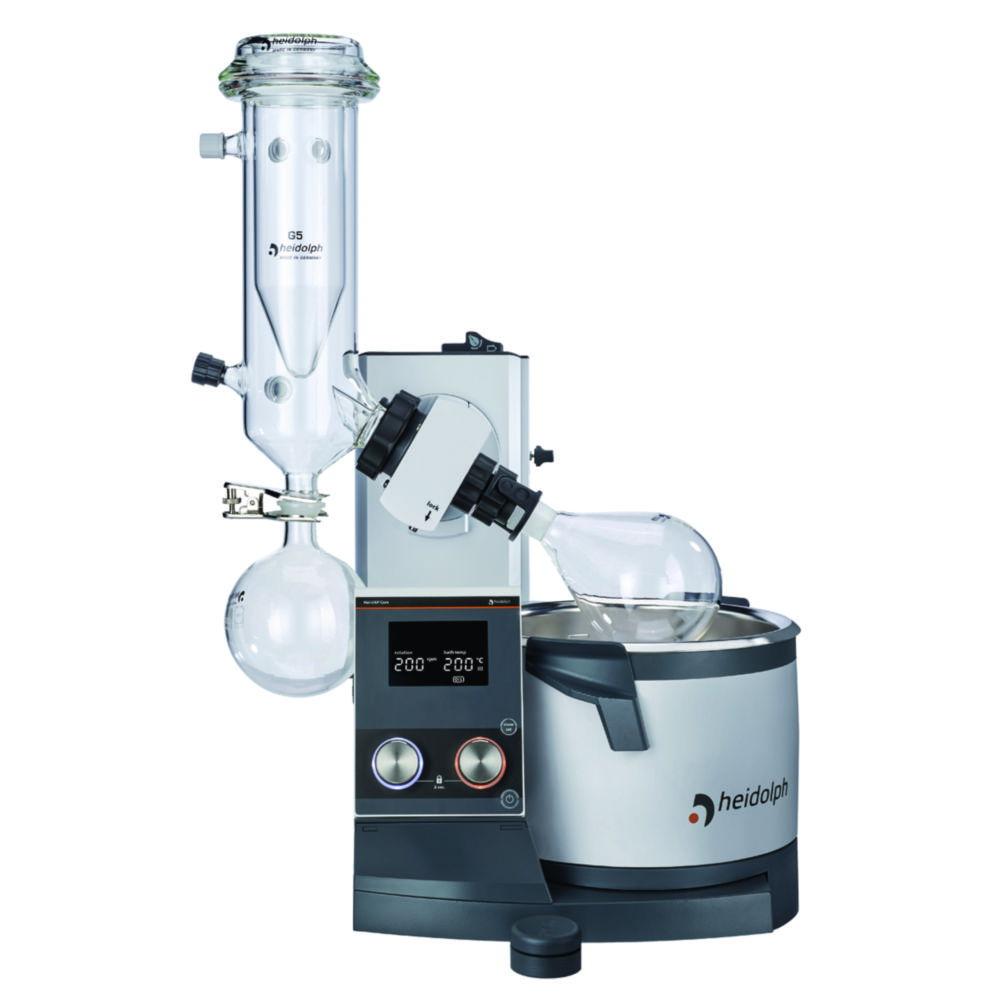

Heidolph Rotary Evaporator Hei-VAP Core HL G5B Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NTD 256,994

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G5B Hand Lift (EU-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The hand lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

  • Brand: Heidolph
  • Display: Clear digital display for monitoring current values with a separate button to display set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: (Motor lift models) Standby button stops all functions and lifts evaporator flask out of heating bath
  • Design: Ergonomically optimized heating bath handles for secure grip; grease-free operation due to innovative sealing technology
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle of evaporating flask adjustable from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints, optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise and efficient solvent evaporation solutions.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675NTD 67,581
20 l+90 °C569-00610-009.812 665NTD 58,623

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
2000 ml41104800514-75000-007.047 223NTD 8,380
250 ml41104800514-72000-007.047 221NTD 5,274
500 ml41104800514-73000-007.047 222NTD 5,779
5000 ml41104800514-78000-007.626 949NTD 22,647
100 ml41104800514-71000-007.047 220NTD 4,840
50 ml41104800514-70000-006.206 660NTD 7,766
1000 ml41104800514-74000-007.047 172NTD 6,899

Compare similar models

Rotary Evaporator Hei-VAP Core HL G5B hand lift (EU-Plug)

Manufacturer P/N

571-01510-00

Part Number

4.666 093

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01510-03

Part Number

4.666 115

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5-UK hand lift (UK-Plug)

Manufacturer P/N

571-01500-03

Part Number

4.666 110

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5-CH hand lift (CH-Plug)

Manufacturer P/N

571-01500-04

Part Number

4.666 130

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G5B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01510-04

Part Number

4.666 135

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G5 hand lift (EU-Plug)

Manufacturer P/N

571-01500-00

Part Number

4.666 088

Manufacturer

Heidolph

Glassware

Without coating
