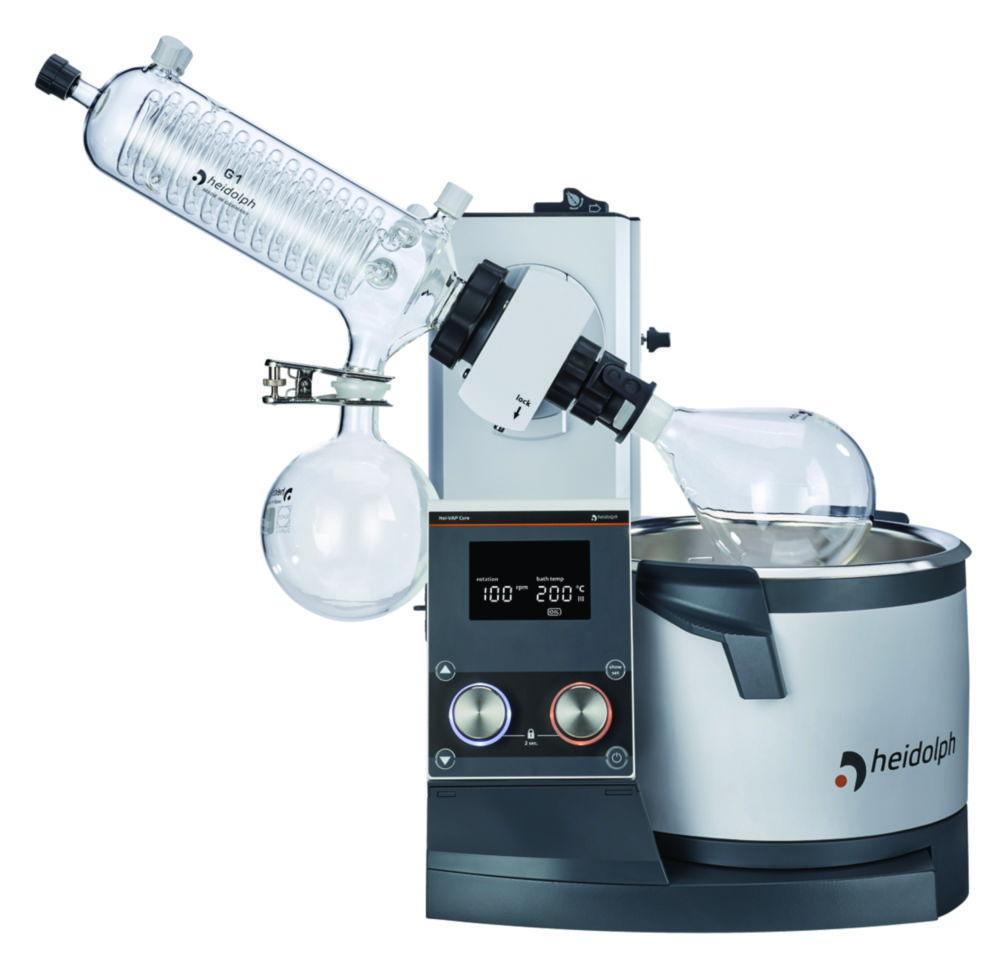

Heidolph Rotary Evaporator Hei-VAP Core ML G1B Motor Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

NTD 217,731

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1B with Motor Lift is built for reliable and efficient solvent evaporation in laboratory settings. Featuring a motorized lift system with a lifting speed of 25 mm/s and a maximum immersion depth of 155 mm, this unit ensures precise and hands-free adjustment of the evaporating flask. The G1B diagonal glassware configuration and EU plug compatibility make it ideal for European labs handling distillation, concentration, and solvent recovery processes.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1B with motor lift
  • Lift Mechanism: Motorized lift with 25 mm/s lifting speed and max immersion depth of 155 mm
  • Glassware Configuration: G1B diagonal condenser for efficient solvent distillation
  • Heating Bath Capacity: Up to 6 liters (recommended filling volume: 2.2 – 4.5 liters)
  • Heating Power: 1300 W; Temperature Range: 20 °C to 210 °C
  • Rotation Speed: Adjustable from 10 to 280 rpm
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate knobs for speed and temperature with LED ring light indicators
  • Safety: Activated lock to prevent unintentional changes; residual heat warning when bath exceeds 50 °C
  • Standby Function: Stops operation and lifts flask from bath automatically
  • Design: Ergonomically optimized handles; grease-free sealing system for smooth, low-maintenance performance
  • Adjustability: Tilt angle adjustable from 20° to 80°
  • Connectivity: PTFE ventilation cap without ground joints; optional replenishment valve and cable extension for remote operation panel placement
  • Plug Type: EU plug (230 V, 50/60 Hz)

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-liter receiving flask
  • 1-liter evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G1B is an advanced rotary evaporator solution for laboratories needing dependable, precise, and ergonomically designed equipment for solvent evaporation.
