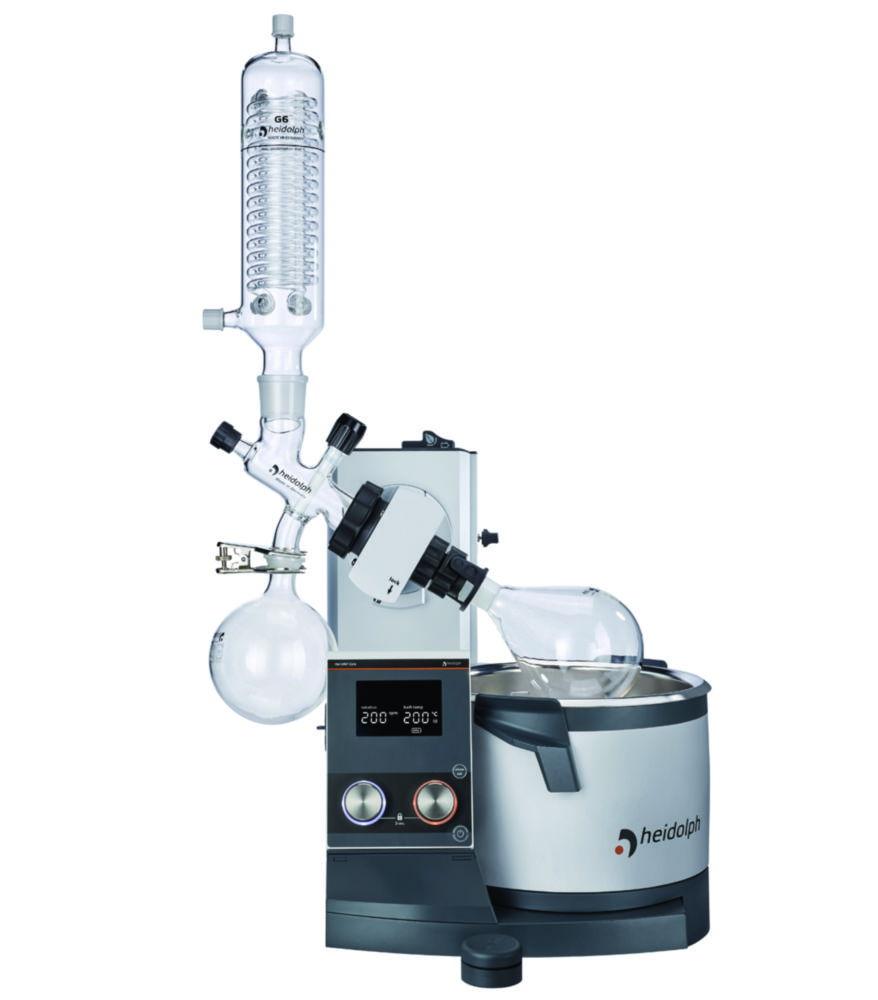

Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G6 with hand lift is a highly efficient and reliable solution for solvent distillation in laboratories. It features a G6 vertical glassware configuration, offering excellent performance for large-volume evaporation tasks. The manual hand lift provides easy control and adjustment for precise operation.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G6
• Lift Mechanism: Manual hand lift for precise adjustment
• Glassware Configuration: G6 vertical condenser for high-volume evaporation
• Plug Type: EU plug
• Display: Clear digital display for monitoring current values with a separate button for set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
• Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
• Standby Function: (Motor lift models only) Stops all functions and lifts flask out of the heating bath
• Ergonomics: Heating bath handles are ergonomically shaped for secure handling
• Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
• Sealing: Grease-free operation enabled by innovative sealing technology
• Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
• Optional Accessories: Cable extension; detachable control panel for use outside closed fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

The Heidolph Hei-VAP Core HL G6 rotary evaporator is perfect for laboratories requiring efficient, high-volume solvent removal with user-friendly operation and dependable performance.

Frequently Asked Questions

1. What is the Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift used for?

It is a highly efficient and reliable solution for solvent distillation in laboratories. It features a G6 vertical glassware configuration, offering excellent performance for large-volume evaporation tasks. The manual hand lift provides easy control and adjustment for precise operation.

2. Is this product suitable for the laboratory application described by the manufacturer?

Yes. It is designed for the laboratory application described by the manufacturer, and offers 1-l receiving flask and 1-l evaporating flask to support this kind of work.

3. What specifications does this product have?

It has 1-l receiving flask and 1-l evaporating flask.

4. What lift mechanism and glassware configuration does this product offer?

It offers manual hand lift for precise adjustment, G6 vertical condenser for high-volume evaporation, EU plug and clear digital display for monitoring current values with a separate button for set values.
