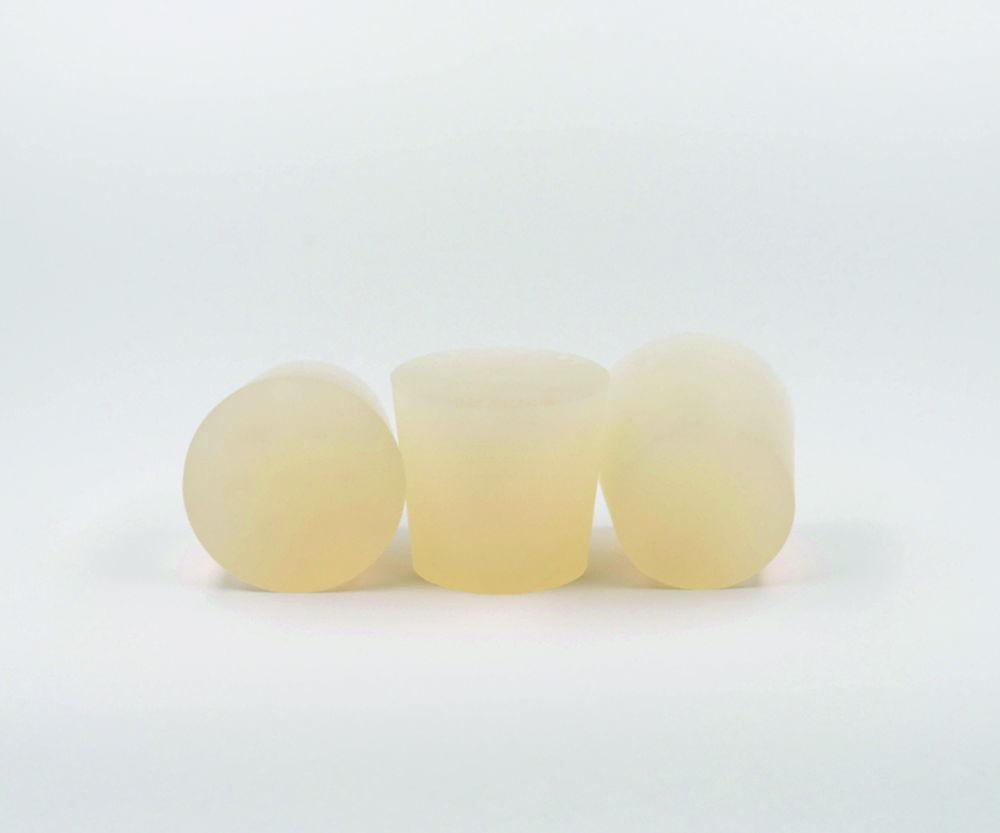

Deutsch & Neumann Silicone Plugs 56x65x45mm with 1 Hole 23 mm According to DIN 12871 (VMQ), Transparent
Product overview
The Deutsch & Neumann Silicone Plugs 56x65x45mm with 1 Hole 23 mm According to DIN 12871 (VMQ), Transparent are designed for sealing laboratory vessels securely. Made from high-quality VMQ silicone, these plugs are equipped with a 23 mm hole to accommodate tubes or other fittings. The transparent material provides easy visual inspection, and the product complies with DIN 12871 standards for reliable, leak-proof sealing in laboratory environments.
Key Features:
- Brand: Deutsch & Neumann
- Material: VMQ Silicone
- Dimensions: 56x65x45 mm
- Hole Size: 23 mm
- Transparency: Transparent material for easy inspection
- Standard: Conforms to DIN 12871
- Application: Ideal for laboratory vessels requiring secure sealing and tube fittings
Deutsch & Neumann silicone plugs offer excellent sealing capabilities, ensuring long-lasting performance and chemical resistance for laboratory applications.
Frequently Asked Questions
1. What is the Deutsch & Neumann Silicone Plugs 56x65x45mm with 1 Hole 23 mm According to DIN 12871, Transparent used for?
It are designed for sealing laboratory vessels securely. Made from high-quality VMQ silicone, these plugs are equipped with a 23 mm hole to accommodate tubes or other fittings. The transparent material provides easy visual inspection, and the product complies with DIN 12871 standards for reliable, leak-proof sealing in laboratory environments.
2. Is this product suitable for laboratory vessels requiring secure sealing and tube fittings?
Yes. It is designed for laboratory vessels requiring secure sealing and tube fittings, and offers dimensions of 56x65x45 mm and a hole size of 23 mm to support this kind of work.
3. What dimensions and hole size does this product have?
It has dimensions of 56x65x45 mm and a hole size of 23 mm.
4. What is this product made from and what features does it include?
It is made from VMQ Silicone. It also offers transparent material for easy inspection and conforms to DIN 12871.
Product Specifications
- HS Code #39235090
- Bottom Ø56.0 mm
- ColourNatural
- Borings Ø23 mm
- Height45 mm
- MaterialSilicone
- Max. temp. resistance180 °C
- Min. temp. resistance-60 °C
- No. of borings1
- StandardDIN 12871
- Temperature resistance-60 ... 180 °C
- Top Ø65.0 mm
- UNSPSC41122502
Downloads
- LabFriend 6.222 956 DuN-Laboratory_Catalogue (1).pdfDownload
