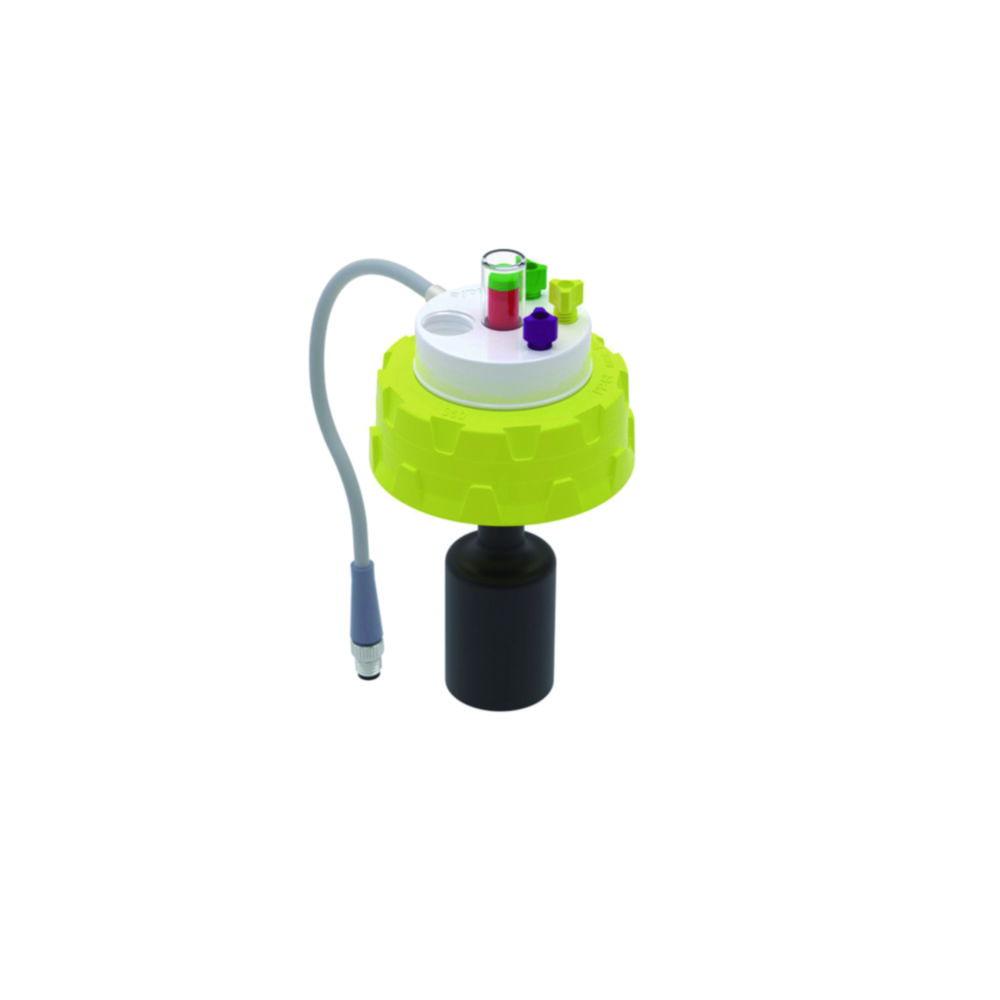

Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control 3x UNF1/4", 1x GL14

The Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control is designed for precise waste management in laboratory settings. Featuring a durable S60 thread, this screw cap includes three UNF 1/4"" fittings and one GL14 connection, offering secure and reliable connections for waste control systems. It comes with a freely movable PTFE insert for connecting capillaries with outer diameters of 1.6 mm, 2.2 mm, or 3.2 mm, as well as hose olives compatible with tubing having inner diameters of 5.5 to 8 mm. The integrated electronic fill-level monitoring ensures accurate tracking of waste levels, supported by a red indicator pin for easy visual monitoring. Additionally, the GL14 thread allows for optional attachment of a b.safe exhaust air filter (not included). The Waste Cap includes a permanently mounted 400 mm cable for connection to the b.safe display for fill-level control, and optionally, a grounding connection can be added with a separately ordered grounding cable.

Key Features:

• Brand: Bohlender
• Material: High-quality PTFE for durability and chemical resistance
• Connection Type: 3x UNF 1/4"", 1x GL14
• Application: Ideal for laboratories requiring efficient and controlled waste management
• Includes: Fittings, blind plugs, and a hose olive (NPT 1/8"")
• Additional Features: Freely movable PTFE insert, permanently mounted 400 mm cable for b.safe display connection, red indicator pin for visual fill-level monitoring, optional grounding connection (grounding cable not included)

Scope of Supply:

• Fittings (UNF 1/4“)
• Blind fittings (UNF 1/4“)
• Hose olive (NPT 1/8")

Ensure optimal waste management with this reliable and precise electronic fill-level control waste cap, ideal for lab environments that require high safety standards.

Frequently Asked Questions

1. What is the Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control 3x UNF1/4", 1x GL14 used for?

It is designed for precise waste management in laboratory settings. Featuring a durable S60 thread, this screw cap includes three UNF 1/4" fittings and one GL14 connection, offering secure and reliable connections for waste control systems. It comes with a freely movable PTFE insert for connecting capillaries with outer diameters of 1.6 mm, 2.2 mm, or 3.2 mm, as well as hose olives compatible with tubing having inner diameters of 5.5 to 8 mm. The integrated electronic fill-level monitoring ensures accurate tracking of waste levels, supported by a red indicator pin for easy visual monitoring. Additionally, the GL14 thread allows for optional attachment of a b.safe exhaust air filter (not included). The Waste Cap includes a permanently mounted 400 mm cable for connection to the b.safe display for fill-level control, and optionally, a grounding connection can be added with a separately ordered grounding cable.

2. Is this product suitable for laboratories requiring efficient and controlled waste management?

Yes. It is designed for laboratories requiring efficient and controlled waste management, and offers a connection type of 3x UNF 1/4", 1x GL14 to support this kind of work.

3. What connection type does this product have?

It has a connection type of 3x UNF 1/4", 1x GL14.

4. What is this product made from and what features does it include?

It is made from high-quality PTFE for durability and chemical resistance. It also offers fittings, blind plugs, and a hose olive (NPT 1/8"), freely movable PTFE insert, permanently mounted 400 mm cable for b.safe display connection, red indicator pin for visual fill-level monitoring, optional grounding connection (grounding cable not included) and fittings (UNF 1/4“).
