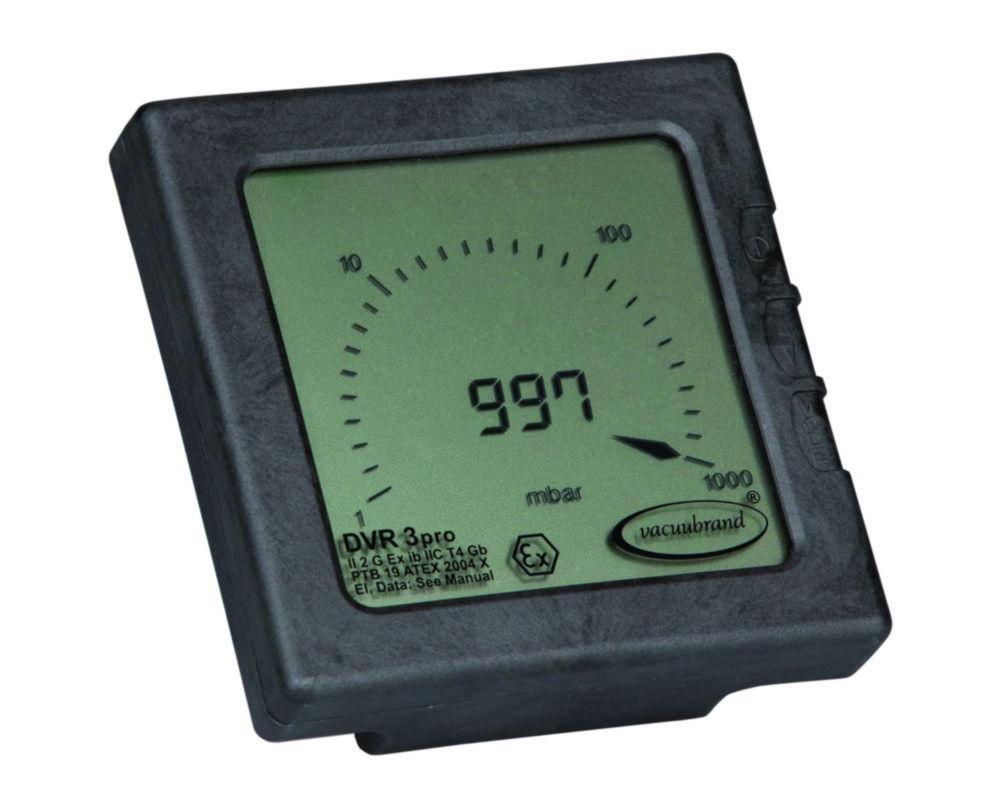

Vacuubrand DVR 3pro Vacuum Gauge PTB 19 ATEX 2004 X: II 2G Ex ib IIC T4 Gb

The Vacuubrand DVR 3pro Vacuum Gauge is a fully electronic, versatile instrument designed for precise vacuum measurement in hazardous environments. Certified under PTB 19 ATEX 2004 X: II 2G Ex ib IIC T4 Gb, it is approved for use in areas with potentially explosive atmospheres (ATEX category 2). The gauge features a capacitive, gas type-independent absolute pressure measurement principle, ensuring accurate readings from 1 mbar to 1,060 mbar.

Key Features:

• Certification: ATEX category 2 (II 2G Ex ib IIC T4 Gb)
• Measurement Range: 1 mbar to 1,060 mbar
• Power Supply: 9V Alkaline-Manganese Dioxide-Zinc battery (commonly available)
• Display: Large analogue and digital pressure display
• Sensor: Integrated alumina ceramic sensor with excellent chemical resistance
• Electromagnetic Immunity: High resistance to electromagnetic interference
• Duty Cycle: Adjustable for battery-friendly operation
• Dimensions: 117 x 117 x 91 mm
• Weight: 400 g

Scope of Supply:

• Vacuum measuring instrument
• Integrated vacuum sensor
• Connecting parts
• Hex key
• Battery
• Manual

This vacuum gauge is ideal for laboratories and industrial applications requiring reliable and precise vacuum measurements in explosive atmospheres.
