Representative Image

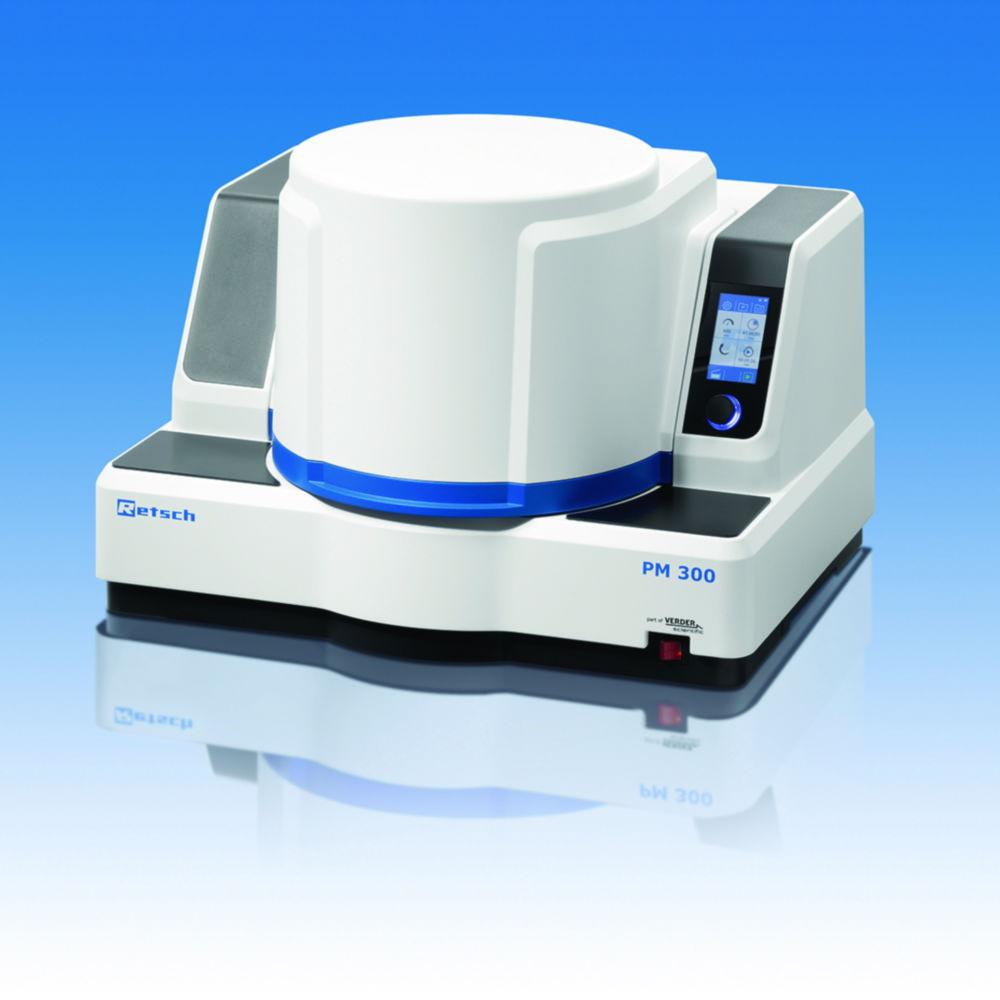

Retsch Planetary Ball Mill PM 300 220-230 V, 50/60 Hz

Brand:Retsch

Specifications

Depth
580 mm
Dimensions (WxDxH)
745 x 580 x 525 mm
Feed particle size
10 mm
Feed quantity
440 ml
Power supply frequency
50/60 Hz
Height
525 mm
IP code
IP 20
Max. feed particle size
10 mm
Max. feed quantity
440 ml
Max. speed
800 1/min

NTD 1,061,711

Inc. VAT

Available soon

Product description

The Retsch Planetary Ball Mill PM 300 is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 220–230 V, 50/60 Hz
  • Interface: Touch display with USB and RASPI connectivity
  • Grinding Range: Loss-free size reduction down to the submicron range
  • Grinding Modes: Suitable for dry, wet, and ultrafine grinding as well as mechanochemistry
  • Sample Capacity: Two grinding stations, stackable jars allow processing of up to 4 samples simultaneously
  • Clamping System: Lockable sun wheel for safe and easy clamping of jars
  • Safety: Safety Slider prevents operation without securely clamped jars
  • Stability: Excellent stability with FFCS (Free-Floating Compensation System) technology
  • Programmability: Programmable start time and adjustable timer from 1 s to 99 h 59 min 59 s

Note: Please order grinding jars and grinding balls separately.

Scope of Supply:
Planetary Ball Mill PM 300 unit only.

The PM 300 is the ideal choice for laboratories requiring high-performance, high-precision sample preparation with advanced safety and automation features.

Accessories

Grinding jars EasyFit PM 300

ProductNominal capacityMaterialMfr#Part#AvailabilityPrice
250 mlZirconia0146205004.691 612NTD 261,184
500 mlSintered corundum0146205034.691 608NTD 177,241
50 mlSintered corundum0146205074.691 605NTD 79,897
500 mlAgate0146205064.691 604NTD 325,947
500 mlZirconia0146205044.691 613NTD 298,496
80 mlZirconia0146205104.691 610NTD 198,227
250 mlAgate0146205024.691 603NTD 144,010
125 mlAgate0146205154.691 602NTD 111,358
80 mlAgate0146205114.691 601NTD 97,957
250 mlTungsten carbide0146204974.691 598NTD 330,462
125 mlTungsten carbide0146205274.691 597NTD 246,013
50 mlAgate0146205094.691 600NTD 91,528
80 mlTungsten carbide0146204954.691 596NTD 240,198
50 mlTungsten carbide0146204944.691 595NTD 191,219
125 mlZirconia0146205134.691 611NTD 219,212
250 mlSteel, stainless, hardened0146205194.691 593NTD 94,454
125 mlSteel, stainless, hardened0146205184.691 592NTD 89,216
250 mlSintered corundum0146204994.691 607NTD 123,025
500 mlSteel, stainless, hardened0146205204.691 594NTD 142,277
80 mlSteel, stainless, hardened0146205174.691 591NTD 83,365
125 mlSintered corundum0146205124.691 606NTD 106,698
500 mlTungsten carbide0146204984.691 599NTD 599,736
50 mlSteel, stainless, hardened0146205164.691 590NTD 62,993
50 mlZirconia0146205084.691 609NTD 166,152
12 mlSteel, stainless, hardened0146202396.238 959NTD 35,687
25 mlSteel, stainless, hardened0146202406.238 960NTD 39,407

Accessories for planetary ball mill PM 300

ProductDescriptionForMfr#Part#AvailabilityPrice
Spare valve set for aeration lids M8x1PM 3002286400014.691 638NTD 9,463
Opening aid for planetary ball millPM 3000348600624.691 640NTD 9,536
Opening aid for safety closure devicePM 3000248600554.691 639NTD 4,732
IQ/OQ Documentation for PM 300PM 3009920000414.691 641NTD 28,824
Adapter for the use of grinding jars 12 ml and 25 mlPM 3000302501824.691 637NTD 33,664
Adapter for stacking grinding jars 50 ... 80 mlPM 3000302501784.691 636NTD 23,478
Clamping unit for grinding jarsPM 3002266100054.691 635NTD 35,325

Frequently asked questions

It is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.
