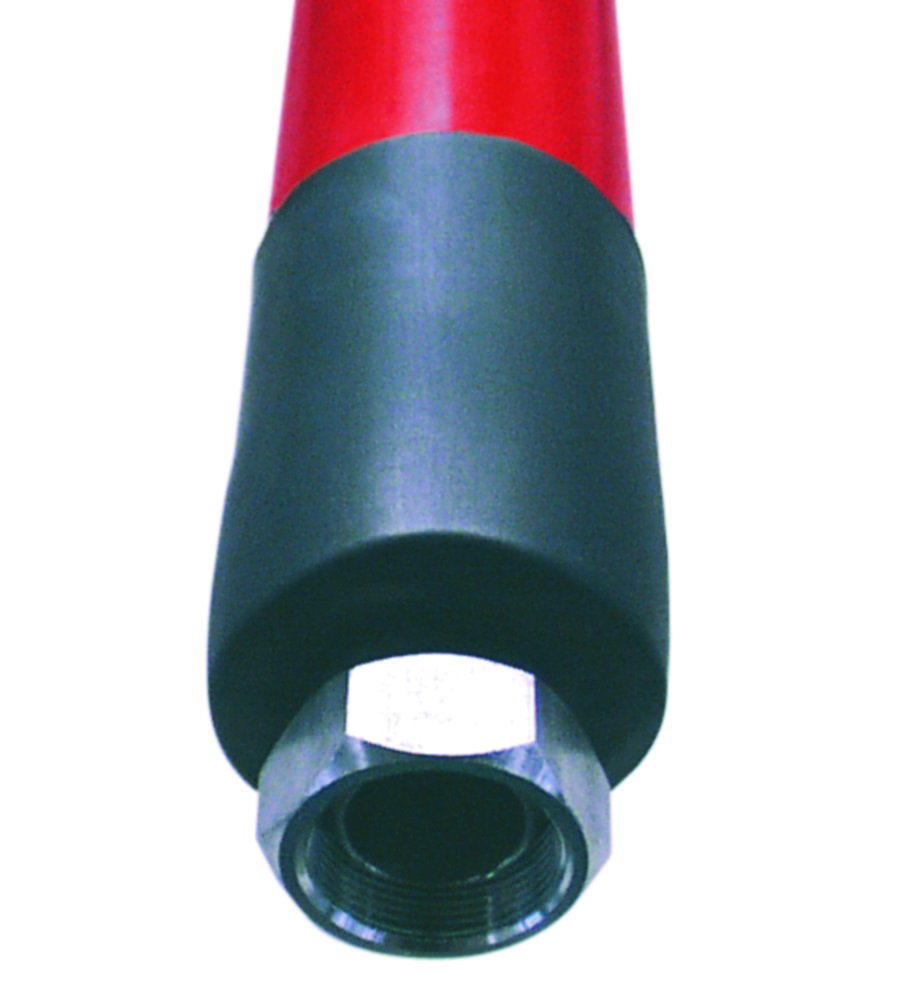

Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 200 cm, 350°C Max. Temp.

The Peter Huber 9276 is an ultra-high-temperature insulated metal hose designed for demanding thermoregulation from -100°C up to 350°C. Featuring a nominal width of NW12 and robust M24x1.5 threaded connections, this 200cm (2 meters) hose is engineered for high-performance Huber Unistats. Constructed from premium 1.4404 stainless steel and protected by multi-layer insulation and a smooth silicone jacket, it ensures maximum heat retention and personnel safety in extreme research and pilot plant environments.

Key Features:

• Brand: Peter Huber
• Connection Type: NW12 with M24x1.5 threading (Sleeve nut according to DIN 3870)
• Length: 200 cm (2 meters)
• Temperature Range: Extreme versatility from -100°C to 350°C
• Material: High-grade 1.4404 stainless steel for superior chemical and thermal resistance
• Insulation: Special multi-layer insulation with a smooth white silicone cover to prevent heat loss and protect users
• Pressure Rating: Maximum operating pressure of 16 bar at 20°C (10 bar at 350°C)
• Dimensions: 33 mm outside diameter with a minimum bending radius of 120 mm
• Safety: Flame-resistant construction (UL94-HB) with protective silicone end caps

This insulated metal hose is specifically optimized for high-performance temperature control units where thermal integrity and personnel safety are paramount. The integrated silicone cover ensures a non-porous, "wipe-clean" surface that is resistant to aggressive laboratory chemicals. The M24x1.5 fittings provide a standardized, vibration-resistant, and leak-free connection, ensuring long-term reliability in demanding research environments.

Frequently Asked Questions

1. What is the Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 200 cm, 350°C Max. Temp. used for?

It is an ultra-high-temperature insulated metal hose designed for demanding thermoregulation from -100°C up to 350°C. Featuring a nominal width of NW12 and robust M24x1.5 threaded connections, this 200cm (2 meters) hose is engineered for high-performance Huber Unistats. Constructed from premium 1.4404 stainless steel and protected by multi-layer insulation and a smooth silicone jacket, it ensures maximum heat retention and personnel safety in extreme research and pilot plant environments.

2. Is this product suitable for demanding thermoregulation from -100°C up to 350°C?

Yes. It is designed for demanding thermoregulation from -100°C up to 350°C, and offers a length of 200 cm (2 meters) and dimensions of 33 mm outside diameter with a minimum bending radius of 120 mm to support this kind of work.

3. What length and dimensions does this product have?

It has a length of 200 cm (2 meters) and dimensions of 33 mm outside diameter with a minimum bending radius of 120 mm.

4. What is this product made from and what features does it include?

It is made from high-grade 1.4404 stainless steel for superior chemical and thermal resistance. It also offers NW12 with M24x1.5 threading (Sleeve nut according to DIN 3870), extreme versatility from -100°C to 350°C and special multi-layer insulation with a smooth white silicone cover to prevent heat loss and protect users.
