Representative Image

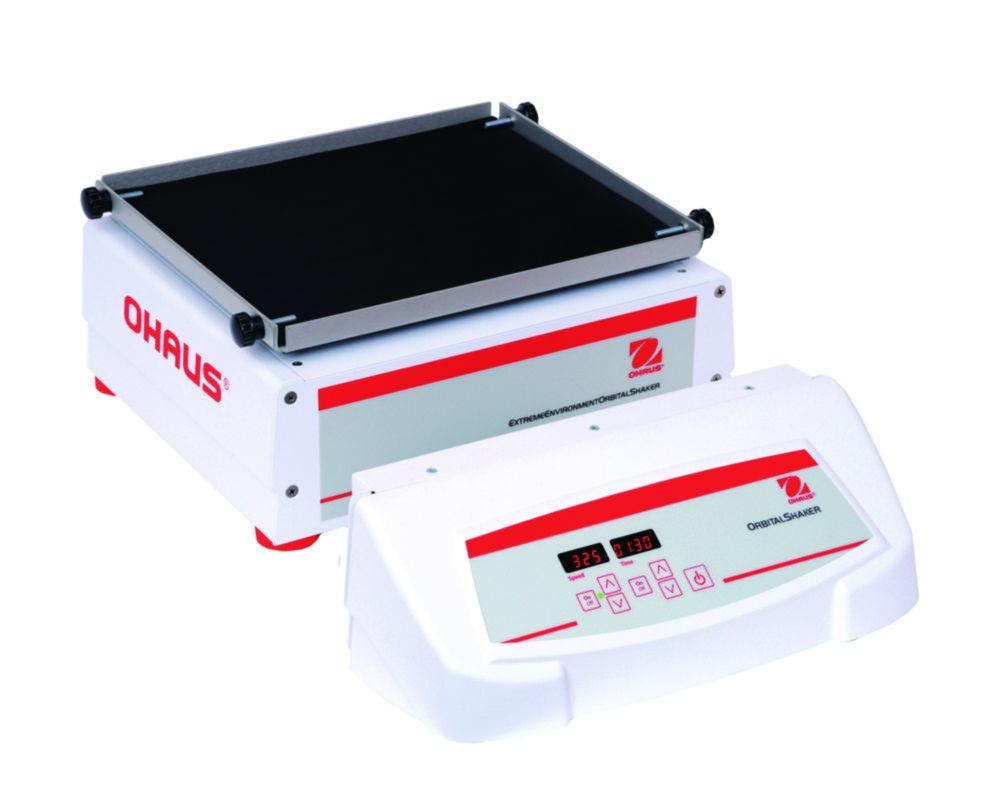

Ohaus Extreme Environment Shaker SHEX1619DG Digital, EU Plug

Brand:OHAUS

Specifications

HS Code #
84798200
Depth
294 mm
Depth moving table
279 mm
Dimensions (WxDxH)
355 x 294 x 149 mm
Display
Digital
Power supply frequency
50/60 Hz
Height
149 mm
Max. loading capacity
16 kg
Max. permitted ambient temp.
60 °C
Max. relative humidity rate
100 %
Max. speed
500 1/min

NTD 198,804

Inc. VAT

Available soon

Product description

The Ohaus Extreme Environment Shaker SHEX1619DG Digital, EU Plug is engineered for high-performance orbital shaking in demanding laboratory environments. Designed to withstand extreme conditions, this shaker is ideal for applications requiring CO₂ and humidity, such as cell cultures, protein studies, and immunoassays. The unit features a 19 mm orbital motion with a speed range of 15 to 500 rpm, accommodating a maximum load of 16 kg. Its brushless DC motor ensures consistent performance, while the digital control panel allows precise adjustments of speed and time settings.

Key Features:

  • Brand: Ohaus
  • Application: Designed for use in CO₂ incubators
  • Humidity Resistance: Can withstand extreme environments up to 100% humidity
  • Data Communication: Remote controller magnetically attaches to most incubators
  • Drive System: Patented Accu-Drive Shaking System
  • Connectivity: Microprocessor control with touchpad interface
  • Motor Design: Triple eccentric drive for smooth operation
  • Speed Range: Speed ramping feature for gradual acceleration
  • Design: Spill-resistant design
  • Construction Material: Independent LED displays for speed and time
  • Component Material: Speed calibration mode
  • Rs232 Interface Data: RS232 interface for data logging
  • Safety Details: Overload protection and audible alarm
  • Timer: Timer adjustable from 1 second to 160 hours
  • Orbital motion: 19 mm
  • Operating Speed: 15 – 500 rpm
  • Maximum load capacity: 16 kg
  • Tray dimensions: 33 cm x 33 cm
  • Brushless Motor: Brushless DC motor
  • Power supply: 230V, 50/60 Hz (EU plug)
  • Power consumption: 30 W
  • Safety certifications: CE, TÜV
  • Remote control dimensions (W x D x H): 356 x 150 x 112 mm

Scope of Supply:

  • Shaker including built-in tray and non-slip rubber mat

This shaker is an essential tool for laboratories requiring reliable and efficient shaking under extreme environmental conditions.

Accessories

Universal platforms, stainless steel 304

ProductMaterialDepthMfr#Part#AvailabilityPrice
Stainless steel330 mm304000524.659 736NTD 12,281
Stainless steel330 mm304000534.659 737NTD 17,590
Stainless steel610 mm304000564.659 740NTD 23,586
Stainless steel457 mm304000544.659 738NTD 20,950
Stainless steel762 mm304000584.659 742NTD 46,775
Stainless steel914 mm304000594.659 743NTD 61,621
Stainless steel610 mm304000574.659 741NTD 48,762
Stainless steel457 mm304000554.659 739NTD 17,699

Rubber mats for Universal platforms

ProductDepthUNSPSCMfr#Part#AvailabilityPrice
330 mm41103816304000614.659 745NTD 4,732
610 mm41103816304000644.659 748NTD 8,019
330 mm41103816304000604.659 744NTD 4,551
610 mm41103816304000634.659 747NTD 7,621
460 mm41103816304000624.659 746NTD 6,827
910 mm41103816304000654.659 749NTD 8,777

Frequently asked questions

It is engineered for high-performance orbital shaking in demanding laboratory environments. Designed to withstand extreme conditions, this shaker is ideal for applications requiring CO₂ and humidity, such as cell cultures, protein studies, and immunoassays. The unit features a 19 mm orbital motion with a speed range of 15 to 500 rpm, accommodating a maximum load of 16 kg. Its brushless DC motor ensures consistent performance, while the digital control panel allows precise adjustments of speed and time settings.
