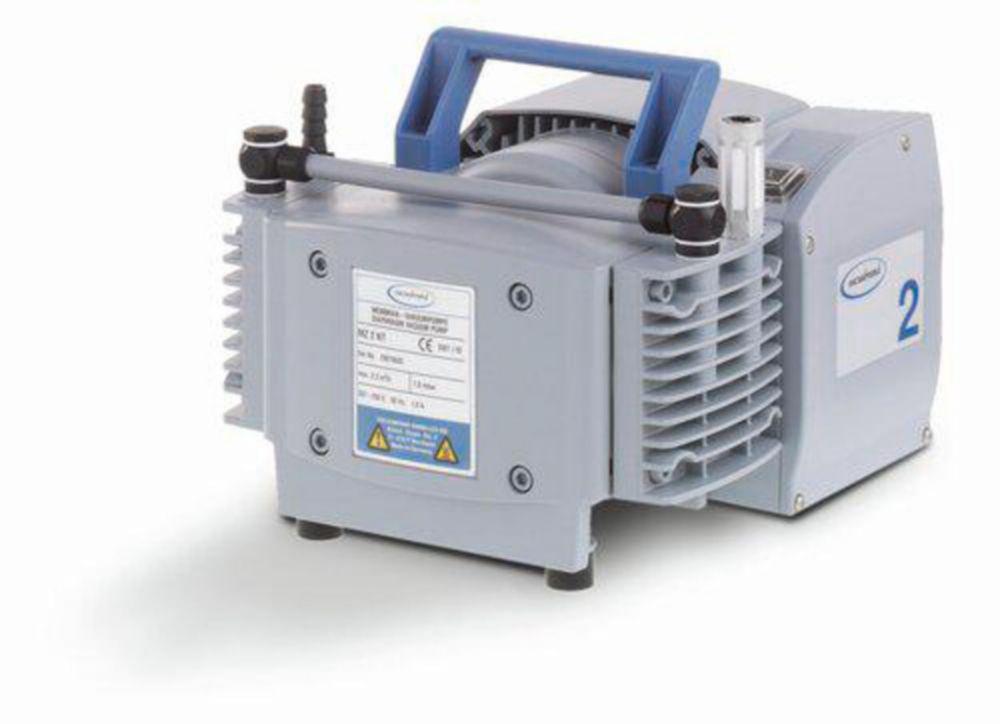

Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug

The Vacuubrand MZ 2 NT is a high-performance, oil-free diaphragm pump designed for continuous evacuation and pumping of non-corrosive gases in laboratory applications. Operating at 230 V and 50 Hz, this two-stage pump delivers a maximum pumping speed of 2.2 m³/h and achieves an ultimate vacuum of 7 mbar. Equipped with a Swiss plug (Plug CH), it ensures compatibility with Swiss power systems.

Key Features:

• Brand: Vacuubrand
• Type: Diaphragm (membrane) vacuum pump
• Design: Two-stage, two-head diaphragm pump for efficient vacuum generation
• Voltage: 230 V, 50 Hz
• Plug Type: Swiss plug (Plug CH) for compatibility with Swiss power systems
• Maximum Pumping Speed: 2.2 m³/h at 50 Hz
• Ultimate Vacuum: 7 mbar (5.2 torr)
• Noise Level: Approximately 45 dBA
• Weight: 11.0 kg
• Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MZ 2 NT features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.

Frequently Asked Questions

1. What is the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug used for?

It is a high-performance, oil-free diaphragm pump designed for continuous evacuation and pumping of non-corrosive gases in laboratory applications. Operating at 230 V and 50 Hz, this two-stage pump delivers a maximum pumping speed of 2.2 m³/h and achieves an ultimate vacuum of 7 mbar. Equipped with a Swiss plug (Plug CH), it ensures compatibility with Swiss power systems.

2. Is the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug suitable for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications?

Yes. It is designed for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications, and offers a voltage of 230 V, 50 Hz and a maximum pumping speed of 2.2 m³/h at 50 Hz to support this kind of work.

3. What voltage and maximum pumping speed does the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug have?

It has a voltage of 230 V, 50 Hz, a maximum pumping speed of 2.2 m³/h at 50 Hz and an ultimate vacuum of 7 mbar (5.2 torr), and is supplied under manufacturer part number 20732001.

4. What type and design does the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug offer?

It offers diaphragm (membrane) vacuum pump, two-stage, two-head diaphragm pump for efficient vacuum generation, swiss plug (Plug CH) for compatibility with Swiss power systems and approximately 45 dBA.

5. How does the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug compare with the BINDER Pump Stand VP1 with UK Plug 5023-0242?

For vacuum pump applications, the Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug is differentiated by design Two-stage, two-head diaphragm pump for efficient vacuum generation and voltage 230 V, 50 Hz. The BINDER Pump Stand VP1 with UK Plug 5023-0242 from BINDER is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
