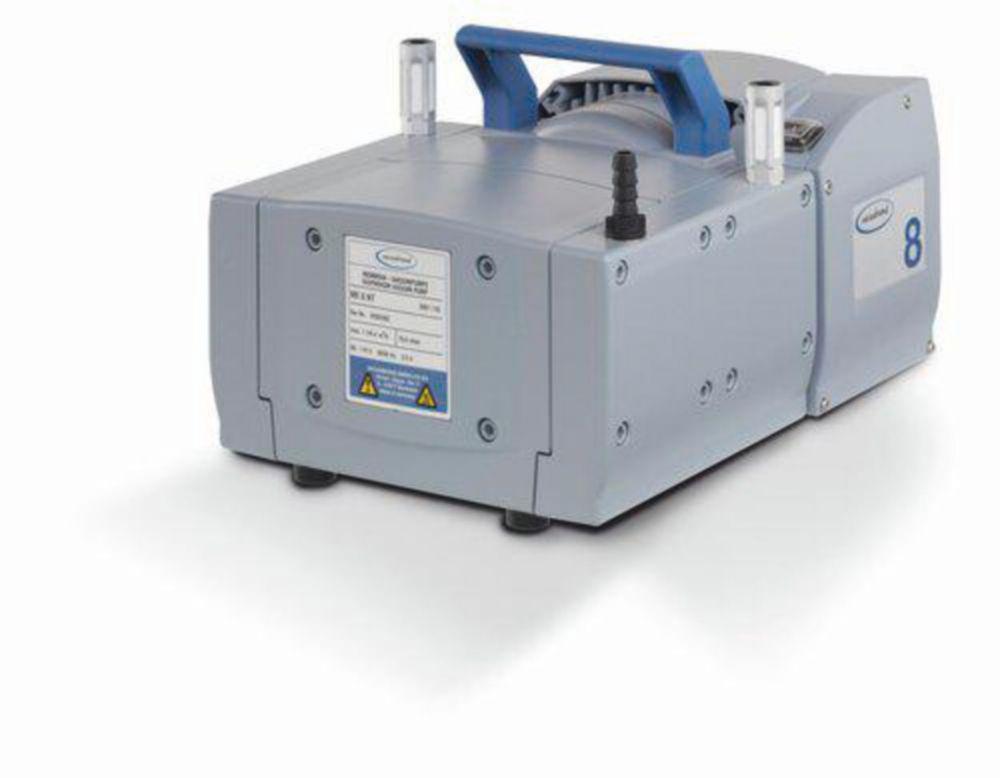

Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH
Representative image only

Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH

Sold by: LabFriend Taiwan
Available Soon
Part #: 9.880 886Manufacturer #: 20734001
Estimated shipping time:Contact us via live chat or via contact us page

NTD 148,236

See the available (3) variant products

Product overview

The Vacuubrand Diaphragm Pump ME 8 NT is a high-performance one-stage pump designed for laboratory use. Operating at 230 V and 50 Hz, it provides reliable and efficient vacuum generation. Equipped with a Plug CH, this pump is suitable for Swiss power systems, ensuring compatibility with local infrastructure. The ME 8 NT model is ideal for applications that require precise vacuum performance with low noise operation, making it an essential tool for a wide range of laboratory tasks.

Key Features:

  • Brand: Vacuubrand
  • Type: Diaphragm pump
  • Design: One-stage operation for reliable vacuum generation
  • Voltage: 230 V, 50 Hz
  • Cable Type: Plug CH for compatibility with Swiss systems
  • Application: Ideal for laboratory vacuum applications
  • Noise Level: Low noise operation

The Vacuubrand ME 8 NT diaphragm pump is a highly efficient, low-noise vacuum solution for laboratories seeking reliable performance in a variety of applications.



Frequently Asked Questions

1. What is the Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH used for?

It is a high-performance one-stage pump designed for laboratory use. Operating at 230 V and 50 Hz, it provides reliable and efficient vacuum generation. Equipped with a Plug CH, this pump is suitable for Swiss power systems, ensuring compatibility with local infrastructure. The ME 8 NT model is ideal for applications that require precise vacuum performance with low noise operation, making it an essential tool for a wide range of laboratory tasks.

2. Is the Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH suitable for laboratory vacuum applications?

Yes. It is designed for laboratory vacuum applications, and offers a voltage of 230 V, 50 Hz to support this kind of work.

3. What voltage does the Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH have?

It has a voltage of 230 V, 50 Hz, and is supplied under manufacturer part number 20734001.

4. What type and design does the Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH offer?

It offers diaphragm pump, one-stage operation for reliable vacuum generation, plug CH for compatibility with Swiss systems and low noise operation.

5. How does the Vacuubrand Diaphragm Pump ME 8 NT, One-Stage, 230 V, 50 Hz with Plug CH compare with the KNF SIMDOS 10 Diaphragm Dosing Pump U FEM 1.10 KT.18S2 US-Plug - 115V/60HZ from KNF?

For laboratory vacuum applications, the VACUUBRAND model is the better choice, offering a voltage of 230 V, 50 Hz. The KNF model offers a voltage & plug of 115V/60HZ with US plug as an alternative, while the VACUUBRAND model's diaphragm pump and one-stage operation for reliable vacuum generation help make it a strong fit for laboratory vacuum applications.

Product Specifications

  • HS Code #84141089
  • Connection pressure sideG1/4"
  • Connection suction sideDN 8-10 mm
  • Depth328 mm
  • Dimensions (WxDxH)239 x 328 x 198 mm
  • Flow rate7.3 m³/h
  • Height198 mm
  • No. of stages1
  • Plug typeCH
  • TypeME 8 NT
  • Type of auxiliary energyMains connection
  • Ultimate vacuum70 mbar
  • UNSPSC40151502
  • Width239 mm

Downloads

  • LabFriend 9.880 886 172_technical_data_sheet.pdfDownload
  • LabFriend 9.880 886 2AN_10000065742_000_08.pdfDownload
  • LabFriend 9.880 886 2AN_10000082862_000_00.pdfDownload
