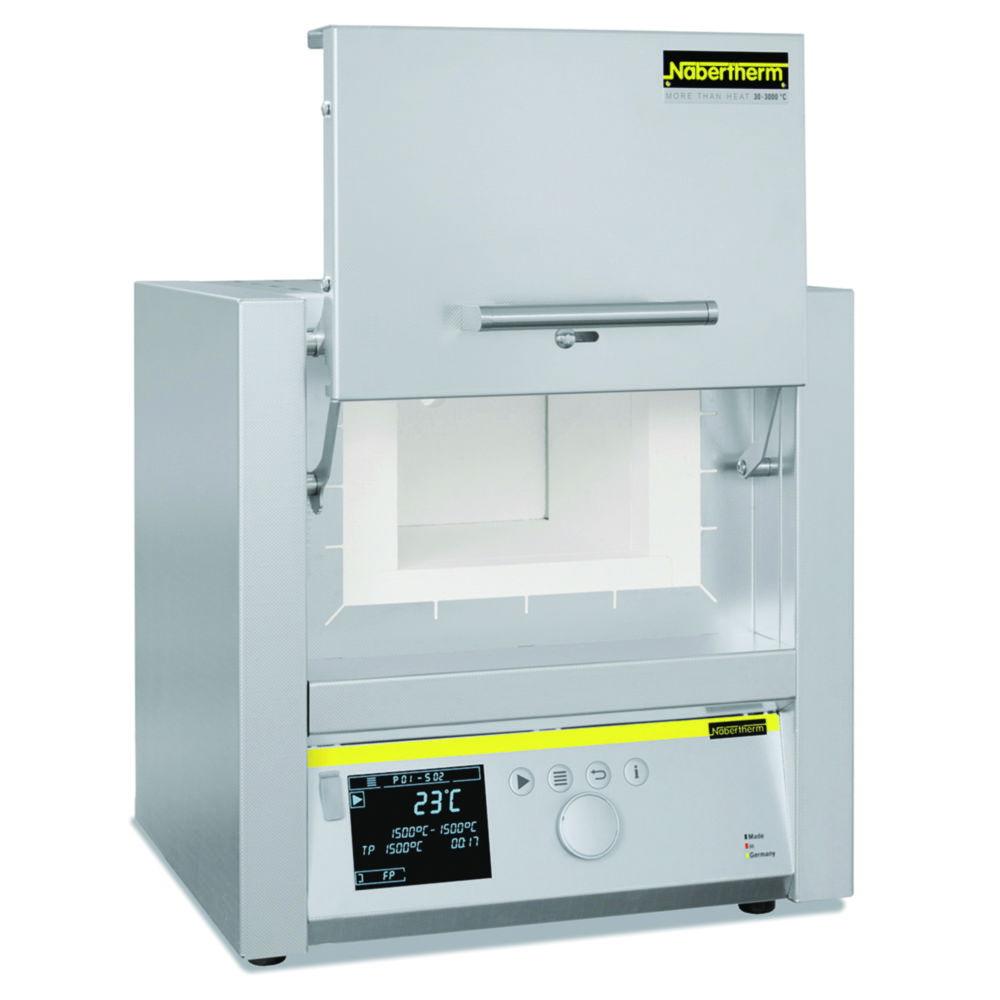

Nabertherm Muffle Furnace LT 15/11/B510 (Temperature up to 1100°C with Lift Door)
Product overview
The Nabertherm Muffle Furnace LT 15/11/B510 is designed for precision heating applications, offering a maximum temperature of 1100°C. Featuring a convenient lift door for easy access, this furnace is ideal for sintering, ashing, and other high-temperature processes in laboratories and industrial settings. With the advanced B510 controller, it ensures reliable and accurate temperature control, making it a trusted choice for demanding thermal treatments.
Key Features:
- Brand: Nabertherm
- Model: LT 15/11/B510
- Max Temperature: 1100°C
- Controller: B510 for precise temperature control
- Lift Door: Provides easy access for loading and unloading materials
- Applications: Ideal for sintering, ashing, and high-temperature laboratory and industrial applications
The Nabertherm Muffle Furnace LT 15/11/B510 offers superior performance for a variety of thermal processes. Its high temperature capacity and user-friendly lift door provide both functionality and ease of use, making it the perfect choice for professionals in need of reliable heating equipment.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace LT 15/11/B510 used for?
It is designed for precision heating applications, offering a maximum temperature of 1100°C. Featuring a convenient lift door for easy access, this furnace is ideal for sintering, ashing, and other high-temperature processes in laboratories and industrial settings. With the advanced B510 controller, it ensures reliable and accurate temperature control, making it a trusted choice for demanding thermal treatments.
2. Is this product suitable for sintering, ashing, and high-temperature laboratory and industrial applications?
Yes. It is designed for sintering, ashing, and high-temperature laboratory and industrial applications, and offers a max temperature of 1100°C to support this kind of work.
3. What max temperature does this product have?
It has a max temperature of 1100°C.
4. What controller and lift door does this product offer?
It offers B510 for precise temperature control, easy access for loading and unloading materials, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace and heating from two sides (three sides for interior volumes of 24, 40 and 60 l).
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorLift door
- Ext. dim. (WxDxH)415 x 555 x 515 mm
- Ext. depth555 mm
- Ext. height515 mm
- Ext. width415 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)230 x 340 x 170 mm
- Int. width230 mm
- Max. temperature1100 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity15 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeLT 15/11/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight40 kg
