Representative image only

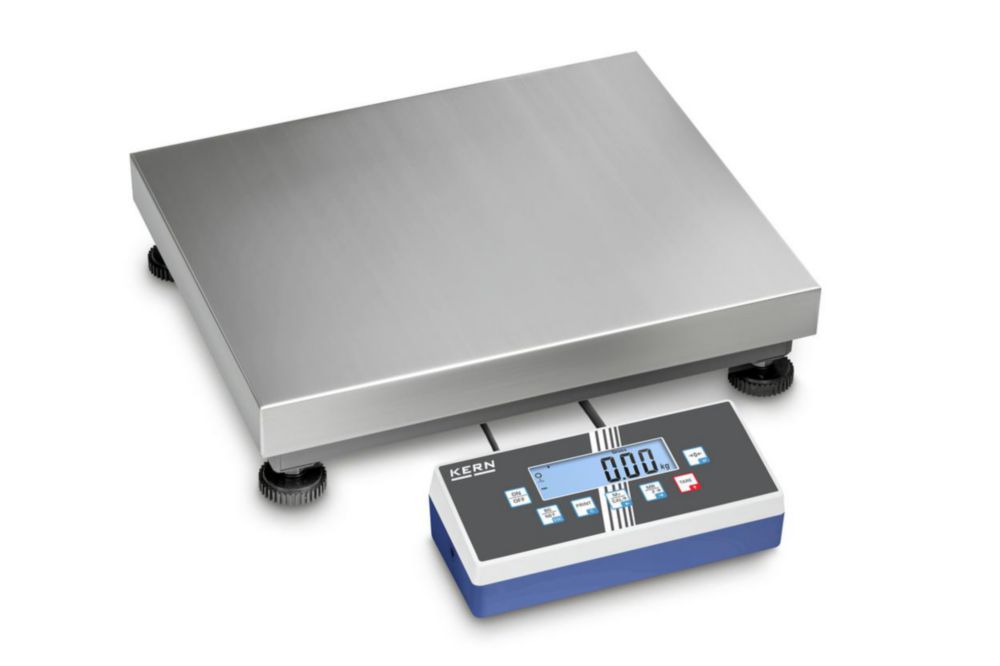

Kern & Sohn Platform Scale IOC 30K-4, Weighing Range 15/30 kg, 0.5 g/1.0 g, 400 x 300 mm
Sold by: LabFriend Taiwan
Available Soon
Part #: 6.322 996Manufacturer #: IOC 30K-4
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Kern & Sohn Platform Scale IOC 30K-4, Weighing Range 15/30 kg, 0.5 g/1.0 g, 400 x 300 mm is designed for reliable and precise weighing in laboratory, production, and industrial environments. Equipped with the Kern & Sohn Communication Protocol (KCP), this scale allows searching and remote control via external devices or computers through the RS-232 interface, supporting efficient integration into automated workflows.
Key Features:
- Brand: Kern & Sohn
- Model: IOC 30K-4
- Weighing Range: 15/30 kg
- Readability: 0.5 g/1.0 g
- Weighing Plate: 400 x 300 mm stainless steel plate
- Construction: Painted steel base with silicone-coated aluminium load cell
- Protection: IP65 rated against dust and water splashes
- Display: Large LCD display
- Interface: RS-232 with Kern & Sohn Communication Protocol (KCP)
- Design: Level indicator and levelling feet for precise setup
- Display Device Size: 268 x 115 x 80 mm
- Application: Suitable for laboratory, industrial, and production weighing tasks
This Kern & Sohn platform scale is a practical choice for users requiring precise measurement, robust construction, and connectivity for integrated weighing systems.
Product Specifications
- HS Code #84238129
- Adjusting programExternal
- Depth300 mm
- Depth weighing plate300 mm
- Dimensions (WxDxH)400 x 300 x 110 mm
- Power supply frequency50/60 Hz
- Height110 mm
- IP codeIP 65
- Linearity±0.0015/0.003 kg
- Material housingPlastic
- Material weighing plateStainless steel
- Max. load15/30 kg
- Max. voltage240 V·AC
- Min. voltage100 V
- Plug typeEU/UK/US
- Power supply100 ... 240 V·AC, 50/60 Hz
- Readability0.0005/0.001 kg
- Reproducibility0.0005/0.001 kg
- TypeIOC 30K-4
- Type of auxiliary energyMains connection
- UNSPSC41111509
- Verified calibrationNot verifiable
- Warranty2 years
- Weighing plate (WxD)400 x 300 mm
- Weight8 kg
- Width400 mm
- Width weighing plate400 mm
