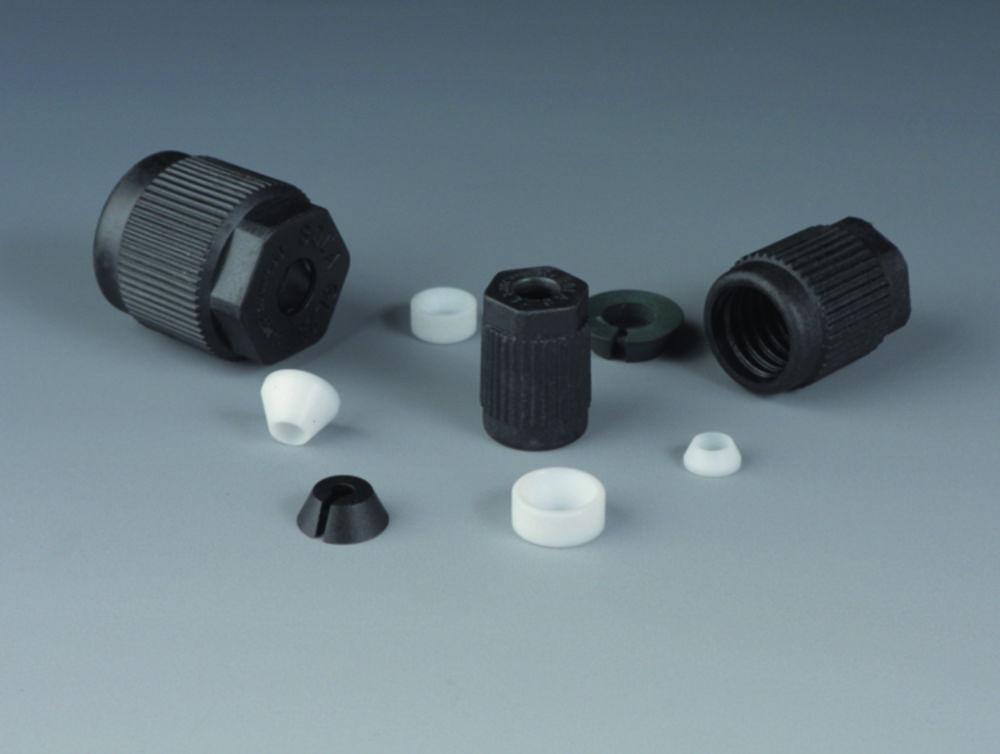

Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS

The Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. This high-quality screw joint is ideal for fixing probes, thermometers, dip tubes, or cables in reaction vessels.

Key Features:

• Brand: Bohlender
• Material: Black PPS (Polyphenylene Sulfide) for enhanced chemical resistance
• Thread Size: GL 25
• Outer Diameter Compatibility: 12.7 mm
• Seal Materials: PTFE sealing wedge and sealing plate, FKM O-ring
• Temperature Resistance: -50°C to 250°C
• Pressure Stability: Up to 10 bar
• Vacuum Compatibility: Suitable for vacuum applications
• Part Number: D 630-84

This screw joint offers excellent chemical resistance, with the medium only coming into contact with PTFE, ensuring durability and reliability in various laboratory applications.

Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS used for?

It is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. This high-quality screw joint is ideal for fixing probes, thermometers, dip tubes, or cables in reaction vessels.

2. Is the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS suitable for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal?

Yes. It is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal, and offers an outer diameter compatibility of 12.7 mm and a pressure stability of up to 10 bar to support this kind of work.

3. What outer diameter compatibility and pressure stability does the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS have?

It has an outer diameter compatibility of 12.7 mm and a pressure stability of up to 10 bar, and is supplied under manufacturer part number D 630-84.

4. What is the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS made from and what features does it include?

It is made from black PPS (Polyphenylene Sulfide) for enhanced chemical resistance. It also offers GL 25, PTFE sealing wedge and sealing plate, FKM O-ring and -50°C to 250°C.

5. How does the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS compare with the Cole-Parmer Pump Heads for Gear Pumps, Z-201, PPS?

For this laboratory application applications, the Bohlender HT Laboratory Screw Joint GL 25 Ø 12.7 mm, SW 27, PPS is differentiated by material Black PPS (Polyphenylene Sulfide) for enhanced chemical resistance and thread size GL 25. The Cole-Parmer Pump Heads for Gear Pumps, Z-201, PPS from Cole-Parmer is a broader alternative in the same application area rather than a direct equivalent. Compare the required specifications, compatibility and workflow requirements before selection.
