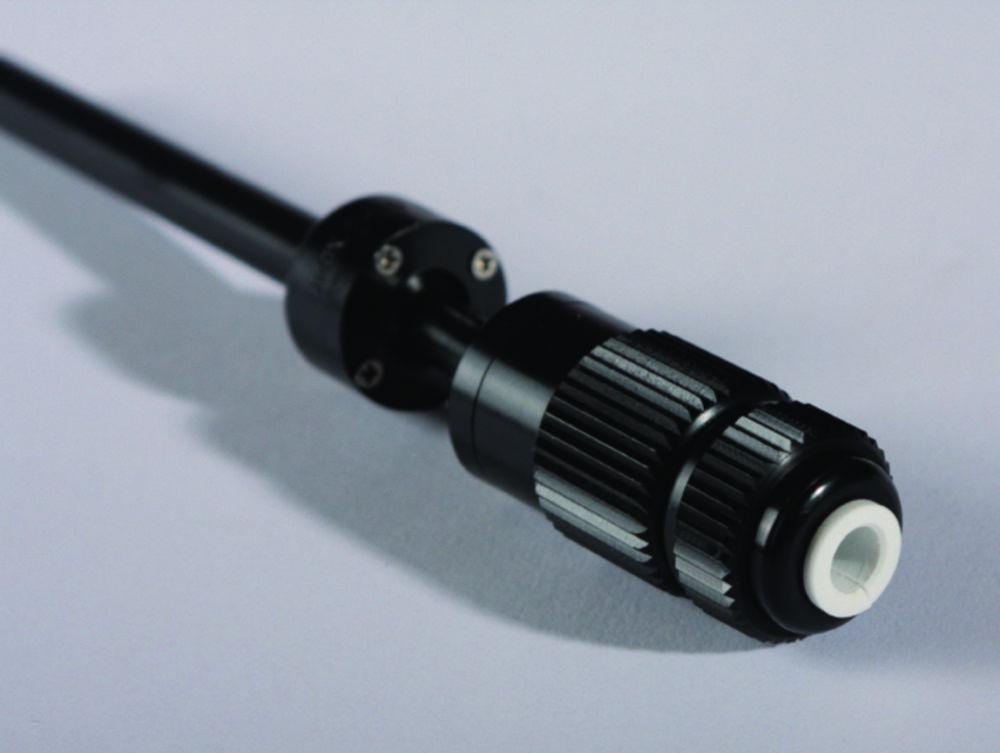

Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm

The Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm are precision-engineered connectors designed to compensate for misalignments between stirrer shafts and drives. Manufactured from high-strength POM plastic, these couplings offer excellent mechanical properties, ensuring reliable and efficient power transmission in laboratory stirring applications.

Key Features:

• Brand: Bohlender
• Material: High-strength POM plastic for durability and chemical resistance
• Opening for Stirrer Shaft: Ø 8 and 10 mm
• Chuck Adapter Diameter: Ø 10 mm
• Overall Length: 190 mm
• Power Transmission: Up to 300 Ncm
• Maximum Speed: Up to 1,200 rpm
• Maximum Axial Misalignment: 10 mm
• Temperature Range: -20°C to +110°C
• Rotation: Suitable for both left and right-handed rotation
• Assembly: Simple screw joint with clamp rings
• Pivot Length: 90 mm (can be shortened by the user)
• Applications: Ideal for balancing misalignment of axes between agitator and stirrer shaft; suitable for glass, metal, or PTFE stirrer shafts
• Packaging: Sold individually

These couplings are essential for laboratories requiring precise and reliable connections in various research and analytical settings.

Frequently Asked Questions

1. What is the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm used for?

It are precision-engineered connectors designed to compensate for misalignments between stirrer shafts and drives. Manufactured from high-strength POM plastic, these couplings offer excellent mechanical properties, ensuring reliable and efficient power transmission in laboratory stirring applications.

2. Is the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm suitable for balancing misalignment of axes between agitator and stirrer shaft; suitable for glass, metal, or PTFE stirrer shafts?

Yes. It is designed for balancing misalignment of axes between agitator and stirrer shaft; suitable for glass, metal, or PTFE stirrer shafts, and offers an overall length of 190 mm and a power transmission of up to 300 Ncm to support this kind of work.

3. What overall length and power transmission does the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm have?

It has an overall length of 190 mm, a power transmission of up to 300 Ncm and a maximum speed of up to 1,200 rpm, and is supplied under manufacturer part number C 398-12.

4. What is the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm made from and what features does it include?

It is made from high-strength POM plastic for durability and chemical resistance. It also offers Ø 8 and 10 mm, Ø 10 mm and -20°C to +110°C.

5. How does the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm compare with the Heidolph Stirrer Shaft Gland NS 29/32 - PTFE?

For stirrer applications, the Bohlender Globe Stirring Couplings, POM Wave Adapter Ø 8 and 10 mm is differentiated by material High-strength POM plastic for durability and chemical resistance and opening for stirrer shaft Ø 8 and 10 mm. The Heidolph Stirrer Shaft Gland NS 29/32 - PTFE from Heidolph is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
