BINDER Constant Climate Chamber, KBF1600-230V, With Large Temperature And Humidity Range

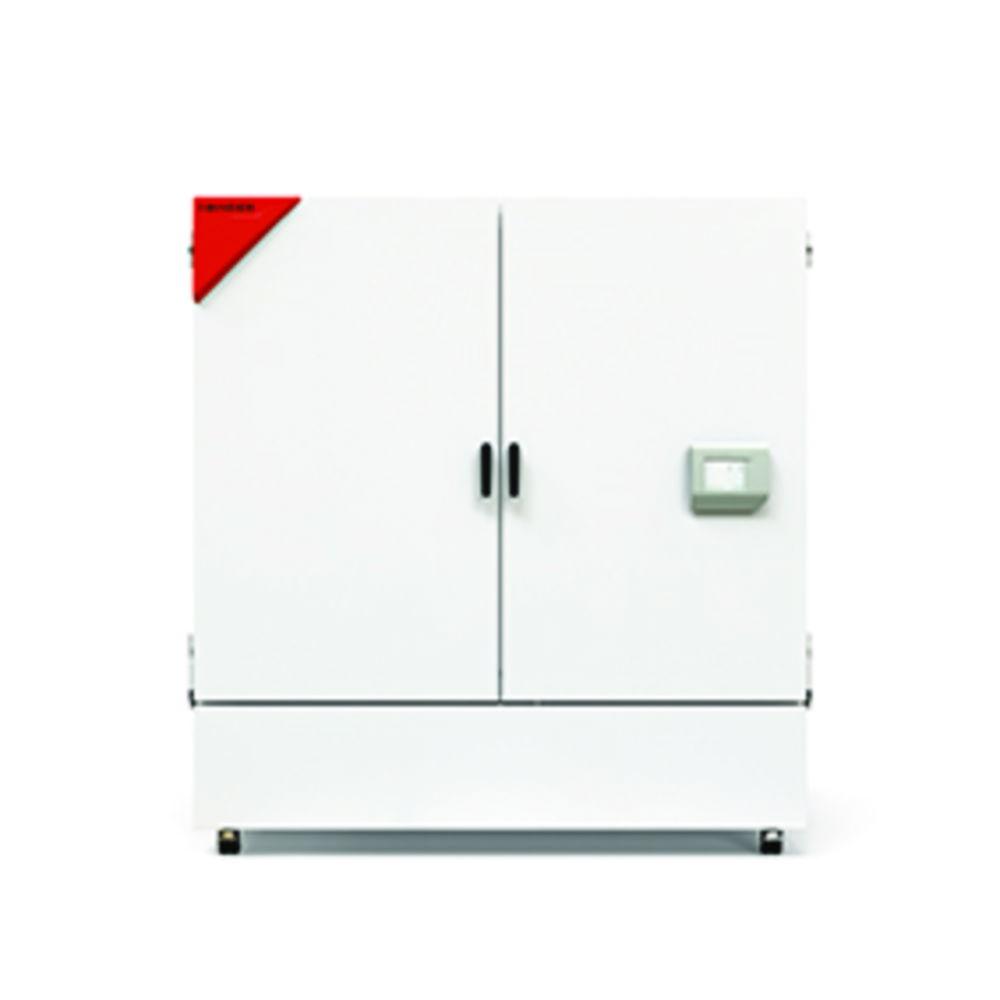

Representative image only

BINDER Constant Climate Chamber, KBF1600-230V, With Large Temperature And Humidity Range

Sold by: LabFriend Taiwan
Available Soon
Part #: 6.523 261Manufacturer #: 9020-0483
Estimated shipping time:Contact us via live chat or via contact us page

NTD 1,661,737

See the available (9) variant products
Product overview

BINDER Constant Climate Chamber, KBF1600-230V, With Large Temperature And Humidity Range offers precise climate control for demanding stability tests and long-term environmental studies. Equipped with APT.line preheating chamber technology, it provides uniform temperature and humidity conditions across a wide operating range. A capacitive humidity sensor with responsive steam humidification ensures accurate control, while inverter cooling technology using the climate-neutral refrigerant R-600a guarantees energy efficiency and environmental sustainability. Built with durable stainless-steel interiors and safety-glass inner doors, this chamber is designed for long-term reliability and ICH-compliant testing.

Key Features:

  • Brand: BINDER
  • Model: KBF1600-230V
  • Technology: APT.line preheating chamber for uniform temperature and humidity distribution
  • Cooling System: Inverter cooling unit with R-600a climate-neutral refrigerant
  • Humidity Control: Capacitive humidity sensor with responsive steam humidification
  • Material: Stainless-steel inner chamber and racks; safety-glass inner doors with metal oxide coating
  • Controller: Intuitive touchscreen interface with time-segment and real-time programming
  • Safety: Class 3.3 temperature safety device (DIN 12880) with visual and acoustic alarms
  • Connectivity: USB and Ethernet interfaces for monitoring and data export
  • Software: Includes BINDER Multi Management Software APT-COM Basic Edition
  • Additional Features: Adjustable fan speed, door heating to prevent condensation, and internal data logger
  • Design: Floor-standing model with robust twin casters and front brakes for stability

Note: Models 260, 470, and 720 can be optionally equipped with LED light modules for ICH photostability or plant-growth testing. Please order light modules separately.

The BINDER Constant Climate Chamber KBF1600-230V provides accurate, energy-efficient, and reliable environmental control, making it an excellent choice for ICH stability testing, quality control, and research applications requiring long-term climate precision.

Product Specifications
  • HS Code #84198998
  • Depth int.847 mm
  • Ext. dim. (WxDxH)1,795 x 1,175 x 1,951 mm
  • Ext. depth1175 mm
  • Ext. height1951 mm
  • Ext. width1795 mm
  • Power supply frequency50/60 Hz
  • Height int.1250 mm
  • Int. Dim. (WxDxH)1,521 x 847 x 1,250 mm
  • Int. width1521 mm
  • Material insertsStainless steel
  • Material interiorStainless steel
  • Max. no. of inserts16
  • Max. relative humidity80 %
  • Max. temperature70 °C
  • Max. voltage240 V
  • Min. relative humidity10 %
  • Min. temperature0 °C
  • Min. voltage220 V
  • Nominal capacity1610 l
  • Plug typeEU
  • Power supply220 ... 240 V, 50/60 Hz
  • Rated capacity1.7 kW
  • Relative humidity10 ... 80 %
  • Temperature stability±0,1 K (25 °C)
  • Temperature0 ... 70 °C
  • TypeKBF 1600
  • Type of auxiliary energyMains connection
  • Weight438 kg
  • With CO₂ controlNo
