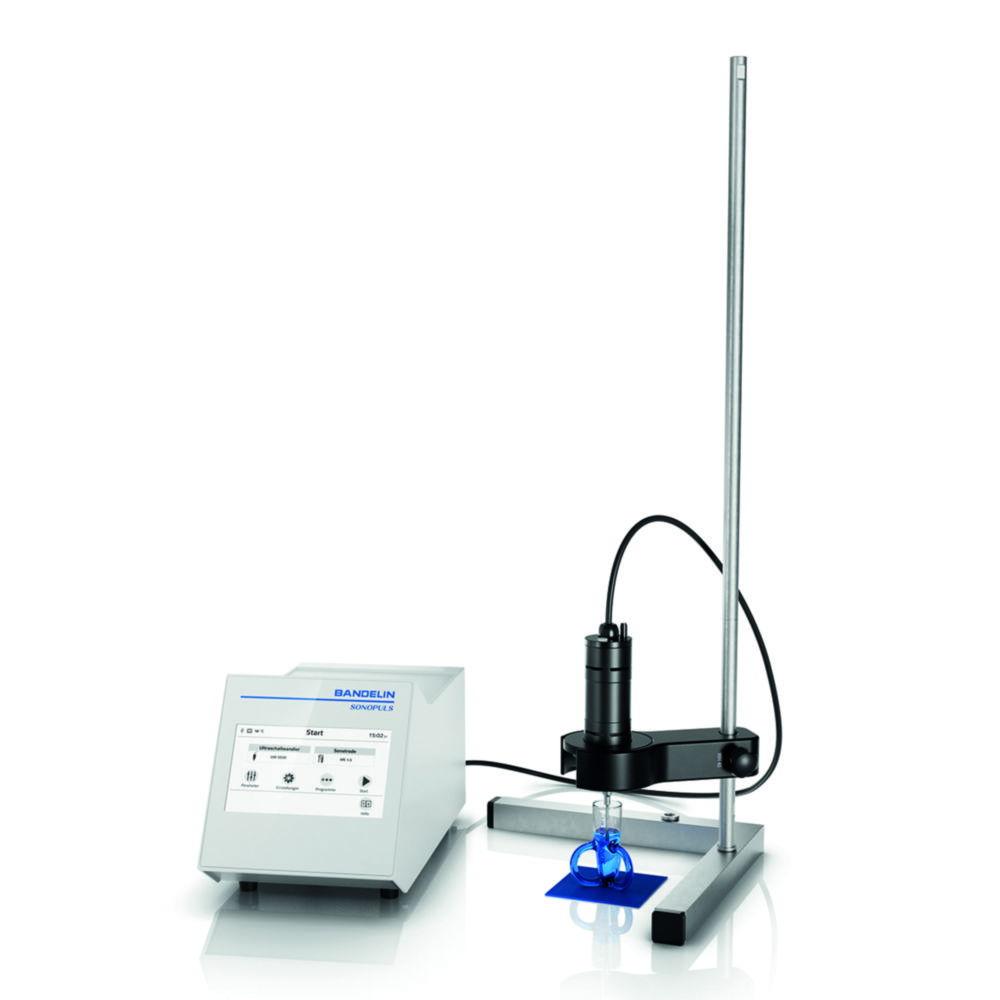

Bandelin SONOPULS HD 5020 Set
Representative image only

Bandelin SONOPULS HD 5020 Set

Sold by: LabFriend Taiwan
Available Soon
Part #: 4.686 319Manufacturer #: 15020
Estimated shipping time:Contact us via live chat or via contact us page

NTD 188,185

See the available (3) variant products

Product overview

The Bandelin SONOPULS HD 5020 Set is a ready-to-operate ultrasonic homogeniser set for volumes from 0.1 to 10 mL. Depending on the sonotrode used, the set is suitable for volumes from 0.1 to 25 mL, making it practical for small-volume laboratory sample preparation applications.

Key Features:

  • Brand: Bandelin
  • Product Type: Ultrasonic homogeniser set
  • Range: SONOPULS
  • Model: HD 5020 Set
  • Volume Range: 0.1 to 25 mL depending on the sonotrode used
  • Ready-To-Operate Set Range: 0.1 to 10 mL
  • Included Generator: Ultrasound generator GM 5050
  • Included Converter: Ultrasonic converter UW 5020
  • Included Sonotrode: Titanium sonotrode MS 1.5, Ø 1.5 mm
  • Optional Accessories: Temperature sensor and further titanium sonotrodes with Ø 2.0 mm and Ø 2.5 mm available separately

This Bandelin SONOPULS HD 5020 Set is suitable for users requiring a ready-to-operate ultrasonic set for small-volume laboratory applications with compatible sonotrode options.

Product Specifications

  • HS Code #84798200
  • Amplitude10 ... 100 %
  • Depth380 mm
  • Power supply frequency50/60 Hz
  • Height215 mm
  • IP codeIP 30
  • Max. amplitude100 %
  • Max. voltage240 V
  • Max. working volume10 ml
  • Min. amplitude10 %
  • Min. voltage100 V
  • Min. working volume0.1 ml
  • Plug typeEU
  • Power setting range2...20 W
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity20 W
  • TypeSONOPULS HD 5020
  • Type of auxiliary energyMains connection
  • Ultrasonic frequency30 kHz
  • UNSPSC41102914
  • Width195 mm
  • Working volume0.1 ... 10 ml
