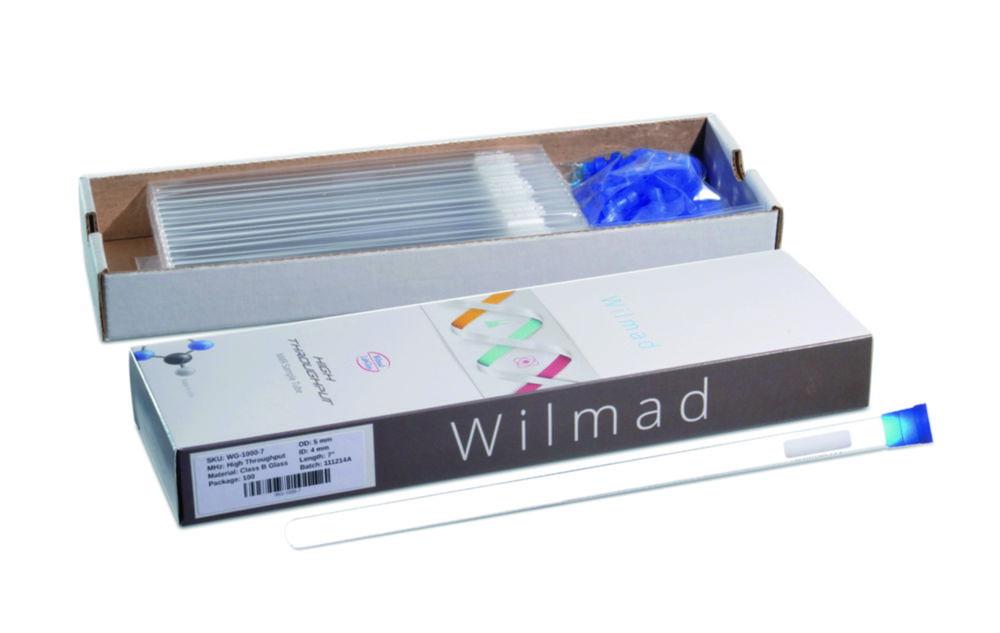

Representative image only
5 mm Bruker SampleJet NMR Tube w/ SampleJet Cap, 178mm L, High-Throughput
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.683 454Manufacturer #: WG-1000-7-SJ
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The thin-walled high-throughput Wilmad® NMR tubes have an average camber of 60 microns to guarantee the clarity of the spectrum for small molecule (MW <250) samples up to 600 MHz. Designed for routine use in most low to mid field NMR spectrometers.
- Made from borosilicate glass, ASTM E438 Type 1 Class B standard
- Camber and concentricity values listed are the Total Indicator Reading (TIR)
- Includes disposable caps
- WG-1000-7-SJ is supplied with authentic Bruker SampleJet cap
Product Specifications
- HS Code #70179000
- Camber60 µm
- Ext. Ø4.947 mm ± 0.019
- Ext. Ø4.947 mm
- Frequency600 MHz
- Int. Ø4.1 mm
- Int. Ø4.1 mm
- Length178 mm
- MaterialBorosilicate
- Max. frequency600 MHz
- Tolerance ext. Ø0.019 mm
- Wall thickness0,43 mm
Downloads
- SP Scienceware Wildmad LabGlass 2020 NMR CatalogDownload
