Representative Image

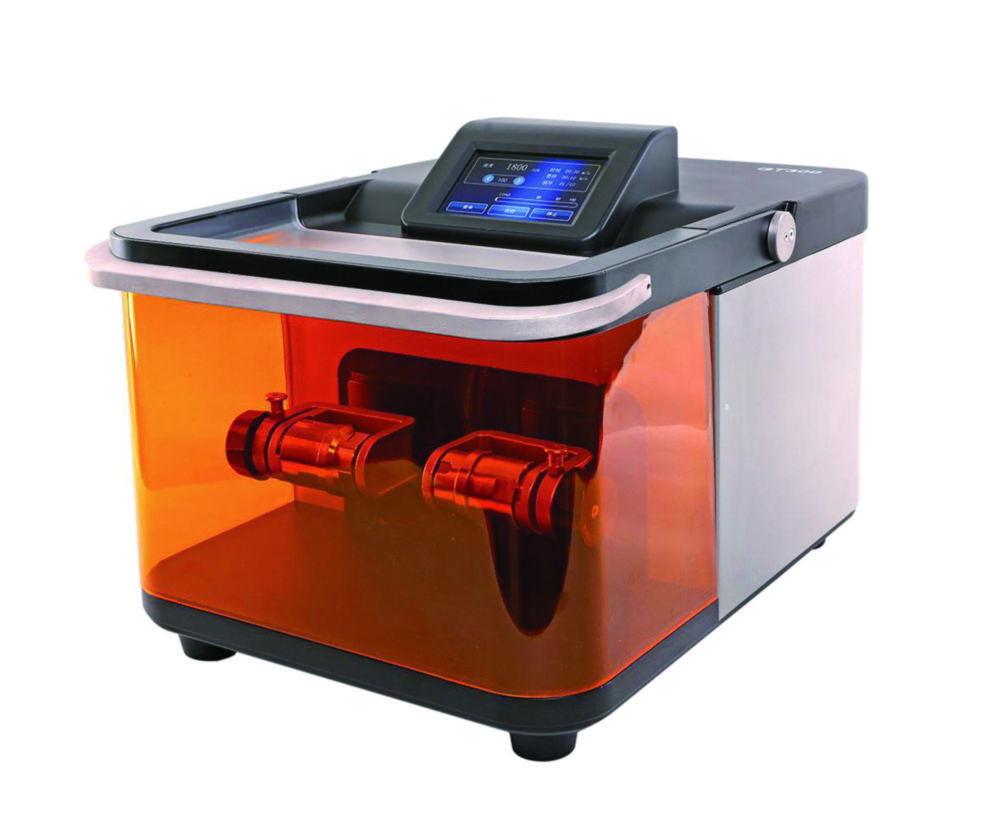

Powteq Micro Ball Mill GT300 220V, 50Hz

Brand:Powteq

Specifications

HS Code #
84798200
Depth
480 mm
Dimensions (WxDxH)
380 x 480 x 281 mm
Feed particle size
10 mm
Power supply frequency
50 Hz
Height
281 mm
Material grinding chamber
Stainless steel
Max. feed particle size
10 mm
Max. final fineness
5 µm
Max. vibration frequency
30 Hz
Max. voltage
220 V

NTD 303,083

Inc. VAT

Available soon

Product description

The Powteq Micro Ball Mill GT300 220V, 50Hz is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.

Key Features:

  • Brand: Powteq
  • Model: GT300
  • Power Supply: 220V, 50Hz
  • Function: Grinding, homogenizing, and mixing of various sample types
  • Applications: Suitable for material science, chemistry, biology laboratories, including cell disruption and DNA/RNA extraction
  • Processing Time: Average of 30 seconds per sample
  • Grinding Stations: Two stations for bowls of 5 to 50 ml volume
  • Speed Range: Variable speed from 180 to 1800 min-1
  • Control: LCD display with programmable grinding parameters (up to 10 stored programs)
  • Safety: Transparent cover and safety interlock
  • Construction: Grinding chamber, clamping system, and swivel arm made of stainless steel
  • Drive: Maintenance-free direct drive system

Scope of Supply:

  • Micro Ball Mill GT300 unit
  • Note: Grinding bowls and balls are not included and must be ordered separately

The Powteq Micro Ball Mill GT300 delivers precision milling with high performance and versatility, making it a valuable asset for laboratory research and testing.

Accessories

Accessories for Micro Ball Mill GT300

ProductDescriptionForMfr#Part#AvailabilityPrice
Gasket for 25 ml grindig jars made of stainless steelGT30011.863.10404.669 599In stockNTD 470
Jar wrenchGT30002.863.00014.669 598NTD 7,657
Cryo kit for cooling the grinding jars with liquid nitrogenGT30002.863.00076.319 530NTD 26,331
PTFE adapter for 5 plastic reaction vials 1.5/2.0 mlGT30002.863.00086.319 532NTD 23,803
PTFE adapter for 10 plastic reaction vials 1.5/2.0 mlGT30002.863.00096.319 534NTD 18,710
PTFE adapter for 6 plastic reaction vials 5.0 mlGT30002.863.00106.319 535NTD 22,105
PTFE adapter for 6 PC reaction vials 5.0 mlGT30002.863.00116.319 536NTD 22,105

Grinding balls

ProductMaterialØMfr#Part#AvailabilityPrice
Stainless steel15 mm02.863.01084.669 611In stockNTD 8,091
Agate5 mm02.863.01304.669 615In stockNTD 17,013
Zirconia10 mm02.863.01434.669 624NTD 17,013
Agate30 mm02.863.01354.669 620NTD 2,059
Agate10 mm02.863.01314.669 616NTD 17,013
Stainless steel5 mm02.863.01044.669 607NTD 8,091
Agate40 mm02.863.01364.669 621NTD 2,853
Stainless steel30 mm02.863.01114.669 614NTD 4,082
Agate25 mm02.863.01344.669 619NTD 1,156
Zirconia3 mm02.863.01404.669 622NTD 14,015
Stainless steel2 mm02.863.01024.669 605NTD 14,448
Stainless steel3 mm02.863.01034.669 606NTD 14,448
Stainless steel25 mm02.863.01104.669 613NTD 2,059
Stainless steel10 mm02.863.01064.669 609NTD 8,091
Agate20 mm02.863.01334.669 618NTD 1,156
Agate15 mm02.863.01324.669 617NTD 1,156
Stainless steel12 mm02.863.01074.669 610NTD 8,091
Zirconia5 mm02.863.01414.669 623NTD 17,013
Zirconia20 mm02.863.01454.669 626NTD 3,431
Stainless steel1 mm02.863.01014.669 604NTD 15,712
Stainless steel20 mm02.863.01094.669 612NTD 795
Zirconia15 mm02.863.01444.669 625NTD 2,962
Stainless steel7 mm02.863.01054.669 608NTD 8,091

Frequently asked questions

It is an advanced milling tool designed for high-precision grinding, homogenizing, and mixing of laboratory samples. It is ideal for a wide range of materials including hard, medium-hard, soft, elastic, and fibrous samples. The GT300 is also suitable for cell disruption and DNA/RNA extraction, offering short processing times and high sample throughput. Its grinding containers perform horizontal, circular-arc oscillations, while grinding balls ensure effective sample processing. The unit features digital control via an LCD display, programmable grinding parameters, and safety interlocks for reliable and safe operation.
