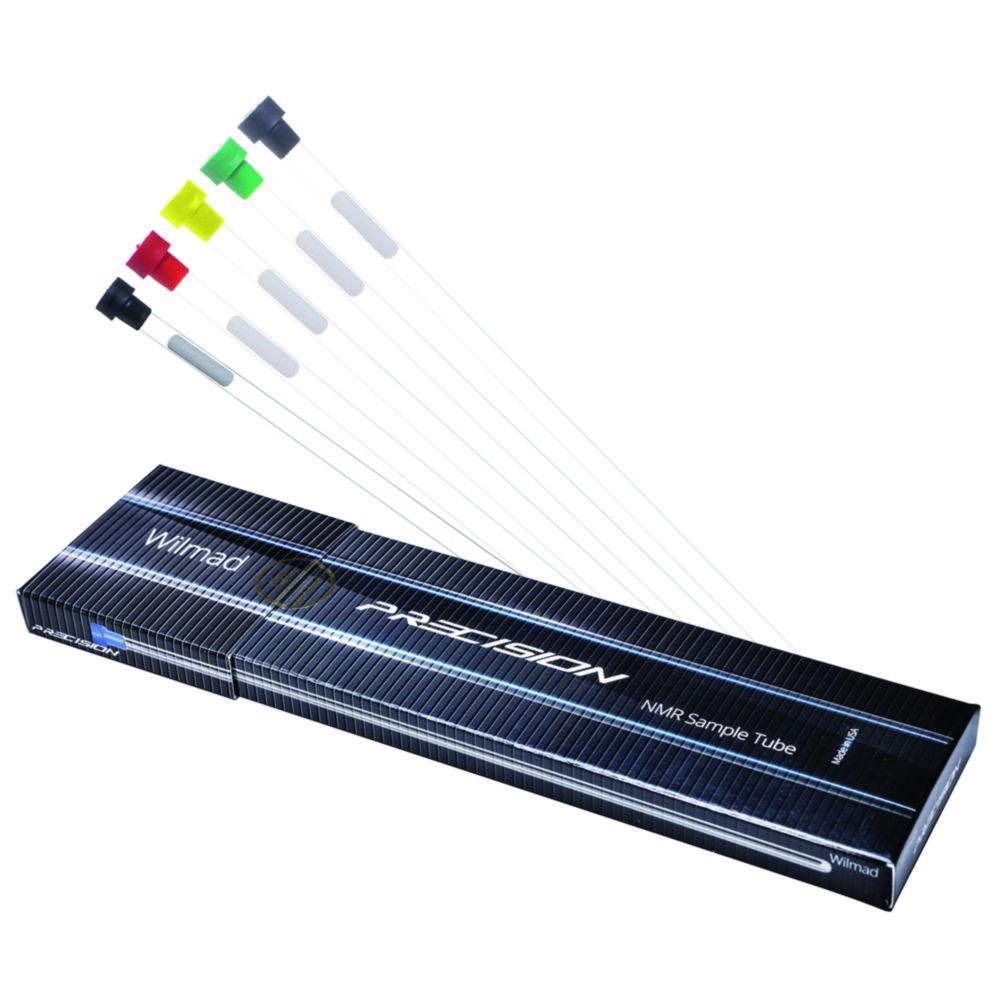

Representative image only
NMR Sample Tube 8 L 5 mm Precision Thin Wall 400Mhz, pack of 5
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.683 072Manufacturer #: 527-PP-8-5
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Thin-walled Precision NMR tubes. To maximize Signal-Noise-Ratio, Precision NMR tubes have minimal paramagnetic impurities that would impact shimming. For experiments requiring critical shimming quality (high/ultrahigh field, nonspinning, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples).
- Made from borosilicate glass, ASTM E438 Type 1 Class A
- Hydrolytic class 1
- Inner surface is resistant to strong acid and base at ambient temperature
- For temperatures up to 230 °C and within a temperature step of 120 °C
- Include disposable caps
Product Specifications
- HS Code #70172000
- Camber25 µm
- Concentricity25 µm
- Ext. Ø4.9635 mm ± 0.0065
- Ext. Ø4.9635 mm
- Frequency400 MHz
- Int. Ø4.2065 mm ± 0.0065
- Int. Ø4.2065 mm
- Length203 mm
- MaterialBorosilicate
- Max. frequency400 MHz
- Tolerance ext. Ø0.0065 mm
- Tolerance int. Ø0.0065 mm
- Wall thickness0,38 mm
