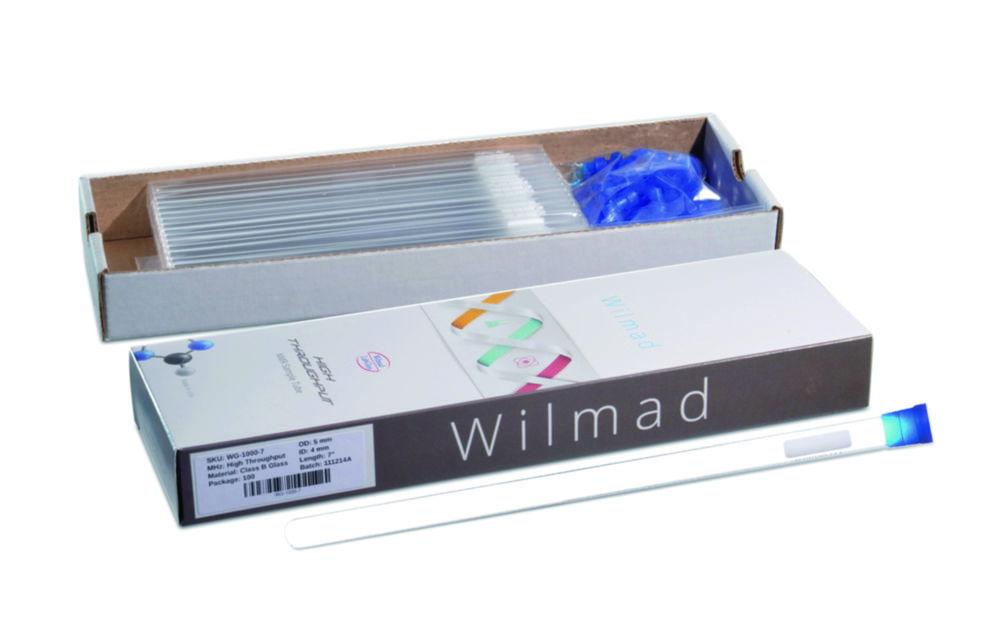

Economy NMR Sample Tubes 8" L, high-throughput 5 mm, with cap, pack of 100
Representative image only

Economy NMR Sample Tubes 8" L, high-throughput 5 mm, with cap, pack of 100

Sold by: LabFriend Taiwan
Available Soon
Part #: 6.287 511Manufacturer #: WG-1000-8
Estimated shipping time:Contact us via live chat or via contact us page

NTD 14,737

See the available (2) variant products
Product overview
The thin-walled high-throughput Wilmad® NMR tubes have an average camber of 60 microns to guarantee the clarity of the spectrum for small molecule (MW <250) samples up to 600 MHz. Designed for routine use in most low to mid field NMR spectrometers.

  • Made from borosilicate glass, ASTM E438 Type 1 Class B standard

  • Camber and concentricity values listed are the Total Indicator Reading (TIR)

  • Includes disposable caps

  • WG-1000-7-SJ is supplied with authentic Bruker SampleJet cap
Product Specifications
  • HS Code #70172000
  • Camber60 µm
  • Ext. Ø4.947 mm ± 0.019
  • Ext. Ø4.947 mm
  • Frequency600 MHz
  • Int. Ø4.1 mm
  • Int. Ø4.1 mm
  • Length203 mm
  • MaterialBorosilicate
  • Max. frequency600 MHz
  • Tolerance ext. Ø0.019 mm
  • Wall thickness0,43 mm
Downloads
  • SP Scienceware Wildmad LabGlass 2020 NMR CatalogDownload
