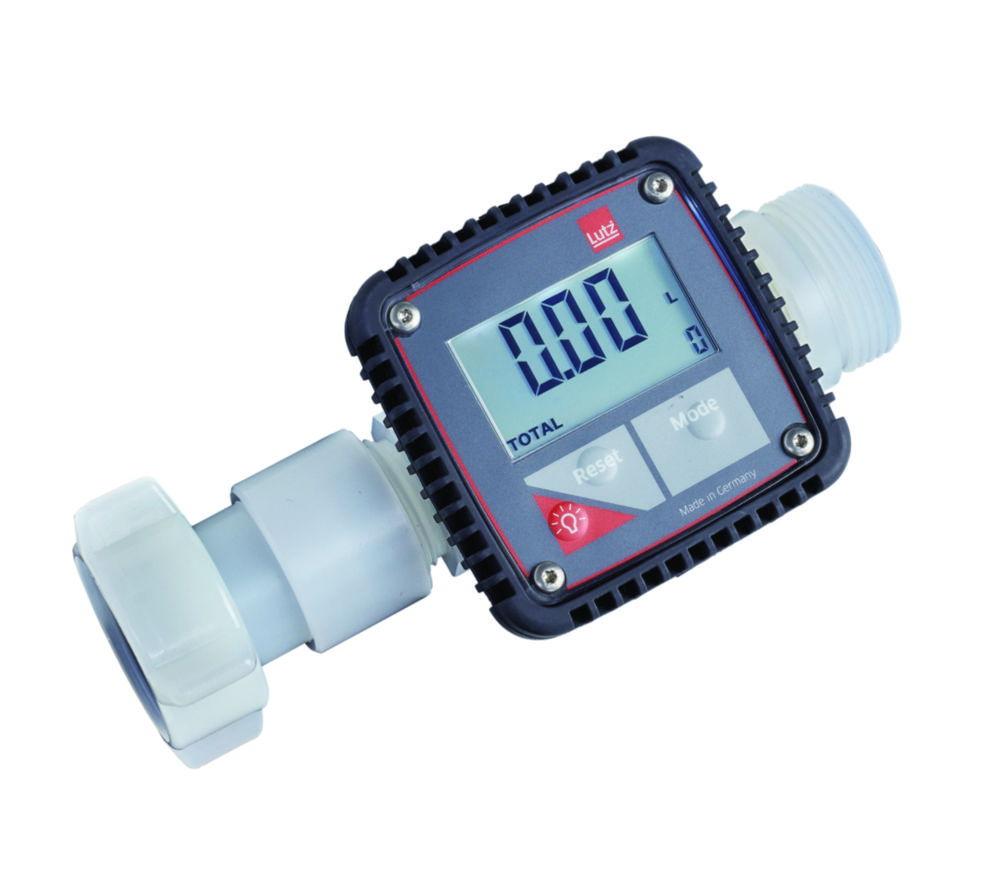

Representative image only
Flow meter TR3-PVDF range: 5-120l / min., operating pressure 10bar viscosity: max. 40 mPas, connection: G 1 1/4
Sold by: LabFriend Taiwan
Available Soon
Part #: 6.311 934Manufacturer #: 0213-060
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Can be combined with all drum and container pumps. For thin-bodied fluids.
- Measurement according to the turbine wheel principle
- Free-rotatable after assembly
- Variable display alignment
- Large illuminated display
- Simultaneous display of subset (4-digit) and total quantity (7-digit)
- Display of the partial and total volume
- Customary 1.5 V batteries (AAA)
Product Specifications
- HS Code #90282000
- Battery/rechargeable battery2 x 1.5 V, AAA
- Connection sizeG 1 ¼
- Designation ANSIAAA
- IP codeIP 65
- Material housingPVDF
- Max. pressure10 bar
- Max. Viscosity40 mPa·s
- Max. voltage battery/ rechargeable battery1.5 V
- Max. volume flow rate120 l/min
- Min. viscosity0.8 mPa·s
- No. of batteries/ rechargeable batteries2
- TypeTR3-PVDF
- Type of auxiliary energyBattery
- Viscosity0.8 ... 40 mPa·s
