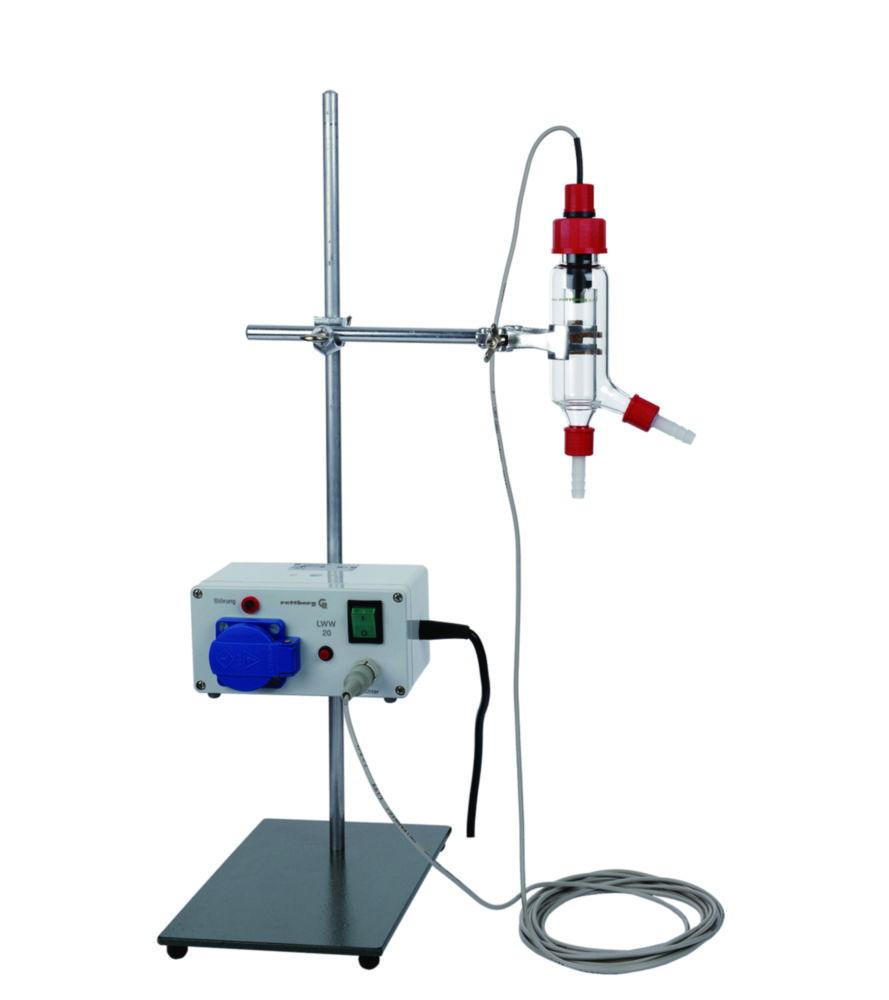

Water flow monitor LWW20

With 230 V/60 Hz/16 A/3,2 kW (max.), on / off relay and coolant water sensor made of 3.3 borosilicate glass with dual platinum electrode. Switches connected apparatus (e.g. a heater for a solvent distillation system) off permanently if it detects a shortage of cooling water. An optical and acoustic alarm signal is emitted simultaneously. The relay is connected to the power supply cable of the electrical device and the sensor is connected into the outlet line of the cooling water (10 mm bore tubing connectors are provided). Switch cable length: 5 metres.
Note: Supplied without the stand and accessories shown.
