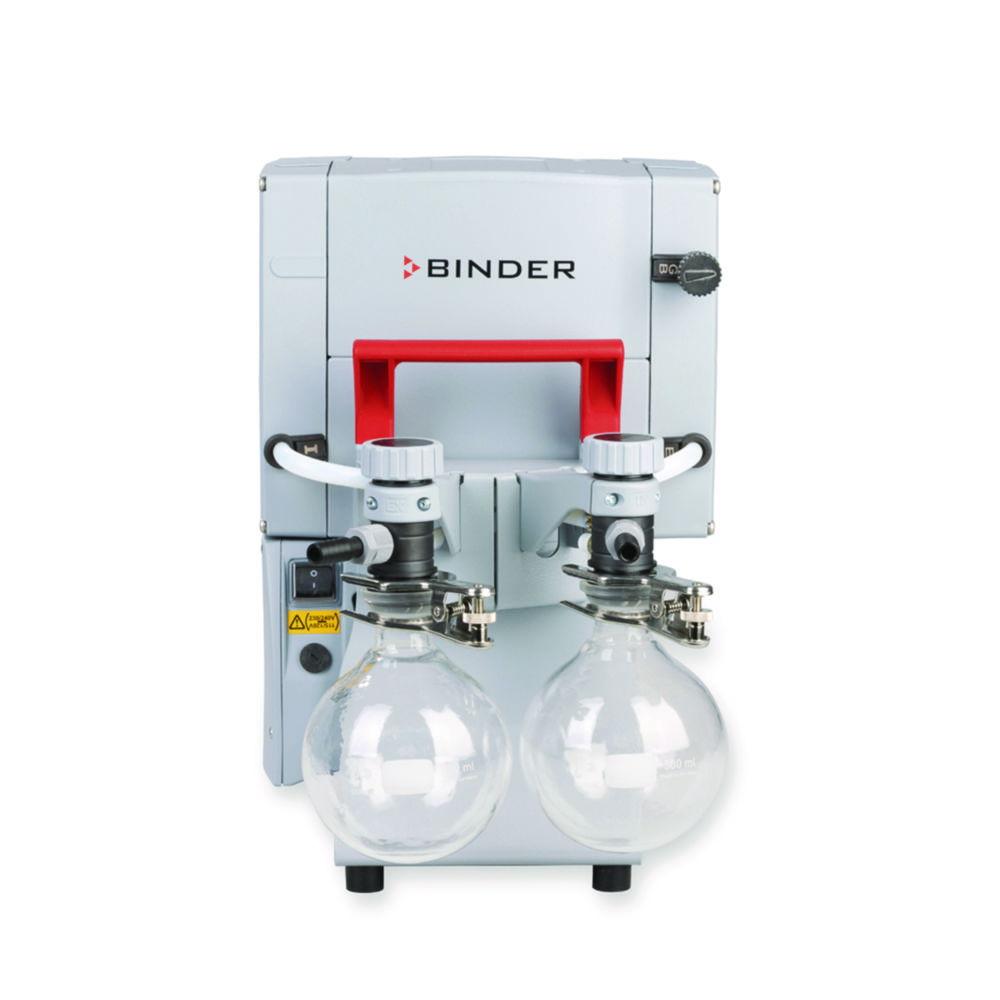

Pump stand VP2
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.714 141Manufacturer #: 5013-0257
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The VP2 vacuum pump, together with the VD series vacuum drying ovens, is ideally suited for drying aqueous and non-flammable solvents.
- Resistant to a wide range of chemicals
- Very quiet and low-vibration operation
- Designed for S1 operating mode (continuous operation)
- Suction and pressure-side separators for collecting condensate
Product Specifications
- HS Code #84141089
- Connection pressure sideDN 10
- Connection suction sideDN 10
- Depth319 mm
- Dimensions (WxDxH)243 x 319 x 309 mm
- Flow rate3.4 m³/h
- Power supply frequency50/60 Hz
- Height309 mm
- IP codeIP 40
- Max. voltage230 V
- Min. voltage200 V
- Noise level45 db(A)
- Power supply200 ... 230 V, 50/60 Hz
- Rated capacity0.25 kW
- TypeVP2
- Type of auxiliary energyMains connection
- Ultimate vacuum with gas ballast3 mbar
- UNSPSC40151502
- Weight13.6 kg
- Width243 mm
- Manufacturer Article Number5013-0257
