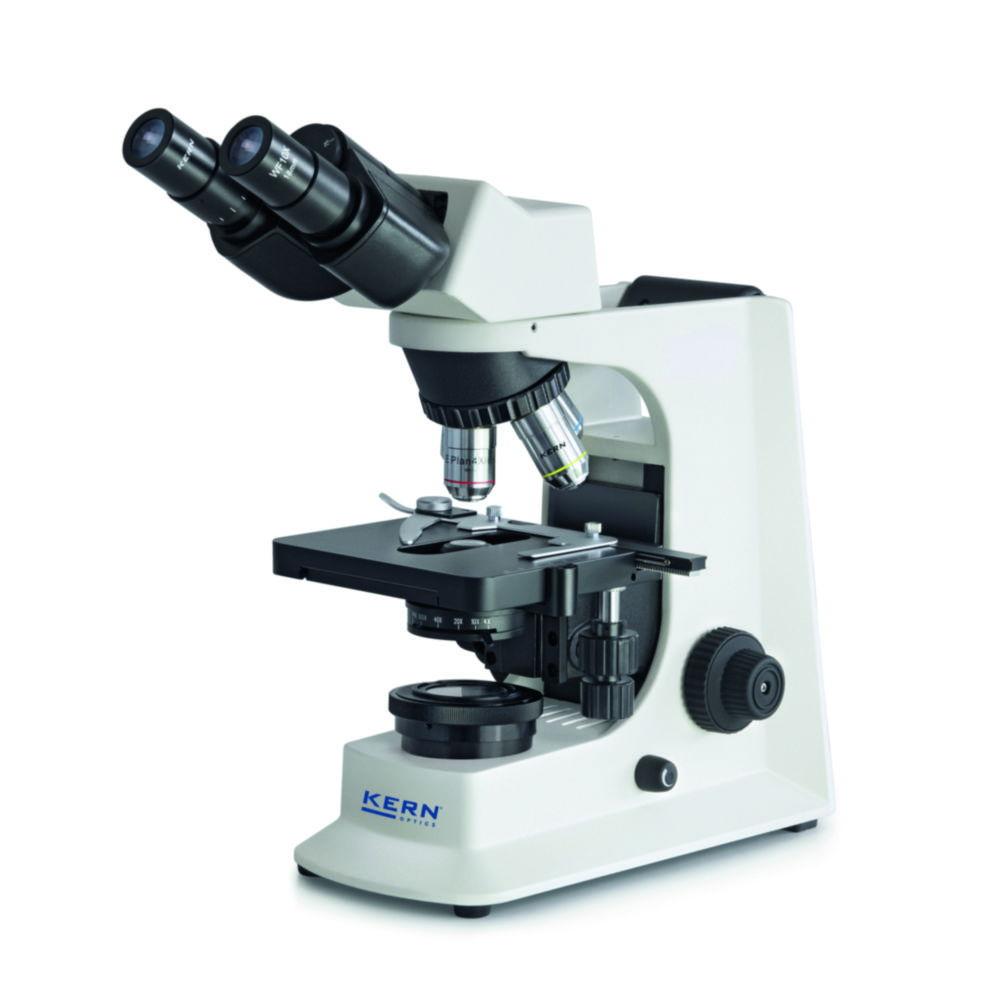

Kern Phase Contrast Microscope Binocular InfE-Plan 4/100-InfPlanPH 10/40. WF10x20. 3W LED
Product overview
The Kern Phase Contrast Microscope Binocular InfE-Plan 4/100-InfPlanPH 10/40 is a high-performance microscope designed for advanced phase contrast imaging. It comes equipped with a WF10x20 eyepiece and a 3W LED light source for bright, clear illumination. Ideal for use in laboratory settings, this microscope is engineered to provide exceptional clarity and precision in biological and research applications. The binocular design allows for comfortable viewing over extended periods, making it perfect for both educational and professional use.
Key Features:
- Brand: Kern
- Model: InfE-Plan 4/100-InfPlanPH 10/40
- Eyepiece: WF10x20
- Light Source: 3W LED for bright, energy-efficient illumination
- Application: Phase contrast imaging for biological and research use
- Design: Binocular for comfortable extended viewing
- Lens Configuration: 4/100 and 10/40 magnification
Scope of Supply:
- Microscope
- Protective dust cover
- Eye cups
- User instructions
This Kern microscope is an essential tool for laboratories that require high-quality phase contrast imaging and precise visual analysis.
Product Specifications
- HS Code #90118000
- CondenserAbbe N.A. 1,25
- Depth200 mm
- Depth stage130 mm
- Dimensions (WxDxH)395 x 200 x 380 mm
- Power supply frequency50 Hz
- Height380 mm
- Inclination angle tube30°
- Interpupillary distance50 ... 75 mm
- Light typeLED
- Magnification eyepiecesHWF 10×/20 mm
- Magnification objectives4x, PH10x, PH40x, 100x
- Max. interpupillary distance75 mm
- Max. voltage230 V
- Min. interpupillary distance50 mm
- Plug typeEU
- Power supply230 V, 50 Hz
- Revolving nosepiece4-fold
- Stage (WxD)145 x 130 mm
- TubeBinocular
- TypeOBL 146
- Type of auxiliary energyMains connection
- Type of illuminationTransmitted light
- Weight6.7 kg
- Width395 mm
- Width stage145 mm
