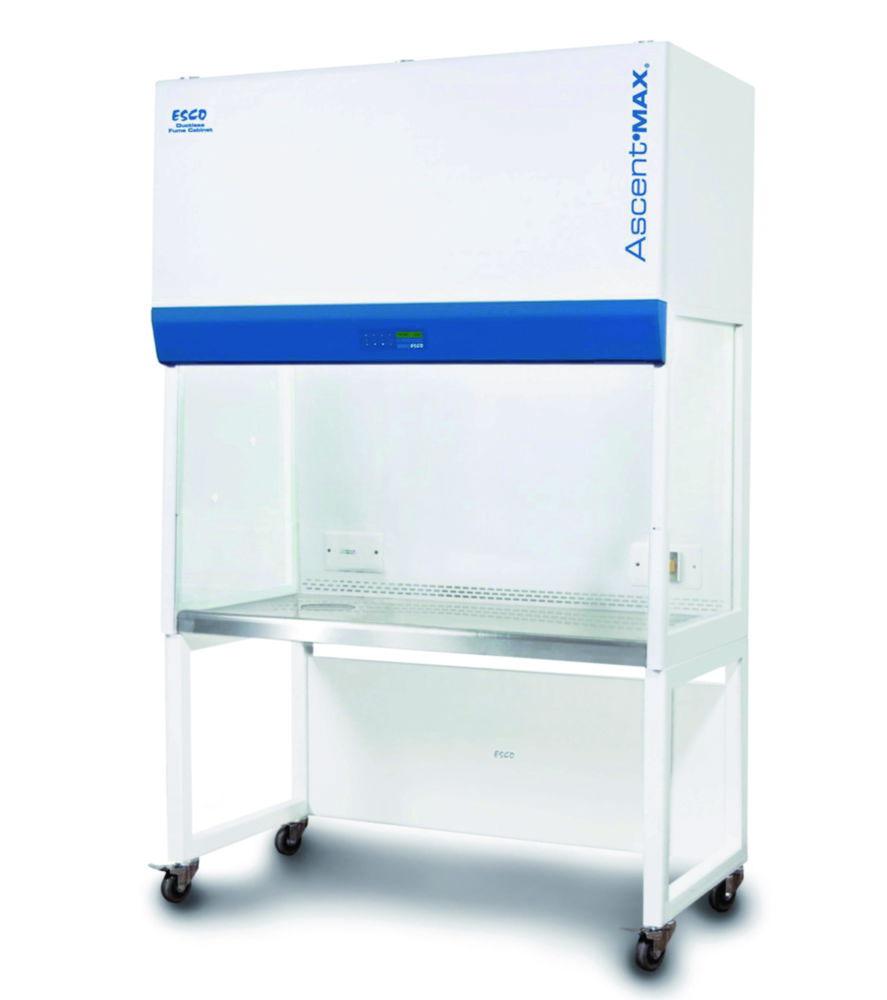

ESCO Ascent Max Laboratory Fume Hood ADC-5E1, 1.5m, Air Circulation, 1 Activated Carbon Filter + 1 HEPA Filter
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.658 997Manufacturer #: 2040075
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The ESCO Ascent Max Laboratory Fume Hood ADC-5E1 is a high-performance, ductless fume hood designed to provide operator and environmental protection by filtering out chemical fumes and recycling clean air directly back into the laboratory. With a width of 1.5 meters, it offers an expansive work area and features advanced filtration and airflow systems to ensure safety and efficiency.
Key Features:
- Brand: ESCO
- Model: ADC-5E1
- Air Circulation: Ductless system with activated carbon and HEPA filters
- Dimensions: External: 1645 x 736 x 1455 mm; Internal: 1575 x 596 x 765 mm
- Airflow: Inflow: 0.4 m/s; Downflow: 0.32 m/s
- Filtration: Main Nanocarb™ activated carbon filter and secondary HEPA filter with 99.99% efficiency at 0.3 µm
- Construction: Electrogalvanized steel with white oven-baked epoxy-polyester Isocide™ antimicrobial powder coating; stainless steel worktop
- Additional Features: Sentinel™ microprocessor control system with LCD display, air velocity alarm, 24-hour clock, fluorescent lighting, easy filter change mechanism
- Compliance: Independently tested and complies with AFNOR NFX 15-211 standard
This fume hood is ideal for laboratories requiring a reliable, ductless solution for chemical fume and particulate filtration, combining safety, efficiency, and ease of use.
Product Specifications
- HS Code #84213925
- Amperage4 A
- Depth int.596 mm
- Ext. dim. (WxDxH)1,645 x 736 x 1,455 mm
- Ext. depth736 mm
- Ext. height1455 mm
- Ext. width1645 mm
- Power supply frequency50 Hz
- Height int.765 mm
- Int. Dim. (WxDxH)1,575 x 596 x 765 mm
- Int. width1575 mm
- Max. voltage240 V·AC
- Min. voltage220 V·AC
- Power supply220 ... 240 V·AC, 50 Hz , 4 A
- Rated capacity300 W
- TypeADC-5E1
Downloads
- Esco Ascent Series Ductless Fume Hoods Data SheetDownload
Variant products
Products related to this item (11)
product | Mfr # | Part # | Product name | Type | Rated capacity | Price | Availability | |
2040018 | 4.658 982 | ESCO Ascent Max Laboratory Fume Hood ADC-2B1 Air Circulation, 0.6m | ADC-2B1 | 128 W | 293,908 | |||
2040033 | 4.658 987 | ESCO Ascent Max Laboratory Fume Hood ADC-3C1 Air Circulation, 0.9m, 2 Activated Carbon Filters
| ADC-3C1 | 236 W | 303,264 | |||
2040039 | 4.658 992 | ESCO Ascent Max Laboratory Fume Hood ADC-3E1 Air Circulation, 0.9m, 1 Activated Carbon Filter + 1 HEPA Filter
| ADC-3E1 | 236 W | 342,490 | |||
2040057 | 4.658 996 | ESCO Ascent Max Laboratory Fume Hood ADC-4E1 Air Circulation, 1.2m, 1 Activated Carbon Filter (Not Included) + 1 HEPA Filter (Included)
| ADC-4E1 | 264 W | 342,490 | |||
2040060 | 4.658 985 | ESCO Ascent Max Laboratory Fume Hood ADC-5B1, 1.5m, Air Circulation, Activated Carbon Filter | ADC-5B1 | 300 W | 312,835 | |||
2040024 | 4.658 983 | ESCO Ascent Max Laboratory Fume Hood ADC-3B1, 0.9m, Air Circulation, Activated Carbon Filter | ADC-3B1 | 236 W | 293,908 | |||
2040051 | 4.658 989 | ESCO Ascent Max Laboratory Fume Hood ADC-4C1, 1.2m, Air Circulation, Dual Activated Carbon Filters | ADC-4C1 | 264 W | 303,516 | |||
2040087 | 4.658 991 | ESCO Ascent Max Laboratory Fume Hood ADC-6C1, 1.8m, Air Circulation, Dual Activated Carbon Filters | ADC-6C1 | 339 W | 461,505 | |||
2040042 | 4.658 984 | ESCO Ascent Max Laboratory Fume Hood ADC-4B1, 1.2m, Air Circulation, Activated Carbon Filter | ADC-4B1 | 264 W | 293,908 | |||
2040069 | 4.658 990 | ESCO Ascent Max Laboratory Fume Hood ADC-5C1, 1.5m, Air Circulation, Dual Activated Carbon Filters | ADC-5C1 | 300 W | 323,093 | |||
2040078 | 4.658 986 | ESCO Ascent Max Laboratory Fume Hood ADC-6B1, 1.8m, Air Circulation, Activated Carbon Filter | ADC-6B1 | 339 W | 312,835 |
