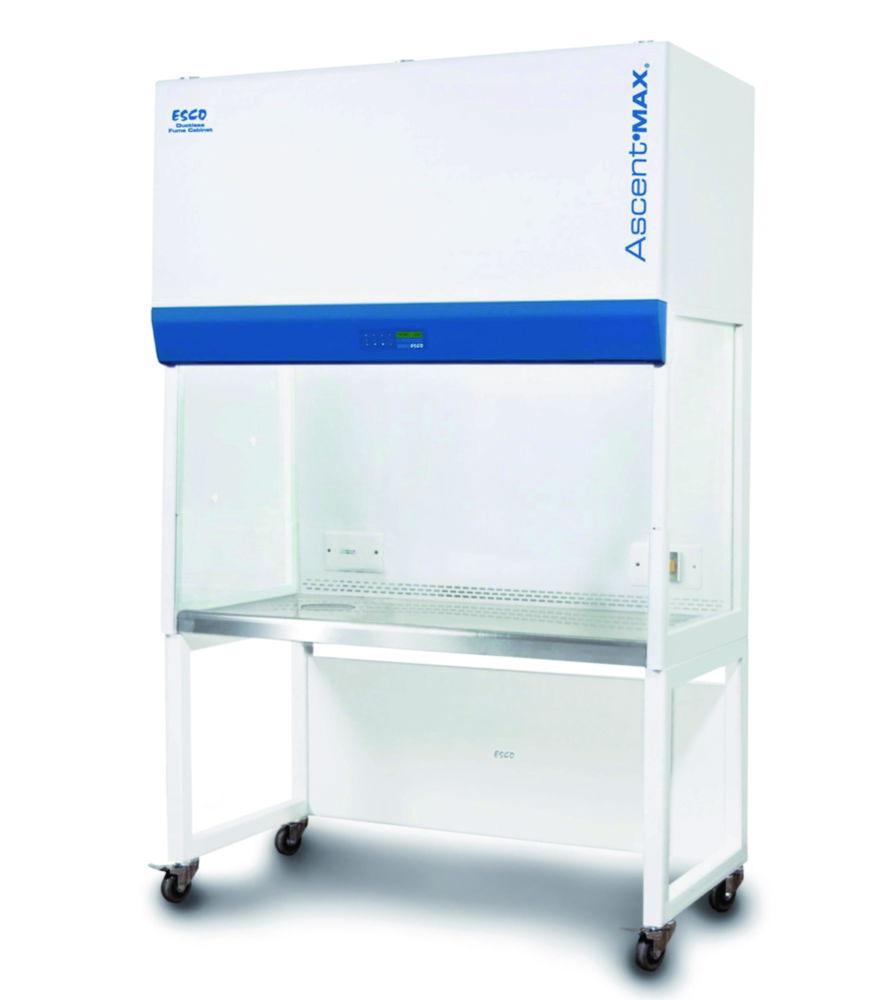

ESCO Ascent Max Laboratory Fume Hood ADC-3E1 Air Circulation, 0.9m, 1 Activated Carbon Filter + 1 HEPA Filter
Sold by: LabFriend Taiwan
Available Soon
Part #: 4.658 992Manufacturer #: 2040039
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The ESCO Ascent Max Laboratory Fume Hood ADC-3E1 is a space-saving, ductless fume hood engineered for laboratories handling hazardous substances. It features a 0.9-meter width and utilizes a combination of one activated carbon filter and one HEPA filter, delivering exceptional chemical vapor and particle filtration without the need for external ventilation.
Key Features:
- Brand: ESCO
- Model: ADC-3E1
- Filtration: 1 activated carbon filter and 1 HEPA filter
- System: Air circulation (ductless)
- Dimensions: 0.9m width; compact external footprint
- Build: Anti-microbial coated steel frame, tempered glass sides, and stainless steel worktop
- Controls: Sentinel microprocessor with airflow monitoring and alarms
- Applications: Ideal for labs needing reliable protection from chemical fumes and particulates
This fume hood provides laboratories with a dependable solution for clean, safe, and efficient air management.
Product Specifications
- HS Code #84148080
- Amperage3.5 A
- Depth int.596 mm
- Ext. dim. (WxDxH)1,035 x 736 x 1,455 mm
- Ext. depth736 mm
- Ext. height1455 mm
- Ext. width1035 mm
- Power supply frequency50 Hz
- Height int.765 mm
- Int. Dim. (WxDxH)965 x 596 x 765 mm
- Int. width965 mm
- Max. voltage240 V·AC
- Min. voltage220 V·AC
- Power supply220 ... 240 V·AC, 50 Hz , 3.5 A
- Rated capacity236 W
- TypeADC-3E1
Downloads
- Esco Ascent Series Ductless Fume Hoods Data SheetDownload
